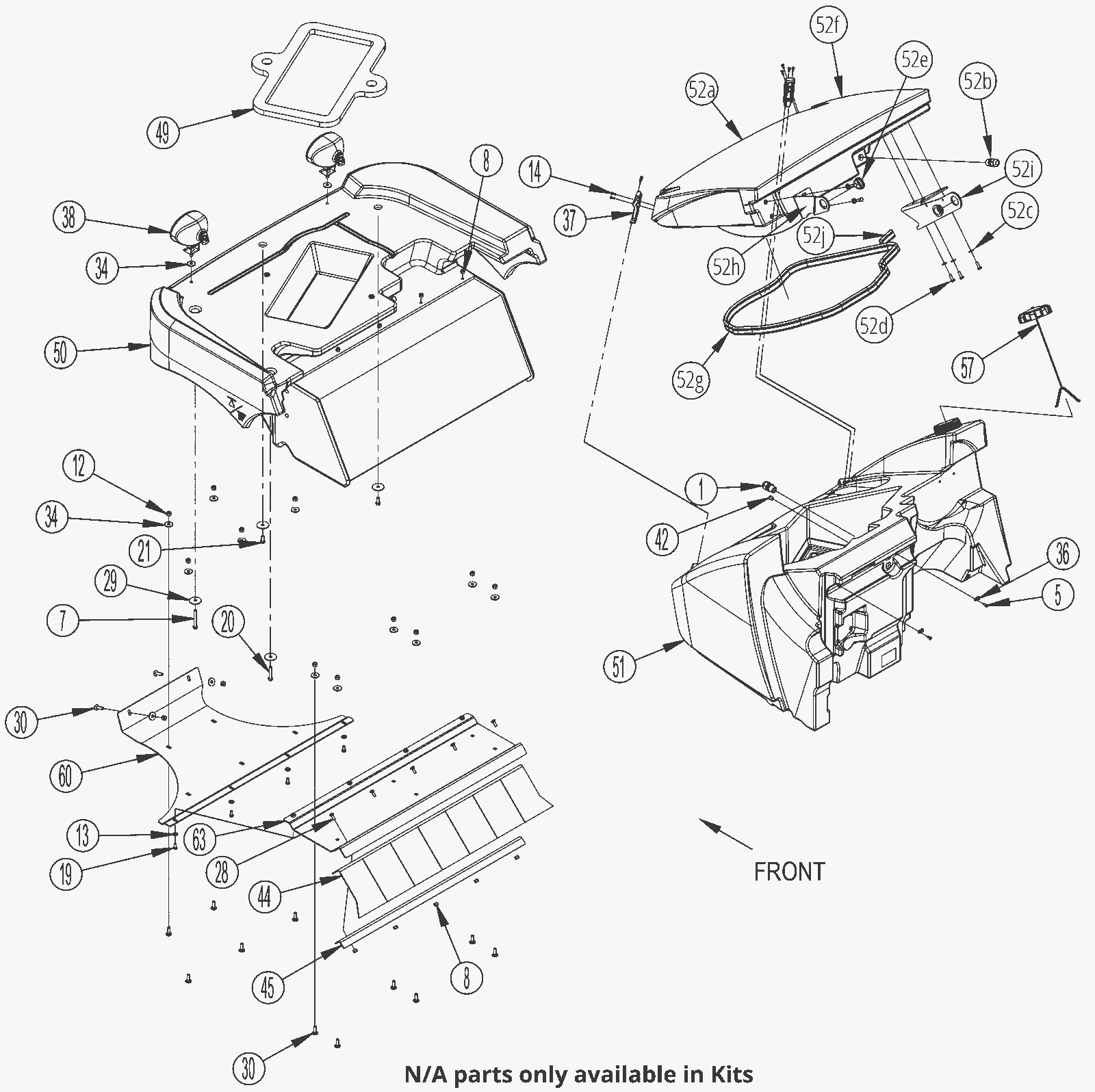

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4018
|
Strain relief |
1 |
|
|
5 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
2 |
(included in KIT4) |
|
7 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
1 |
(included in KIT4) |
|
8 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
(included in KIT3) |
|
12 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
13 |
(included in KIT2) |
|
13 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
(included in KIT2) |
|
14 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
8 |
(included in KIT1 and KIT4) |
|
19 |
N/A
|
Not available |
4 |
(screw) (only available in KIT2) |
|
20 |
N/A
|
Not available |
1 |
(screw) (only available in KIT4) |
|
21 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
3 |
(included in KIT4) |
|
28 |
N/A
|
Not available |
6 |
(screw) (only available in KIT3 and KIT4) |
|
29 |
N/A
|
Not available |
4 |
(washer) (only available in KIT4) |
|
30 |
N/A
|
Not available |
13 |
(screw) (only available in KIT2) |
|
34 |
N/A
|
Not available |
15 |
(washer) (only available in KIT2 and KIT4) |
|
36 |
372-2798
|
Tie anchor |
2 |
|
|
37 |
N/A
|
Not available |
2 |
(latch) (only available in KIT1) |
|
38a |
372-2319
|
Head light assembly |
2 |
|
|
38b |
272-7703
|
Headlight replacement bulb |
1 |
(for 38a) |
|
42 |
372-2799
|
Plug |
1 |
|
|
44 |
N/A
|
Not available |
1 |
(hopper flap) (only available in KIT3) |
|
45 |
N/A
|
Not available |
1 |
(hopper flap clamp) (only available in KIT3) |
|
49 |
372-2800
|
Hopper seal |
1 |
|
|
50 |
372-2801
|
Lower hopper |
1 |
|
|
51 |
372-2802
|
Upper hopper |
1 |
|
|
52a |
N/A
|
Not available |
1 |
(hopper cover assembly) (only available in KIT1) |
|
52b |
N/A
|
Not available |
1 |
(strain relief) (only available in KIT1) |
|
52c |
999-0123
|
Washer 1/4 SAE flat zinc plated |
5 |
(included in KIT1) |
|
52d |
N/A
|
Not available |
5 |
(screw) (only available in KIT1) |
|
52e |
N/A
|
Not available |
2 |
(bearing) (only available in KIT1) |
|
52f |
N/A
|
Not available |
1 |
(hopper cover) (only available in KIT1) |
|
52g |
N/A
|
Not available |
1 |
(hopper cover seal) (only available in KIT1) |
|
52h |
N/A
|
Not available |
1 |
(left hopper cover hinge) (only available in KIT1) |
|
52i |
N/A
|
Not available |
1 |
(right hopper cover hinge) (only available in KIT1) |
|
52j |
N/A
|
Not available |
1 |
(hopper cover seal) (only available in KIT1) |
|
57 |
372-2803
|
Vented cap with tether |
1 |
|
|
60 |
N/A
|
Not available |
1 |
(hopper skid plate) (only available in KIT2) |
|
63 |
N/A
|
Not available |
1 |
(hopper skid weldment) (only available in KIT2) |
|
KIT1 |
372-2804
|
Hopper cover kit |
1 |
(includes 14, 37, 52a-52j) |
|
KIT2 |
372-2805
|
Skid plate kit |
1 |
(includes 12-13, 19, 30, 34, 60-63) |
|
KIT3 |
372-2806
|
Hopper flap kit |
1 |
(includes 8, 28, 44-45) |
|
KIT4 |
372-2807
|
Hardware kit |
1 |
(includes 5, 7, 14, 20-21, 28-29, 34) |
|
