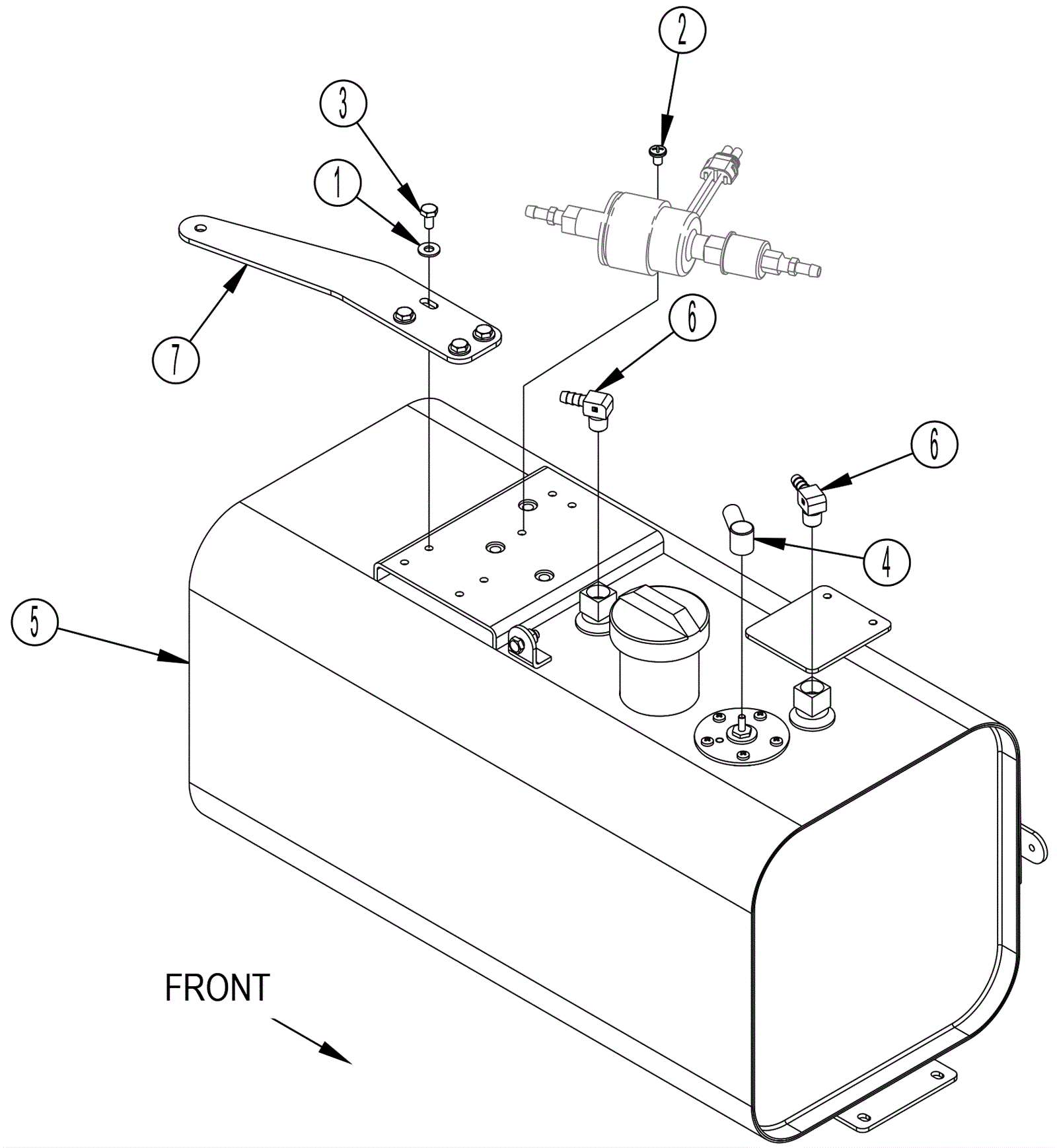

Diesel Fuel Tank Assembly

#PartDescription ReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated 4
2 272-1562 Screw 1/4-20 x 3/5 pan head thread forming 1
3 272-9677 Screw 1/4-20 x 1/2 hex head 4
4 172-2303 Rubber boot 1
5 372-1571 Fuel tank assembly 1
6 372-1569 90 degree elbow 2
7 372-2794 Tank support bracket (OBSOLETE) 1
N/S 272-7868 Fuel cap 1
N/S 372-2795 Fuel level sender 1
N/S 372-2796 Fuel withdraw tube (OBSOLETE) 1
N/S 372-2797 Fuel return tube (OBSOLETE) 1
