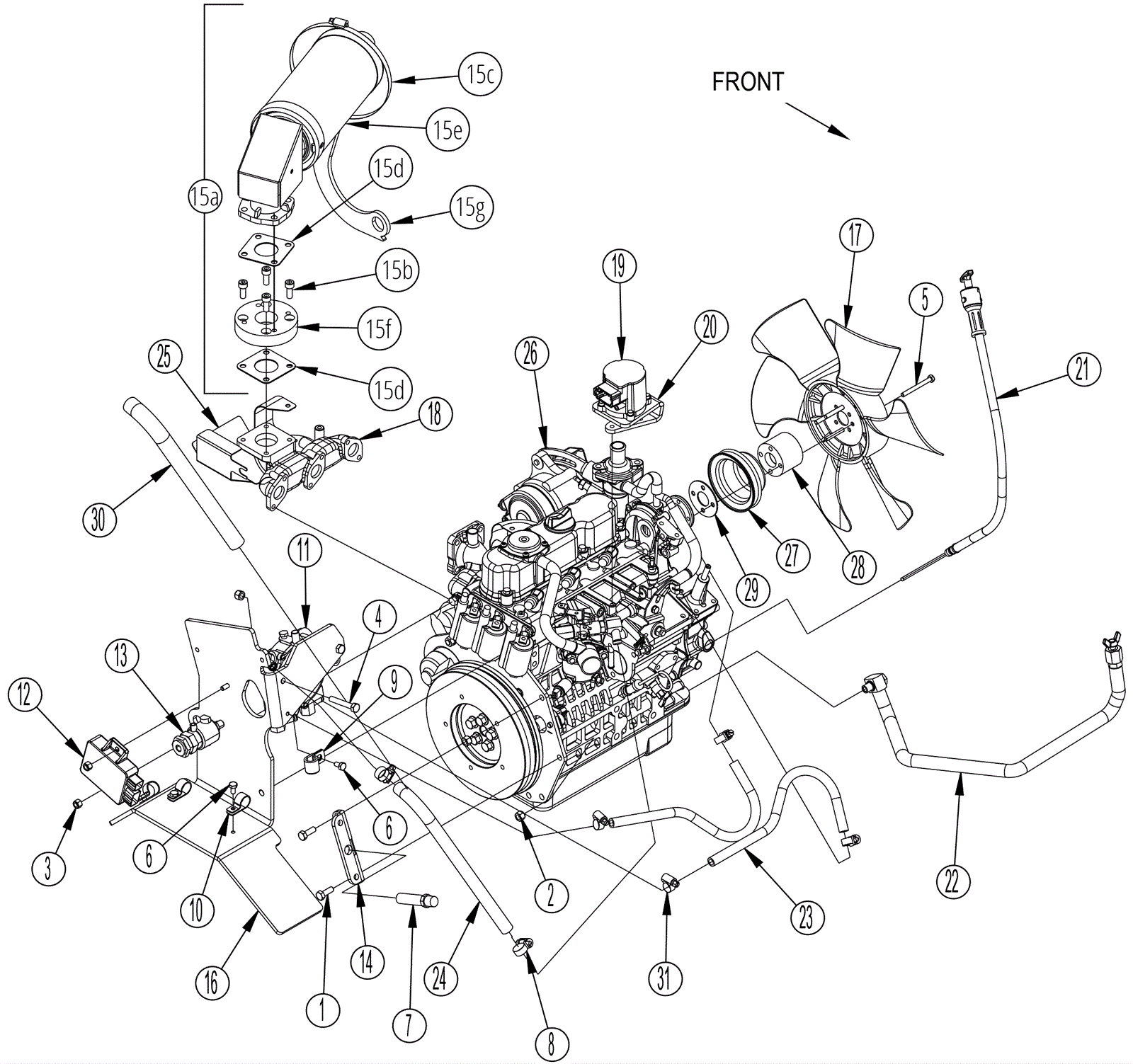

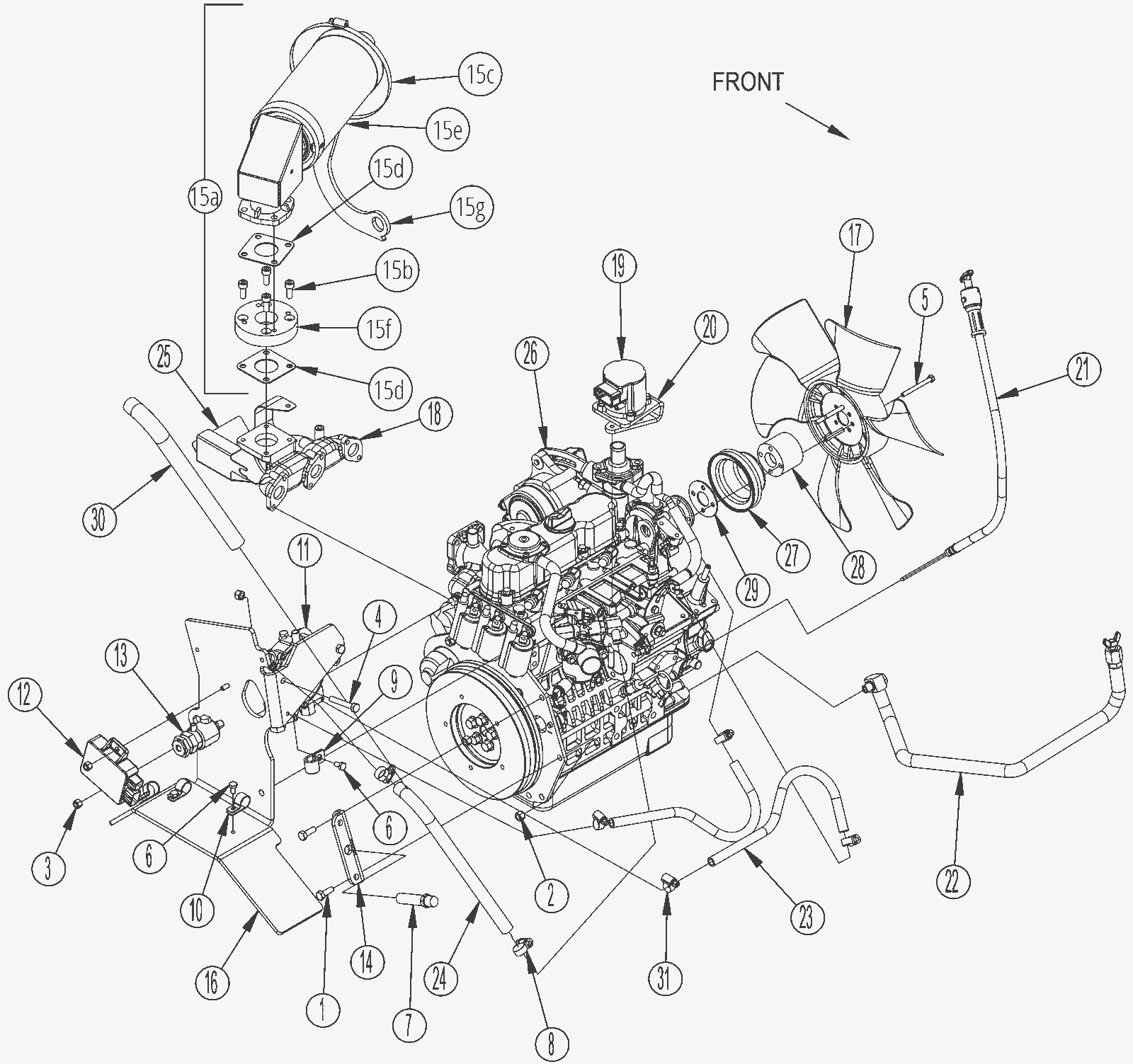

Engine Sub-Assembly

#PartDescription ReqNotesAvailability
1 181-0983 Screw 5/16-18 x 7/8 hex head 2
2 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4 (qty 2 for diesel)
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2 (LPG model)
4 999-0893 Screw 5/16-18 x 2 hex head stainless steel 2 (LPG model)
5 999-1905 Screw M6-1 x 60mm hex head zinc plated 4 (LPG model)
6 272-9677 Screw 1/4-20 x 1/2 hex head 4 (qty 3 for diesel)
7 272-7817 Speed sensor 1
8 172-8494 #6 hose clamp SAE 2 (LPG model)
9 272-3351 P clamp 1 (LPG model)
10 172-2122 P clamp 3
11 372-2135 Regulator 1 (LPG model)
12 372-2137 Spark controller 1 (LPG model)
13 372-2787 LP lock off with filter 1 (LPG model)
14 372-2769 Mag pickup bracket 1
15a N/A Not available 1 (exhaust assembly) (LPG model) (includes 15b-15g)
15b 999-9138 Screw M8-1.25 x 25mm socket head stainless steel 1 (included in KIT1) (LPG model)
15c 172-8490 #96 hose clamp SAE 1 (LPG model)
15d N/A Not available 2 (only available in KIT1) (LPG model)
15e 372-1143 Muffler 1 (LPG model)
15f 372-2770 Exhaust spacer 1 (LPG model)
15g 372-2771 Support bracket 1 (LPG model)
16 N/A Not available 1 (coil mount weldment)
17 372-2248 Fan 1
18 N/A Not available 1 (exhaust manifold)
19 372-2785 Controller governor 1 (LPG model)
20 N/A Not available 1 (governer mount bracket) (LPG model)
21 N/A Not available (dipstick assembly) (LPG model)
22a 372-2773 Remote oil drain assembly 1 (LPG model)
22b 372-2793 Drain hose assembly 1 (diesel model)
23 372-2775 Vaporizer hose 2 (LPG model)
24 372-2141 Fuel hose 1 (LPG model)
25 372-2776 Vaporizer hose 1 (LPG model)
26a 372-2784 Engine 1 (LPG model)
26b 372-2791 Engine 1 (diesel model)
27a 372-2779 Fan pulley 1 (LPG model)
27b 272-7755 89mm fan pulley 1 (diesel model)
28a 372-2780 Fan spacer 1 (LPG model)
28b 372-2781 Fan spacer 1 (diesel model)
29 372-2782 Pulley spacer 1 (LPG model)
30 372-2152 Fuel hose 1 (LPG model)
31 170-5169 Hose clamp SAE #4 4 (LPG model)
N/S 372-2783 Low fan kit 1 (diesel model)
N/S 372-2784 Engine 1 (LPG model)
N/S 272-7796 Thermostat kit 1 (LPG model)
N/S 372-2785 Controller governor 1 (LPG model)
N/S 372-1487 Engine interface harness 1
N/S 372-2786 Kubota harness 1 (LPG model)
N/S 372-2166 Ignition DF-WG972 harness 1 (LPG model)
N/S 372-2165 Plug wire/coil kit 1 (LPG model)
N/S 472-7318 SPARK PLUG WIRE KIT-CLY 1 1 (LPG model)
N/S 472-7319 SPARK PLUG WIRE KIT- CYL 2 1 (LPG model)
N/S 472-7320 SPARK PLUG WIRE KIT- CYL 3 1 (LPG model)
N/S 372-2157 Spark plug 3 (LPG model)
N/S 372-2787 LP lock off with filter 1 (LPG model)
N/S 372-2158 Starter motor 1 (LPG model)
N/S 272-7814 Temperature switch 1
N/S 372-2159 Water pump assembmly 1 (LPG model)
N/S 372-1231 Oil filter cartridge 1 (LPG model)
N/S 372-2789 Dipstick 1 (LPG model)
N/S 372-2160 Exhaust gasket donut 1 (LPG model)
N/S 472-9176 SWITCH ENGINE OIL PRESSURE 1 (LPG model)
N/S 372-1143 Muffler 1 (LPG model)
N/S 372-2790 Fan belt 1 (LPG model)
N/S 372-1560 Radiator hose 1 (LPG model)
N/S 372-1558 Air cleaner hose 1 (LPG model)
N/S 372-1559 Air cleaner hose 1
N/S 372-2791 Engine 1 (diesel model)
N/S 372-2792 Alternator 1 (diesel model)
N/S 272-7808 Fuel filter cartridge 1 (diesel model)
N/S 272-7809 Oil filter cartridge 1 (diesel model)
N/S 472-9174 ALTERNATOR BELT 1 (diesel model)
N/S 272-7747 Fan belt 1 (diesel model)
N/S 272-7796 Thermostat kit 1 (diesel model)
N/S 272-7812 Starter motor 1 (diesel model)
N/S 272-7813 Oil pressure switch 1 (diesel model)
N/S 272-7815 Throttle shut down actuator 1 (diesel model)
N/S 372-2763 Controller governor 1 (diesel model)
N/S 272-7817 Speed sensor 1 (diesel model)
N/S 372-2761 Radiator hose 1 (diesel model)
N/S 372-2762 Radiator hose 1 (diesel model)
N/S 372-2793 Drain hose assembly 1 (diesel model)
N/S 272-7818 Electronic fuel pump 1 (diesel model)
N/S 272-3327 Strainer 1 (diesel model)
N/S 372-2760 Air cleaner hose 1 (diesel model)
KIT1 372-1141 Exhaust gasket kit (OBSOLETE) 1 (includes 15b and 15d)
