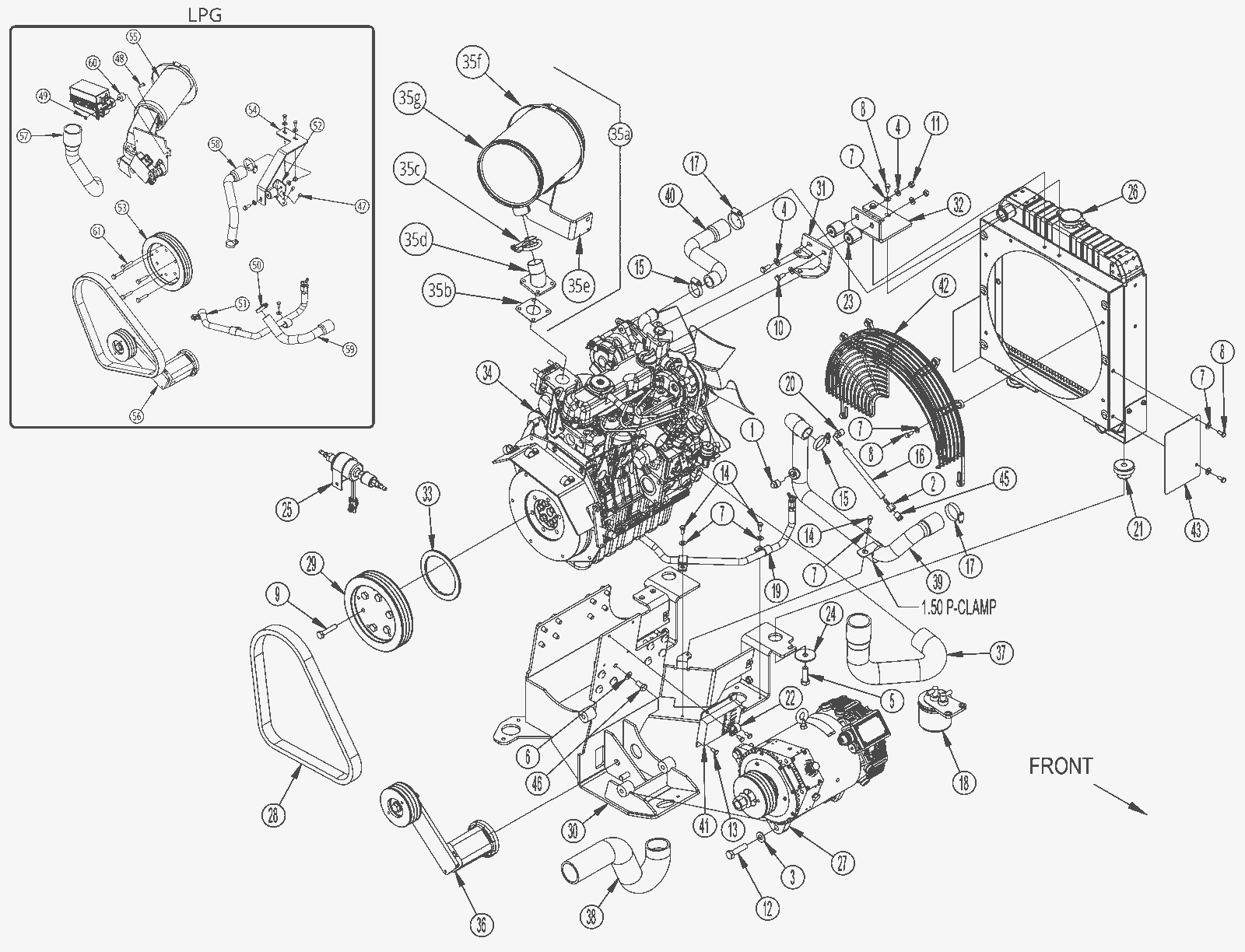

Engine Assembly

#PartDescription ReqNotesAvailability
1 372-2750 Brass plug 1 (diesel model)
2 181-1100 Female hose barb 1
3 999-0114 Washer 1/2 SAE flat 3
4 999-0024 Washer 5/16 flat stainless steel 4 (qty 2 for LPG)
5 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
6 999-0120 Washer 3/8 SAE flat 16 (qty 12 for LPG)
7 999-0123 Washer 1/4 SAE flat zinc plated 15 (qty 11 for LPG)
8 272-1465 Screw 1/4-20 X 5/8 hex head lock 12 (qty 8 for LPG)
9 172-4370 Screw M10-1.25 x 50 mm hex head 6 (diesel model)
10 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2 (qty 1 for LPG)
11 999-1424 Nut M8-1.25 hex stainless steel 2 (qty 1 for LPG)
12 472-3516 SCR HEX THD TO HD 1/2-13X2.00 3
13 272-9677 Screw 1/4-20 x 1/2 hex head 4 (diesel model)
14 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 3
15 272-7412 Hose clamp 2 (diesel model)
16 372-2751 Hose (OBSOLETE) 1
17 272-7768 Hose clamp 2
18 272-7830 Fuel filter kit 1 (diesel model)
19 272-3351 P clamp 2 (diesel model)
20 172-1337 90 degree barb 1/4 1
21 172-9852 Isolator mount 2
22 172-2122 P clamp 1 (diesel model)
23 372-1550 Engine isolator 2 (qty of 1 for LPG)
24 372-1551 Washer 2
25 272-7818 Electronic fuel pump 1 (diesel model)
26 372-2752 Radiator (OBSOLETE) 1
27a 372-1552 Alternator 1
27b 372-2753 Sheave 1 (for 27a)
27c 372-1553 Sheave 1 (LPG model)
28 372-1567 Belt 1
29 N/A Not available 1 (sheave) (diesel)
30 N/A Not available 1 (engine mount weldment) (diesel model)
31 372-2754 Radiator bracket 1 (diesel model)
32 372-2755 Radiator bracket 1 (diesel model)
33 N/A Not available 1 (spacer plate) (diesel model)
34 N/A Not available 1 (engine assembly) (diesel model)
35a N/A Not available 1 (exhaust assembly) (diesel model)
35b 272-7821 Exhaust gasket 1 (diesel model)
35c 372-1061 Muffler clamp 1 (diesel model)
35d 372-2756 Exhaust pipe weldment 1 (diesel model)
35e 372-2757 Muffler support weldment 1 (diesel model)
35f 372-2758 Hose clamp (OBSOLETE) 1 (diesel model)
35g 372-2161 Muffler 1 (diesel model)
36a N/A Not available 1 (tensioner assembly)
36b 372-1555 Automatic tensioner 1
36c 372-2759 Snap ring (OBSOLETE) 1
36d 372-1556 Bearing 1
36e 372-1557 Idler pulley kit 1
37 372-2760 Air cleaner hose 1 (diesel model)
38 372-1559 Air cleaner hose 1
39 372-2761 Radiator hose 1 (diesel model)
40 372-2762 Radiator hose 1 (diesel model)
41 372-2763 Controller governor 1 (diesel model)
42a 372-2764 Fan guard assembly 1 (diesel model)
42b 372-1562 LPG fan guard assembly 1 (LPG model)
43 372-2765 Guard plate 2 (diesel model)
45 372-1564 Pipe plug 1
46 372-1024 Screw M10-1.25 x 20mm 16 (diesel model)
47 999-9116 Screw M6-1 x 12mm hex head stainless steel 2 (LPG model)
48 999-1383 Screw M6-1 x 16mm hex head stainless steel 2 (LPG model)
49 999-1308 Nut M6-1 hex stainless steel 2 (LPG model)
50 997-2005 Hose clamp 2 (LPG model)
51 272-1587 Clamp hose support (OBSOLETE) 3 (LPG model)
52 N/A Not available 1 (upper radiator mount bracket) (LPG model)
53 N/A Not available 1 (sheave) (LPG model)
54 372-1554 Radiator bracket 1 (LPG model)
55 N/A Not available 1 (engine assembly) (LPG model)
57 372-1558 Air cleaner hose 1 (LPG model)
58 372-1560 Radiator hose 1 (LPG model)
59 372-1561 Radiator hose 1 (LPG model)
60 372-1563 Relay box isolator 2 (LPG model)
61 372-1064 Screw M8-1.25 x 40mm 5 (LPG model)
N/S 372-2767 Kubota harness 1 (diesel model)
N/S 372-2166 Ignition DF-WG972 harness 1 (LPG model)
