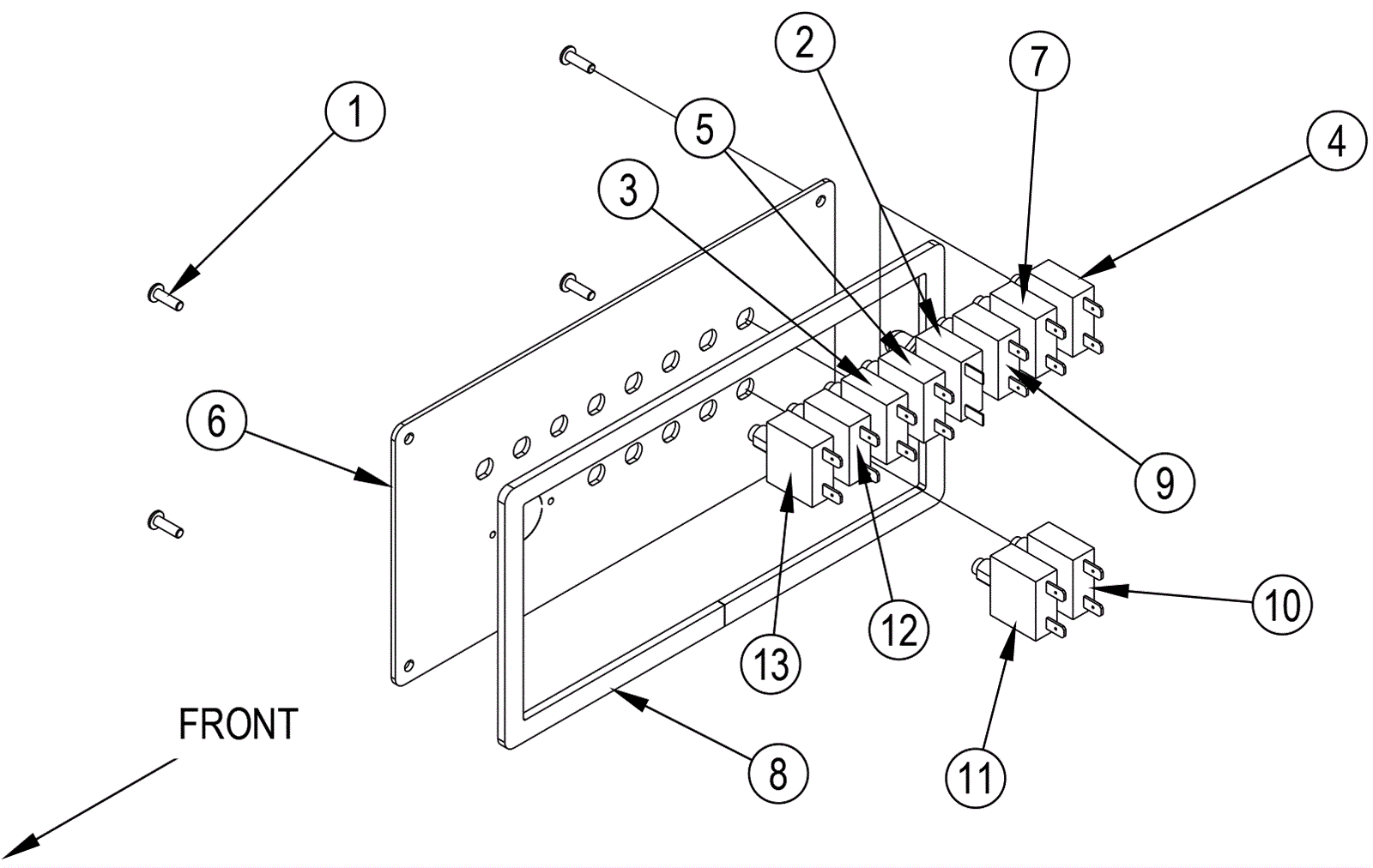

CS 7000 Circuit Breaker Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 4 ships same day
2 991-1628 5amp circuit breaker $13.76 1 usually ships 17-28 days
3 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
4 272-7727 20amp circuit breaker $29.23 1 ships same day
5 272-9374 10amp circuit breaker $24.60 1 usually ships 17-28 days
6 372-1510 Circuit breaker panel $51.80 1 usually ships 17-28 days
7 272-6708 25amp circuit breaker $19.98 1 ships same day
8 372-1511 Panel gasket $9.26 1 usually ships 17-28 days
9 272-6708 25amp circuit breaker $19.98 1 ships same day
10 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
11 272-6708 25amp circuit breaker $19.98 1 ships same day
12 272-6708 25amp circuit breaker $19.98 1 ships same day
13 272-6708 25amp circuit breaker $19.98 1 ships same day
