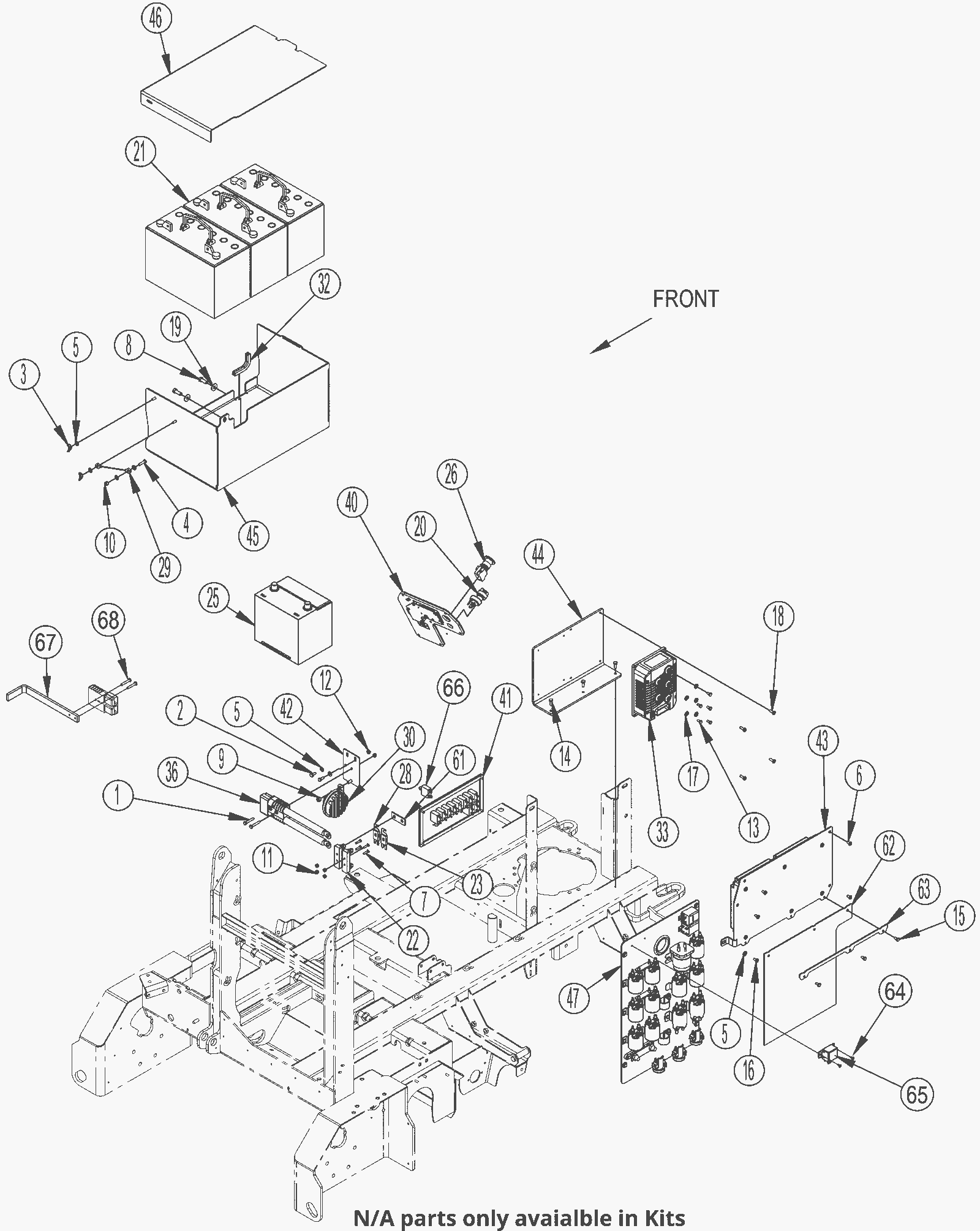

Electrical System Assembly

#PartDescription ReqNotesAvailability
1 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 2 (included in KIT1, KIT2 and KIT3)
2 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2 (included in KIT1, KIT2 and KIT3)
3 999-0603 Nut 1/4-20 wing stainless steel 2 (LPG and diesel) (included in KIT2 and KIT3)
4 N/A Not available 1 (screw) (LPG and diesel) (included in KIT2 and KIT3)
5 999-0123 Washer 1/4 SAE flat zinc plated 7 (qty 3 for battery model) (included in KIT1, KIT2 and KIT3)
6 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4 (included in KIT1, KIT2 and KIT3)
7 N/A Not available 4 (screw) (only available in KIT1, KIT2 and KIT3)
8 999-1531 Screw 3/8-16 x 1 hex washer head zinc plated 2 (LPG and diesel) (included in KIT2 and KIT3)
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1 (included in KIT1, KIT2 and KIT3)
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1 (LPG and diesel) (included in KIT2 and KIT3)
11 N/A Not available 4 (nut) (only available in KIT1, KIT2 and KIT3)
12 N/A Not available 2 (nut) (only available in KIT1, KIT2 and KIT3)
13 999-9116 Screw M6-1 x 12mm hex head stainless steel 5 (included in KIT1, KIT2 and KIT3)
14 N/A Not available 3 (screw) (only available in KIT1, KIT2 and KIT3)
15 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 3 (included in KIT1, KIT2 and KIT3)
16 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 1 (included in KIT1, KIT2 and KIT3)
17 N/A Not available 5 (washer) (only available in KIT1, KIT2 and KIT3)
18 999-1058 Screw 1/4-20 x 3/4 pan head thread rolling phillips 4 (included in KIT1, KIT2 and KIT3)
19 N/A Not available 2 (washer) (LPG and diesel) (only available in KIT2 and KIT3)
20 272-7714 Key switch assembly 1
21 162-6022 12V 102Ah gel battery (SNSR) 3 (LPG and diesel) (OEM)
22 272-9750 Fuse block 2
23 472-5774 FUSE 400 AMP 1
25 472-7303 BATTERY-12V 45AH WET 1 (diesel model)
26 172-9233 Emergency stop button 1
28 172-8836 150amp fuse 1
29 472-8620 WIRE ROPE ASSY 1 (LPG and diesel)
30 172-9432 36V horn 1
32 372-1509 Edge trim 1 (LPG and diesel)
33 372-1508 Traction controller kit 1
36 372-1475 Main power cable assembly 1
40 372-2723 User interface panel assembly (OBSOLETE) 1
41 N/A Not available 1 (circuit breaker panel assembly)
42 372-1480 Connector mount bracket 1
43 372-1482 Control board kit 1
44 372-1484 Control mount panel 1
45 372-1485 Battery box weldment 1 (LPG and diesel)
46 372-1486 Battery cover 1 (LPG and diesel)
47 N/A Not available 1 (contactor panel assembly)
61 372-1499 Fuse bar 1
62 372-1500 Cover 1
63 372-2724 Strap (OBSOLETE) 1
64 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 2 (diesel model) (included in KIT3)
65 272-7725 12V 75amp relay 1 (diesel model)
66 372-1502 40amp circuit breaker (OBSOLETE) 1 (diesel model)
67 372-1503 Disconnect bar 1 (diesel model)
68 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel 2 (diesel model) (included in KIT2 and KIT3)
N/S 172-0223 Battery cable boot 6
N/S 172-8828 Battery cable 2
N/S 172-8964 Terminal insulator 8
N/S 372-1474 Main harness 1
N/S 372-2725 Hopper harness (OBSOLETE) 1
N/S 372-1477 Alternator cable assembly 1
N/S 372-1478 Starter battery cable assembly 1
N/S 372-1479 Vacuum harness 1
N/S 372-1487 Engine interface harness 1
N/S 372-1489 13 3/4 inch u 1 awg cable 1
N/S 372-1490 16 inch v 1 awg cable 1
N/S 372-1491 19 inch w 1 awg cable 1
N/S 372-1492 52 1/4 inch 1 awg cable 1
N/S 372-1493 7 inch 4 awg cable 1
N/S 372-1494 46 1/2 inch 1 awg cable 1
N/S 372-2726 Cable 1 awg x 31.25 (OBSOLETE) 1
N/S 372-2727 Cable 1 awg x 46.75 (OBSOLETE) 1
N/S 372-1495 7 3/4 inch 4 awg cable 1
N/S 372-1496 9 inch 6 awg cable 1
N/S 372-1497 29 1/4 inch 1 awg cable 1
N/S 372-1498 26 1/2 inch 1 awg cable 1
N/S 372-2728 Glow plug harness (OBSOLETE) 1 (diesel model)
KIT1 372-1505 Electric system battery hardware kit 1 (includes 1-2, 5-7, 9, 11-18)
KIT2 372-1506 Electric system LPG hardware kit 1 (includes 1-19, 68)
KIT3 372-1507 Electric system diesel hardware kit 1 (includes 1-19, 64, 68)
