| # | Part | Description |
Req | Notes | Availability |
|---|

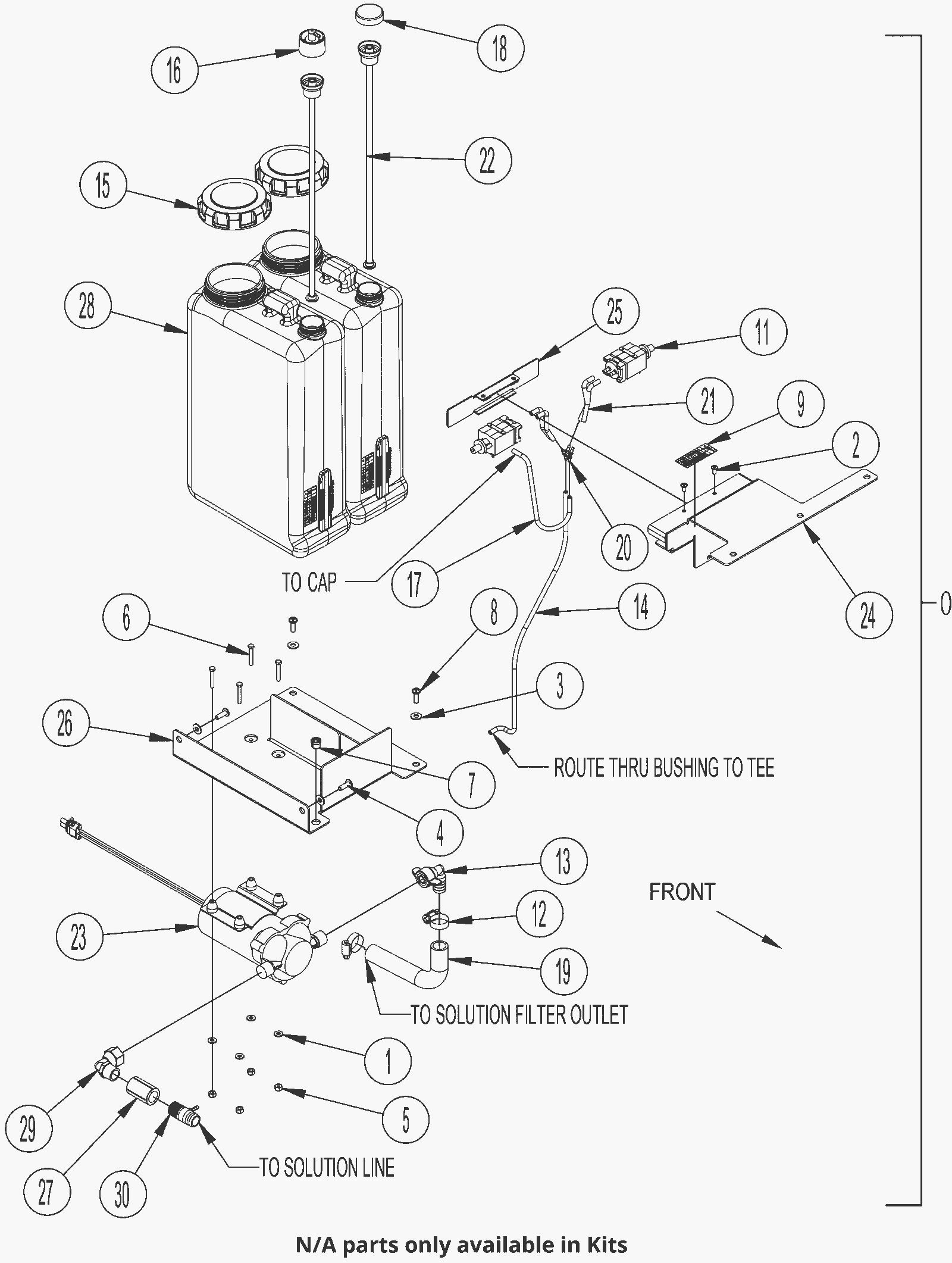

0 |
372-2722
|
Onboard chemical assembly |
1 |
(includes 1-30) |
|
1 |
999-1862
|
Washer #10 flat SAE stainless steel |
4 |
(included in KIT2) |
|
2 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
2 |
(included in KIT2) |
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
(included in KIT2) |
|
4 |
999-0456
|
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
2 |
(included in KIT2) |
|
5 |
N/A
|
Not available |
4 |
(nut) (only available in KIT2) |
|
6 |
999-1477
|
Screw 10-24 x 1 1/4 hex head stainless steel |
4 |
(included in KIT2) |
|
7 |
N/A
|
Not available |
1 |
(bushing) (only available in KIT2) |
|
8 |
N/A
|
Not available |
2 |
(screw) (only available in KIT2) |
|
9 |
N/A
|
Not available |
1 |
(chemical ration decal) (only available in KIT2) |
|
11 |
N/A
|
Not available |
2 |
(detergent pump) (only available in KIT1) |
|
12 |
N/A
|
Not available |
2 |
(hose clamp) (only available in KIT3) |
|
13 |
N/A
|
Not available |
1 |
(elbow) (only available in KIT3) |
|
14 |
N/A
|
Not available |
1 |
(chemical resistant hose) (only available in KIT1) |
|
15 |
N/A
|
Not available |
2 |
(raw cap) (only available in KIT4) |
|
16 |
N/A
|
Not available |
1 |
(dry break cap) (only available in KIT4) |
|
17 |
N/A
|
Not available |
1 |
(chemical resistant hose) (only available in KIT1) |
|
18 |
N/A
|
Not available |
1 |
(cap) (only available in KIT4) |
|
19 |
N/A
|
Not available |
1 |
(spiral hose) (only available in KIT3) |
|
20 |
N/A
|
Not available |
2 |
(y barb fitting) (only available in KIT1) |
|
21 |
N/A
|
Not available |
4 |
(chemical resistant hose) (only available in KIT1) |
|
22 |
N/A
|
Not available |
2 |
(dry break insert) (only available in KIT4) |
|
23 |
272-5716
|
Solution control pump |
1 |
|
|
24 |
N/A
|
Not available |
1 |
(pump mount weldment) (only available in KIT2) |
|
25 |
N/A
|
Not available |
1 |
(cover weldment) (only available in KIT2) |
|
26 |
N/A
|
Not available |
1 |
(pump support weldment) (only available in KIT2) |
|
27 |
N/A
|
Not available |
1 |
(coupling) (only available in KIT3) |
|
28 |
N/A
|
Not available |
2 |
(chemical bottle assembly) (only available in KIT4) |
|
29 |
N/A
|
Not available |
1 |
(elbow) (only available in KIT3) |
|
30 |
N/A
|
Not available |
1 |
(tee) (only available in KIT3) |
|
KIT1 |
372-1469
|
Detergent pump kit |
1 |
(includes 11, 14, 17, 20-21) |
|
KIT2 |
372-1470
|
Bracket hardware kit |
1 |
(includes 1-9, 24-26) |
|
KIT3 |
372-1471
|
Hose fitting kit |
1 |
(includes 12-13, 19, 27, 29-30) |
|
KIT4 |
372-1472
|
Chemical bottle kit |
1 |
(includes 15-16, 18, 22, 28) |
|
