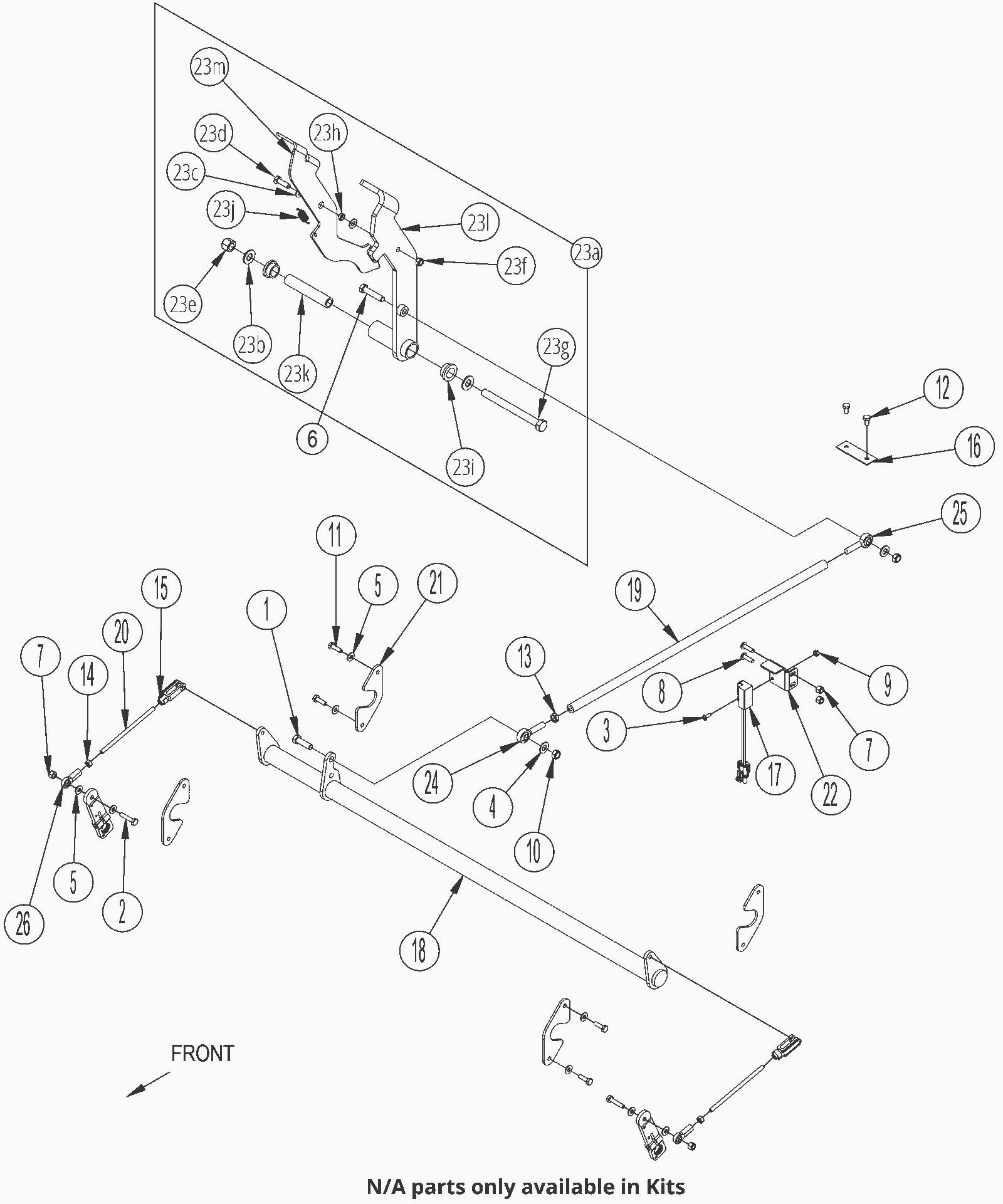

CS 7000 Brake Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (screw) (only available in KIT2) usually ships 3-26 days
2 N/A Not available Call for price 2 (screw) (only available in KIT2) usually ships 3-26 days
3 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 (included in KIT2) ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 2 (included in KIT1 and KIT2) ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 (included in KIT2) ships same day
6 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 (included in KIT1) ships same day
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 (included in KIT2) ships same day
8 999-1136 Screw 1/4-20 x 7/8 pan head phillips stainless steel $0.99 2 (included in KIT2) usually ships 1-5 days
9 N/A Not available Call for price 1 (nut) (only available in KIT2) usually ships 3-26 days
10 N/A Not available Call for price 2 (nut) (only available in KIT1 and KIT2) usually ships 3-26 days
11 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 4 (included in KIT2) ships same day
12 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 2 (included in KIT1) ships same day
13 999-0169 Nut 3/8-24 hex jam plain finish $0.99 1 (included in KIT2) ships same day
14 N/A Not available Call for price 2 (nut) (only available in KIT2) usually ships 3-26 days
15 472-4292 YOKE CLEVIS $93.13 2 usually ships 16-41 days
16 272-7653 Brake lock catch $35.48 1 usually ships 1-5 days
17 272-8850 Proximity sensor $149.70 1 usually ships 16-41 days
18 372-1450 Weldment brake bar $129.36 1 usually ships 16-41 days
19 372-1451 Brake rod $46.62 1 usually ships 16-41 days
20 372-1452 Brake rod $19.09 2 usually ships 16-41 days
21 372-1453 Pivot brake $9.60 4 usually ships 16-41 days
22 372-1454 Switch mount bracket $15.00 1 usually ships 16-41 days
23a N/A Not available Call for price 1 (brake pedal assembly) (includes 6, 23b-23m) (only available in KIT1) usually ships 3-26 days
23b 999-0114 Washer 1/2 SAE flat $0.99 2 (included in KIT1) ships same day
23c 999-9004 Washer 5/16 SAE flat stainless steel $1.69 2 (included in KIT1) ships same day
23d 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 (included in KIT1) ships same day
23e N/A Not available Call for price 1 (nut) (only available in KIT1) usually ships 3-26 days
23f N/A Not available Call for price 1 (nut) (only available in KIT1) usually ships 3-26 days
23g N/A Not available Call for price 1 (screw) (only available in KIT1) usually ships 3-26 days
23h N/A Not available Call for price 1 (bushing) (only available in KIT1) usually ships 3-26 days
23i N/A Not available Call for price 2 (bearing) (only available in KIT1) usually ships 3-26 days
23j N/A Not available Call for price 1 (extension spring) (only available in KIT1) usually ships 3-26 days
23k N/A Not available Call for price 1 (bushing) (only available in KIT1) usually ships 3-26 days
23l N/A Not available Call for price 1 (brake pedal weldment) (only available in KIT1) usually ships 3-26 days
23m N/A Not available Call for price 1 (park brake pedal) (only available in KIT1) usually ships 3-26 days
24 372-1455 Right hand rod end $34.19 1 usually ships 16-41 days
25 372-1456 Left hand rod end $36.77 1 usually ships 16-41 days
26 272-5619 Female rod end $24.47 2 usually ships 1-5 days
KIT1 372-1457 Brake pedal kit $502.17 1 (includes 4, 6, 10, 12, 16, 23a-23m) usually ships 16-41 days
KIT2 372-1458 Brake linkage hardware kit $142.40 1 (includes 1-5, 7-11, 13-14) usually ships 16-41 days
