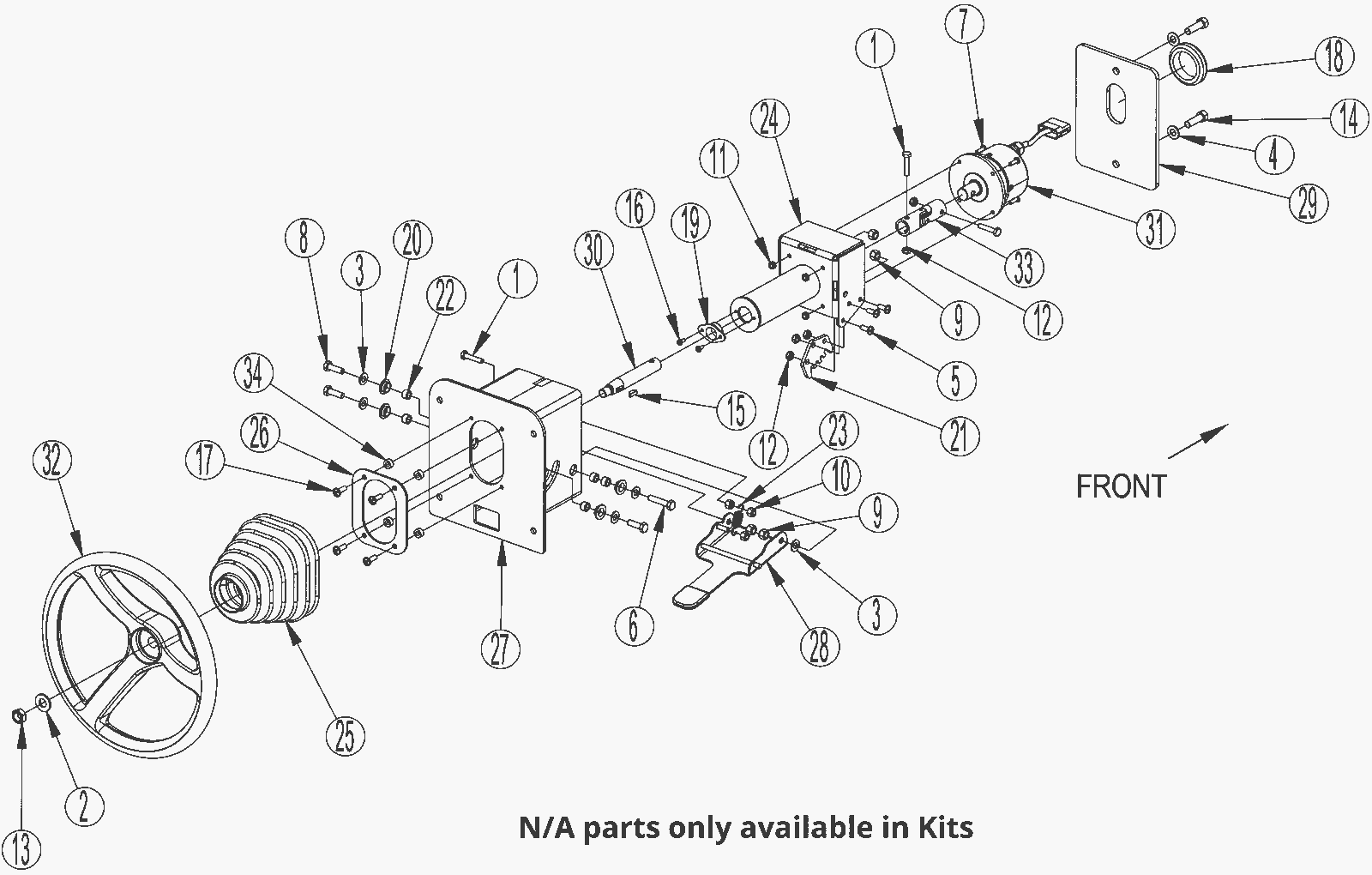

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
3 |
(screw) (only available in KIT1 and KIT4) |
|
2 |
999-0114
|
Washer 1/2 SAE flat |
1 |
(included in KIT1) |
|
3 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
5 |
(included in KIT4) |
|
4 |
999-0120
|
Washer 3/8 SAE flat |
2 |
(included in KIT2) |
|
5 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
3 |
(included in KIT3) |
|
6 |
N/A
|
Not available |
1 |
(screw) (only available in KIT4) |
|
7 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
(included in KIT3) |
|
8 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
3 |
(included in KIT4) |
|
9 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
(included in KIT3 and KIT4) |
|
10 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
(included in KIT4) |
|
11 |
N/A
|
Not available |
4 |
(nut) (only available in KIT3) |
|
12 |
N/A
|
Not available |
5 |
(nut) (only available in KIT1 and KIT3) |
|
13 |
N/A
|
Not available |
1 |
(nut) (only available in KIT1) |
|
14 |
N/A
|
Not available |
2 |
(screw) (only available in KIT2) |
|
15 |
N/A
|
Not available |
1 |
(key) (only available in KIT1) |
|
16 |
999-1131
|
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
(included in KIT3) |
|
17 |
999-1058
|
Screw 1/4-20 x 3/4 pan head thread rolling phillips |
4 |
(included in KIT5) |
|
18 |
N/A
|
Not available |
1 |
(grommet) (only available in KIT2) |
|
19 |
N/A
|
Not available |
1 |
(bushing) (only available in KIT3) |
|
20 |
N/A
|
Not available |
4 |
(flange bearing) (only available in KIT4) |
|
21 |
N/A
|
Not available |
1 |
(steering column ratchet) (only available in KIT3) |
|
22 |
N/A
|
Not available |
5 |
(bushing) (only available in KIT4) |
|
23 |
N/A
|
Not available |
1 |
(extension spring) (only available in KIT4) |
|
24 |
N/A
|
Not available |
1 |
(tilt-steering weldment) (only available in KIT3) |
|
25 |
N/A
|
Not available |
1 |
(steering boot) (only available in KIT5) |
|
26 |
N/A
|
Not available |
1 |
(boot holder plate) (only available in KIT5) |
|
27 |
N/A
|
Not available |
1 |
(steering mount weldment) (only available in KIT4) |
|
28 |
N/A
|
Not available |
1 |
(tilt lever weldment) (only available in KIT4) |
|
29 |
N/A
|
Not available |
1 |
(steering clamp plate) (only available in KIT2) |
|
30 |
N/A
|
Not available |
1 |
(steering shaft) (only available in KIT1) |
|
31 |
372-1443
|
Torque feedback device (OBSOLETE) |
1 |
|
|
32 |
272-8887
|
Steering wheel |
1 |
|
|
33 |
372-1444
|
Universal joint |
1 |
|
|
34 |
N/A
|
Not available |
4 |
(spacer) (only available in KIT4) |
|
KIT1 |
372-1445
|
Steering shaft kit |
1 |
(includes 1-2, 12-13, 15, 30) |
|
KIT2 |
372-1446
|
Steering clamp plate kit |
1 |
(includes 4, 14, 18, 29) |
|
KIT3 |
372-1447
|
Steering column kit |
1 |
(includes 5, 7, 9, 11-12, 16, 19, 21, 24) |
|
KIT4 |
372-1448
|
Steering housing kit |
1 |
(includes 1, 3, 6, 8-10, 20, 22-23, 27-28) |
|
KIT5 |
372-1449
|
Steering boot kit |
1 |
(includes 17, 25-26, 34) |
|
