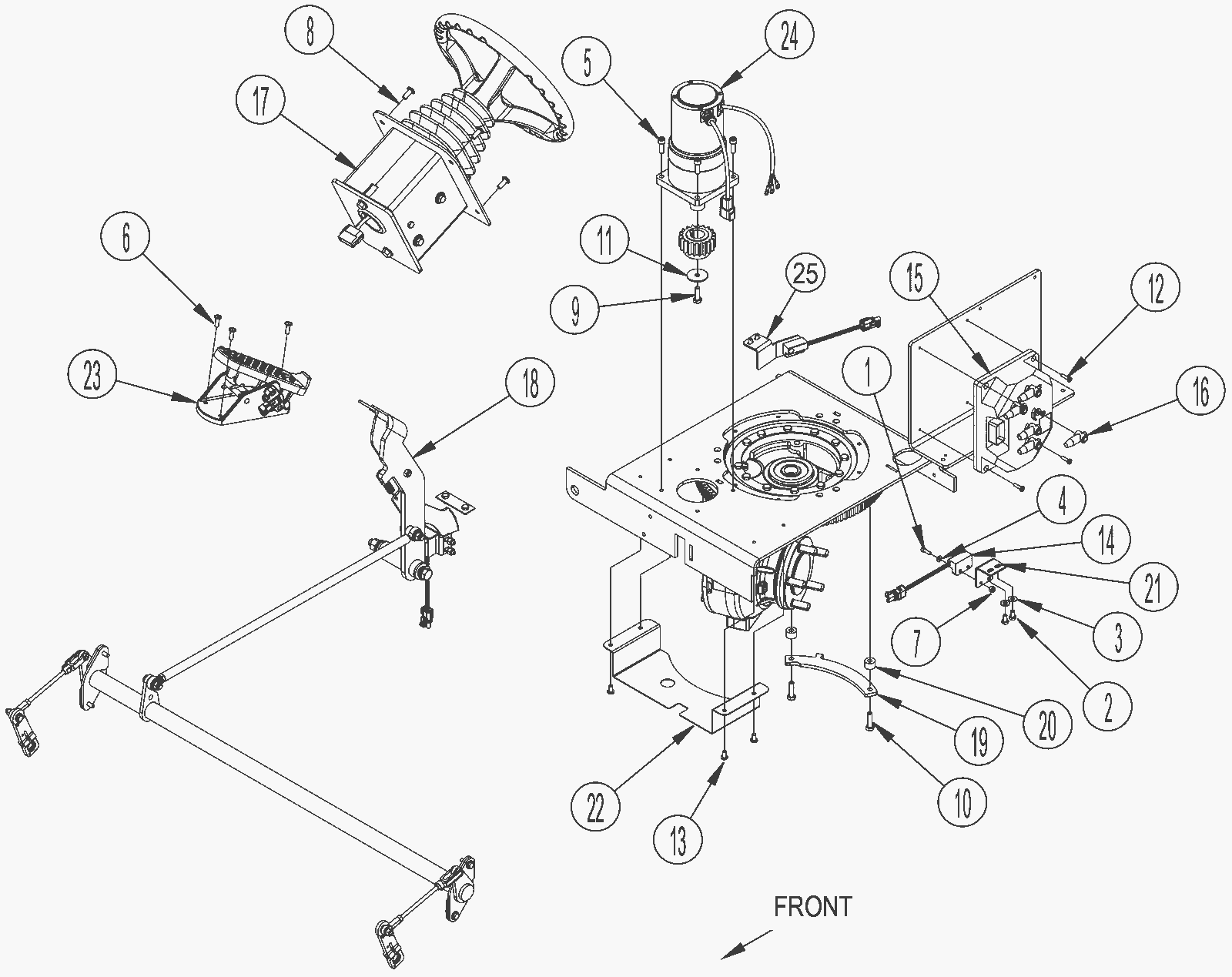

Control System Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 2 (screw) (only available in KIT2)
2 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4 (included in KIT2)
3 999-0123 Washer 1/4 SAE flat zinc plated 4 (included in KIT2)
4 999-0412 Washer #8 SAE flat 2 (included in KIT2)
5 999-0005 Screw 5/16-18 x 7/8 socket head 4 (included in KIT2)
6 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 3 (included in KIT1)
7 N/A Not available 2 (nut) (only available in KIT2)
8 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel 4 (included in KIT2)
9 N/A Not available 1 (screw) (only available in KIT2)
10 N/A Not available 2 (screw) (only available in KIT2)
11 N/A Not available 1 (washer) (only available in KIT2)
12 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 4 (included in KIT2)
13 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4 (included in KIT2)
14 272-8850 Proximity sensor 2
15 372-1439 Steering controller 1
16 172-9147 Terminal insulator 5
17 372-2718 Tilt steering assembly (OBSOLETE) 1
18 N/A Not available 1 (brake linkage assembly)
19 372-1440 Steering cam 1
20 372-1441 Spacer 2
21 372-3099 Sensor mounting bracket 1
22 372-1442 Splash shield 1
23 N/A Not available 1 (foot pedal assembly) (only available in KIT1)
24 472-7286 MOTOR STEERING 36V 1
25 372-2720 Sensor mounting bracket (OBSOLETE) 1
KIT1 372-1437 Foot pedal kit 1 (includes 6 and 23)
KIT2 372-1438 Control system hardware kit 1 (includes 1-5, 7-13)
