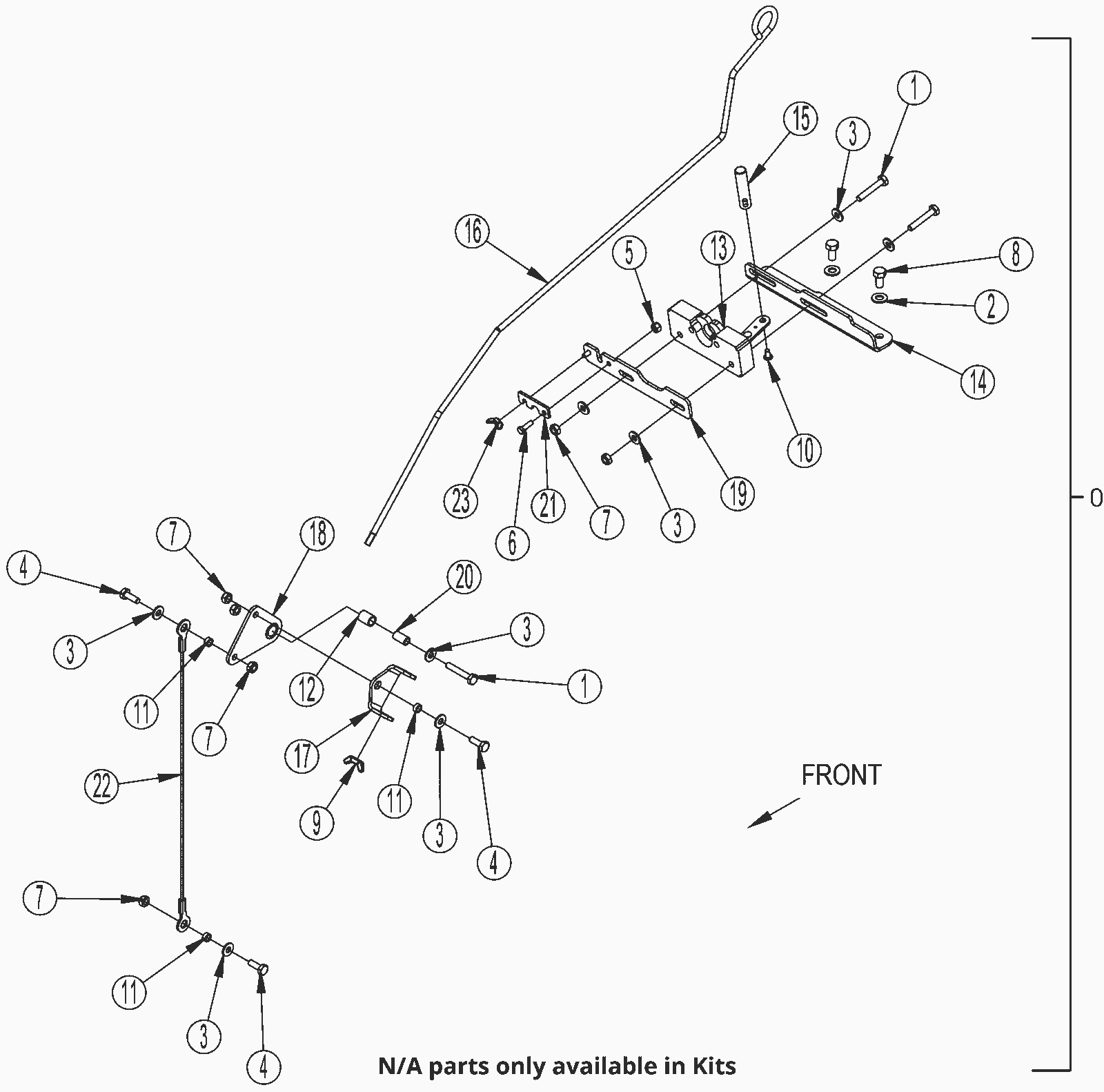

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
372-1404
|
Pull rod assembly |
1 |
(includes 1-23) |
|
1 |
999-1260
|
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
3 |
(included in KIT1 and KIT2) |
|
2 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
2 |
(included in KIT1) |
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
(included in KIT1 and KIT2) |
|
4 |
N/A
|
Not available |
3 |
(screw) (only available in KIT2) |
|
5 |
N/A
|
Not available |
1 |
(nut) (only available in KIT1) |
|
6 |
999-1231
|
Screw 10-24 x 5/8 hex head stainless steel |
1 |
(included in KIT1) |
|
7 |
N/A
|
Not available |
6 |
(nut) (only available in KIT1 and KIT2) |
|
8 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
2 |
(included in KIT1) |
|
9 |
999-1948
|
Nut 1/4-20 wing lock |
1 |
(included in KIT2) |
|
10 |
999-1866
|
Screw 10-24 x 3/8 pan head phillips nylon stainless steel |
1 |
(included in KIT1) |
|
11 |
N/A
|
Not available |
3 |
(bushing) (only available in KIT2) |
|
12 |
N/A
|
Not available |
1 |
(bearing) (only available in KIT2) |
|
13 |
472-6058
|
LATCH LH |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(latch bracket) (only available in KIT1) |
|
15 |
N/A
|
Not available |
1 |
(pin) (only available in KIT1) |
|
16 |
372-1436
|
Pull rod |
1 |
|
|
17 |
N/A
|
Not available |
1 |
(yoke) (only available in KIT2) |
|
18 |
N/A
|
Not available |
1 |
(pivot weldment) (only available in KIT2) |
|
19 |
N/A
|
Not available |
1 |
(pull rod bracket) (only available in KIT1) |
|
20 |
N/A
|
Not available |
1 |
(bushing) (only available in KIT2) |
|
21 |
N/A
|
Not available |
1 |
(pull rod retainer) (only available in KIT1) |
|
22 |
N/A
|
Not available |
1 |
(cable assembly) (only available in KIT2) |
|
23 |
999-1968
|
Nut 10-24 wing stainless steel |
1 |
(included in KIT1) |
|
KIT1 |
372-1433
|
Engine cover latch kit |
1 |
(includes 1-3, 5-8, 10, 13-15, 19, 21, 23) |
|
KIT2 |
372-1434
|
Pull rod pivot kit |
1 |
(includes 1, 3-4, 7, 9, 11-12, 17-18, 20, 22) |
|
