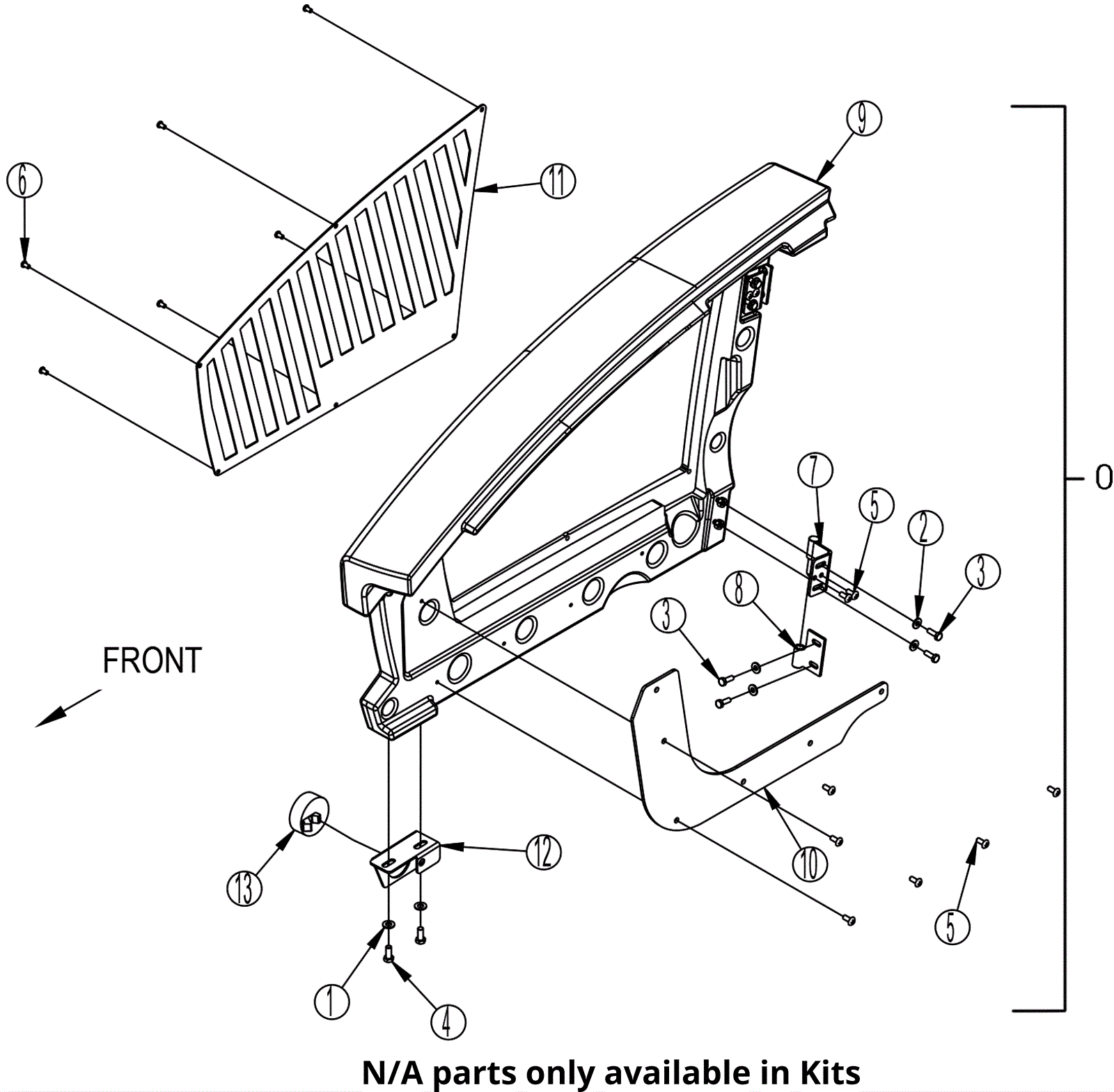

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
372-2707
|
Right hand door assembly |
1 |
(includes 1-13) |
|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
2 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
(included in KIT1) |
|
3 |
N/A
|
Not available |
8 |
(screw) (included in KIT1) |
|
4 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
5 |
N/A
|
Not available |
10 |
(screw) (included in KIT1) |
|
6 |
999-1833
|
Screw 10-14 x 3/8 pan head phillips stainless steel |
6 |
|
|
7 |
N/A
|
Not available |
2 |
(upper hinge weldment) (only available in KIT1) |
|
8 |
N/A
|
Not available |
2 |
(lower hinge weldment) (only available in KIT1) |
|
9 |
372-2713
|
Right hand door |
1 |
|
|
10 |
372-2714
|
Side door stiffener |
1 |
|
|
11 |
372-1429
|
Right hand grille |
1 |
|
|
12 |
372-2715
|
Latch bracket |
1 |
|
|
13 |
372-2716
|
Door latch |
1 |
|
|
KIT1 |
372-1430
|
Right hand hinge kit |
1 |
(includes 2-3, 5, 7-8) |
|
