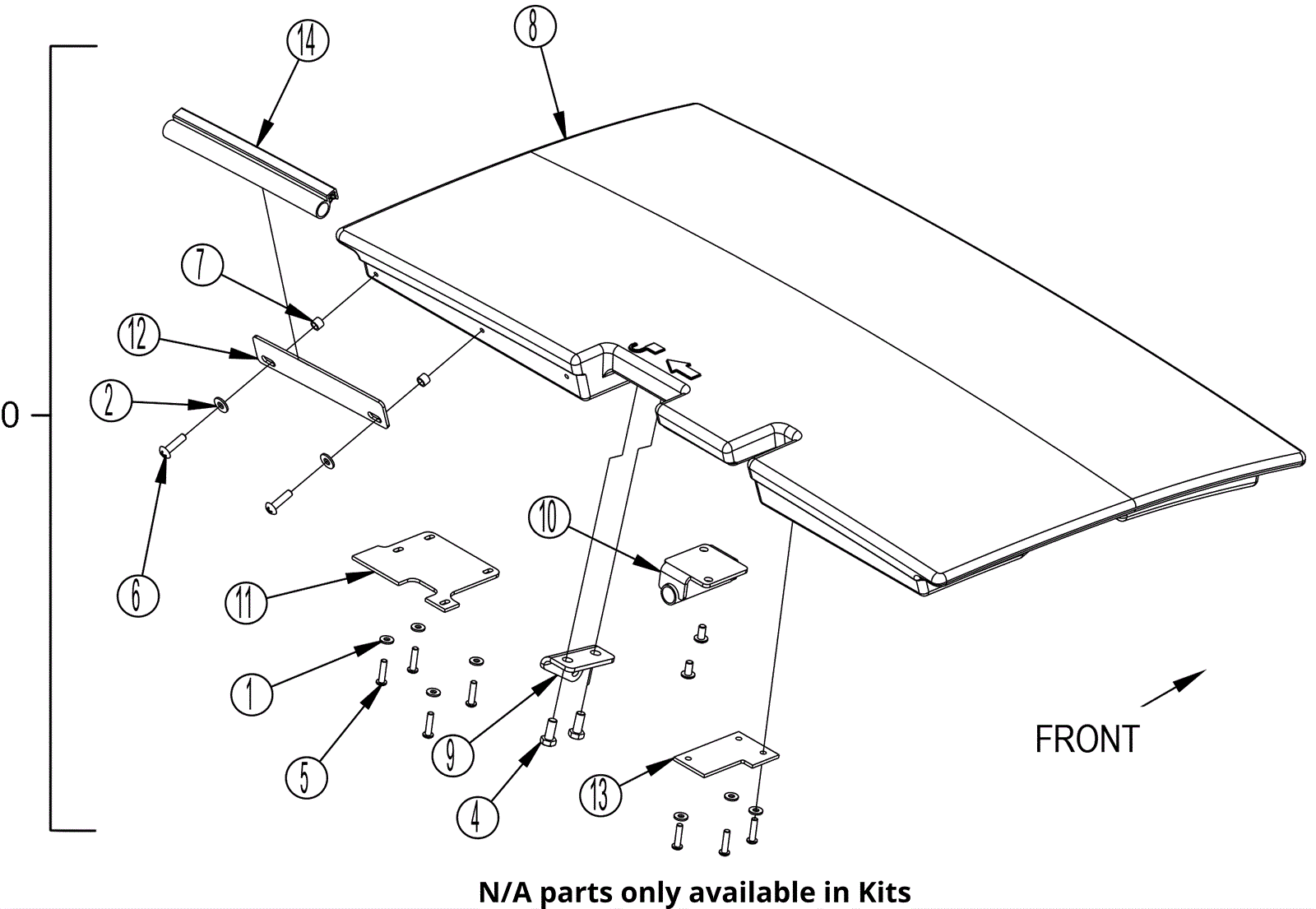

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
372-1398
|
Engine cover |
1 |
|
|
1 |
999-1862
|
Washer #10 flat SAE stainless steel |
7 |
(included in KIT1) |
|
2 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
(included in KIT1) |
|
3 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
(included in KIT2) |
|
4 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
(included in KIT2) |
|
5 |
N/A
|
Not available |
7 |
(screw) (only available in KIT1) |
|
6 |
N/A
|
Not available |
2 |
(screw) (only available in KIT1) |
|
7 |
N/A
|
Not available |
2 |
(bushing) (only available in KIT1) |
|
8 |
372-1427
|
Rear engine cover |
1 |
|
|
9 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT2) |
|
10 |
N/A
|
Not available |
1 |
(latch strike weldment) (only available in KIT2) |
|
11 |
N/A
|
Not available |
1 |
(shield) (only available in KIT1) |
|
12 |
N/A
|
Not available |
1 |
(plate seal) (only available in KIT1) |
|
13 |
N/A
|
Not available |
1 |
(shield) (only available in KIT1) |
|
14 |
N/A
|
Not available |
1 |
(bulb seal) (only available in KIT1) |
|
KIT1 |
372-1425
|
Seal kit |
1 |
(includes 1-2, 5-7, 11-14) |
|
KIT2 |
372-1426
|
Latch strike kit |
1 |
(includes 3-4, 9-10) |
|
