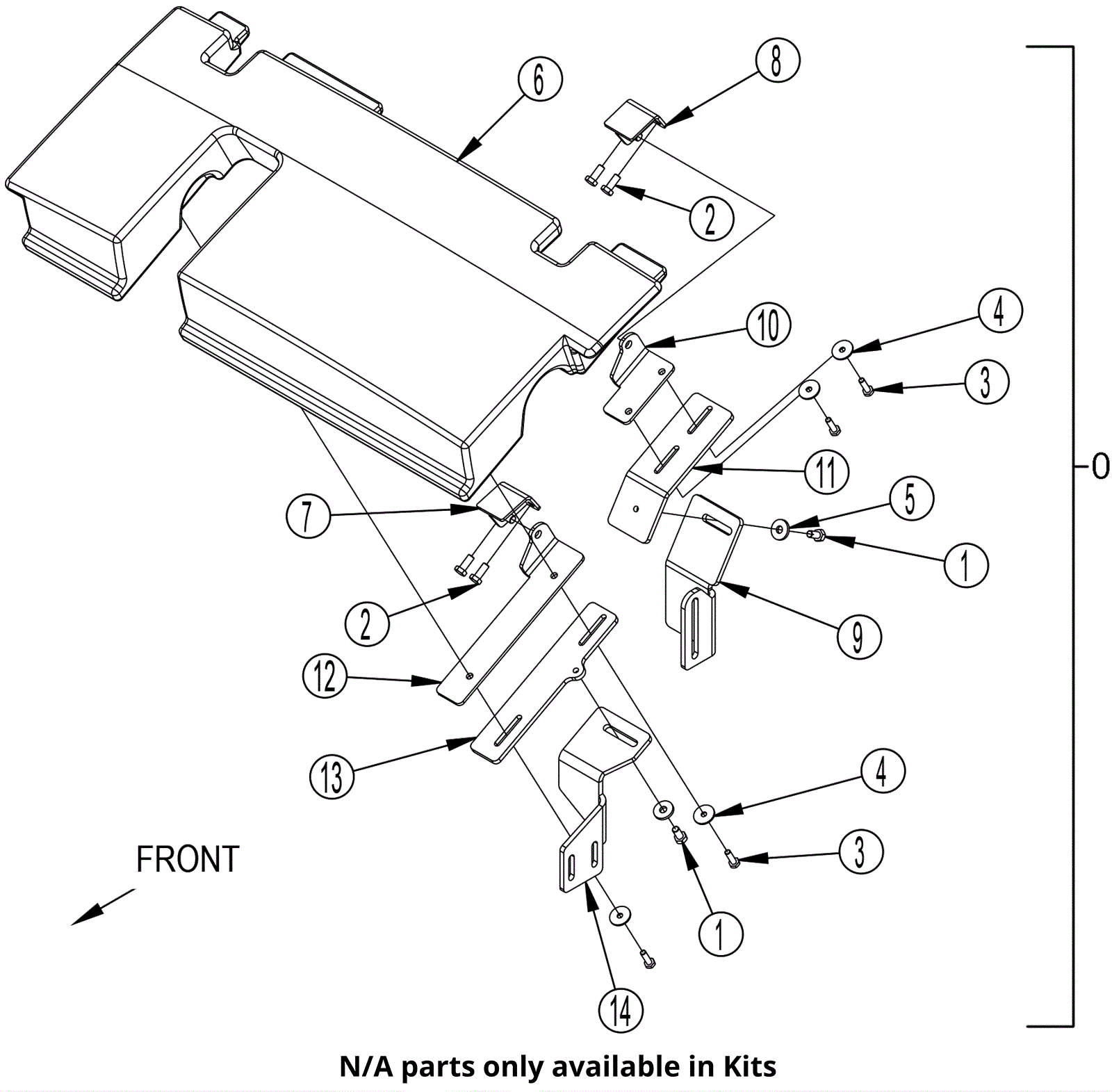

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
372-2706
|
Front engine cover assembly |
1 |
(includes 1-14) |
|
1 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
2 |
(included in KIT1) |
|
2 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
(included in KIT1) |
|
3 |
999-0822
|
Screw 1/4-20 x 7/8 hex head plain finish |
4 |
(included in KIT1) |
|
4 |
N/A
|
Not available |
4 |
(washer) (only available in KIT1) |
|
5 |
N/A
|
Not available |
2 |
(washer) (only available in KIT1) |
|
6 |
372-1424
|
Engine cover |
1 |
|
|
7 |
N/A
|
Not available |
1 |
(right hand hinge weldment) (only available in KIT1) |
|
8 |
N/A
|
Not available |
1 |
(left hand hinge weldment) (only available in KIT1) |
|
9 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
10 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
11 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
12 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
13 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
14 |
N/A
|
Not available |
1 |
(bracket) (only available in KIT1) |
|
KIT1 |
472-7772
|
FRONT ENGINE COVER HINGE KIT |
1 |
(includes 1-5, 7-14) |
|
