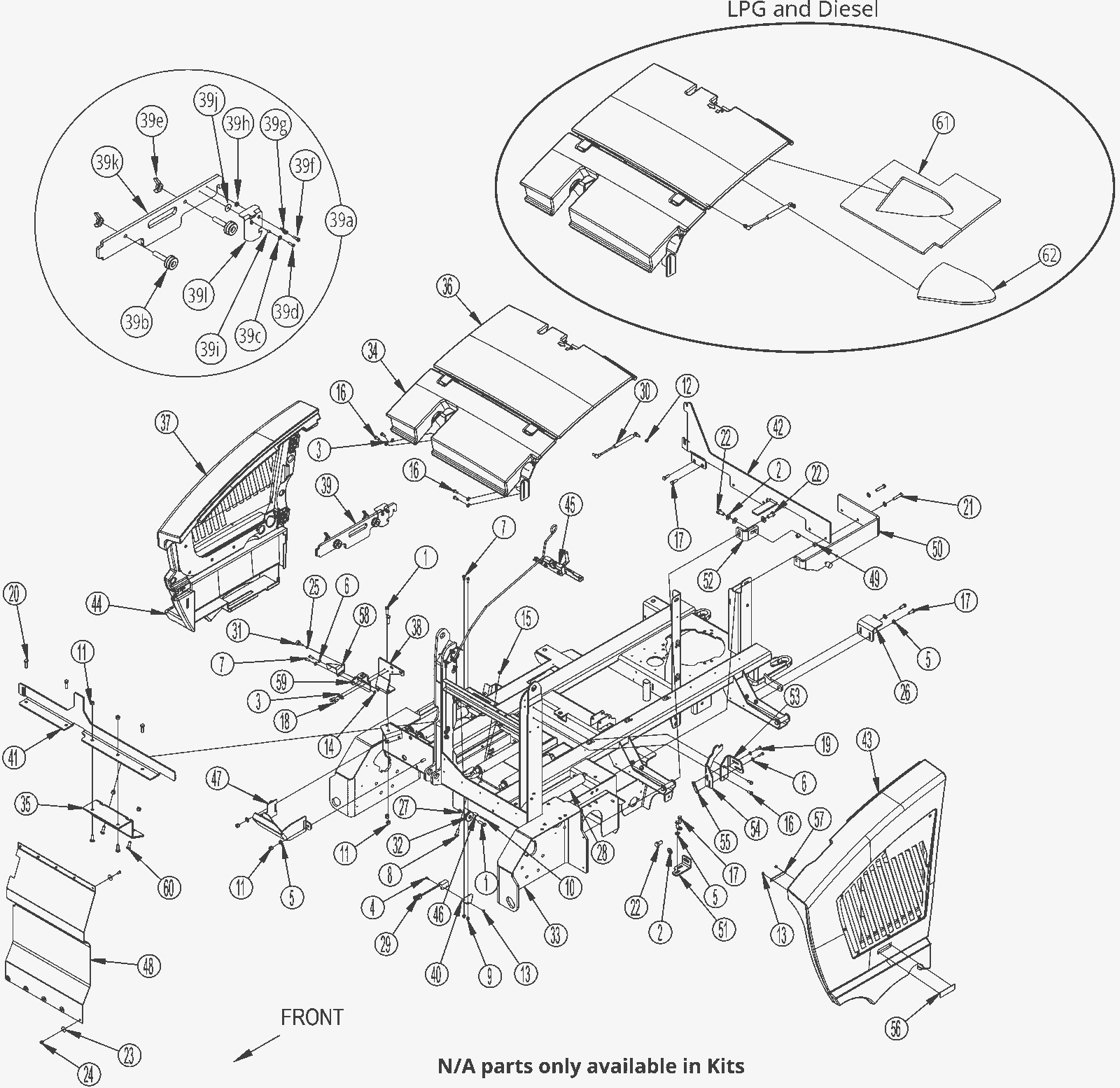

Chassis System Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 3 (screw) (qty 2 for LPG and diesel) (only available in KIT2 and KIT4)
2 999-0114 Washer 1/2 SAE flat 4 (battery model) (included in KIT4 and KIT5)
3 999-9004 Washer 5/16 SAE flat stainless steel 6 (included in KIT2, KIT3 and kIT4)
4 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1 (battery model) (included in KIT4)
5 999-0120 Washer 3/8 SAE flat 10 (qty 6 for LPG and diesel) (included in KIT2 and KIT4)
6 999-0123 Washer 1/4 SAE flat zinc plated 4 (qty 8 for LPG and diesel) (included in KIT2, KIT3, and KIT4)
7 N/A Not available 4 (screw) (qty 2 for LPG and diesel) (only available in KIT2, KIT3 and KIT4)
8 N/A Not available 1 (screw) (only available in KIT4)
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2 (included in KIT2 and KIT4)
10 999-0570 Screw 10-24 x 1 1/4 pan head phillips stainless steel 1 (included in KIT2 and KIT4)
11 N/A Not available 8 (nut) (qty 6 for LPG and diesel) (only available in KIT2, KIT3 and KIT4)
12 N/A Not available 2 (nut) (only available in KIT2 and KIT4)
13 N/A Not available 3 (nut) (battery model) (only available in KIT4)
14 N/A Not available 2 (nut) (only available in KIT2, KIT3 and KIT4)
15 N/A Not available 1 (nut) (battery model) (only available in KIT4)
16 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel 6 (included in KIT2 and KIT4)
17 N/A Not available 10 (screw) (qty 6 LPG and diesel) (only available in KIT2, KIT3 and KIT4)
18 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 2 (included in KIT2, KIT3 and KIT4)
19 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 2 (included in KIT2 and KIT4)
20 N/A Not available 3 (screw) (qty 1 LPG and diesel) (only available in KIT2, KIT4 and KIT5)
21 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2 (battery model) (included in KIT4 and KIT5)
22 N/A Not available 3 (screw) (battery model) (only available in KIT4 and KIT5)
23 N/A Not available 10 (washer) (only available in KIT1, KIT2 and KIT4)
24 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 10 (included in KIT 1, KIT2 and KIT4)
25 999-0181 Nut 1/4-20 hex jam plain finish 1 (included in KIT3)
26 272-7595 Tank stop bracket 2
27 172-2631 Bushing 1
28 472-5743 ROLLER ASSEMBLY 6 (battery model)
29 272-8850 Proximity sensor 1 (battery model)
30 272-0420 Gas spring 1
31 N/A Not available 1 (leg leveler) (only available in KIT3)
32 472-8953 SHIELDED PULLEY 1
33 N/A Not available 1 (chassis weldment)
34 372-2706 Front engine cover assembly 1
35 N/A Not available 1 (roller bracket) (battery model) (only available in KIT5)
36 372-1398 Engine cover 1
37 372-2707 Right hand door assembly 1
38 372-1400 Support panel 1
39a 372-1416 Plate assembly 1 (battery model) (includes 39b-39l)
39b 172-9507 Leveler 2 (battery model)
39c 999-1862 Washer #10 flat SAE stainless steel 1 (battery model)
39d 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1 (battery model)
39e 472-3477 NUT WING 1 1/2-13 2 (battery model)
39f 181-0223 Screw socket head 1 (battery model)
39g 172-8283 Spring .38 x 2 1 (battery model)
39h 472-5770 BEARING FL .375X.250X.188 1 (battery model)
39i 172-8164 Bushing 1 (battery model)
39j 472-8733 WASHER TEFLON .21X.88X.045 1 (battery model)
39k 372-1417 Plate 1 (battery model)
39l 372-1418 Latch 1 (battery model)
40 372-1419 Bracket 1 (battery model)
41 N/A Not available 1 (front battery guide) (battery model) (only available in KIT5)
42 N/A Not available 1 (battery guide weldment) (battery model) (only available in KIT5)
43 372-1401 Left hand cover 1
44 372-1402 Lower cover 1
45 372-1404 Pull rod assembly 1
46 372-1405 Bushing 1
47 372-1406 Reservoir guard 1
48 N/A Not available 1 (dust shield) (only available in KIT1)
49 N/A Not available 2 (bushing) (battery model) (only available in KIT5)
50 N/A Not available 1 (battery stop weldment) (battery model) (only available in KIT5)
51 372-1420 Bracket 1 (battery model)
52 N/A Not available 1 (bracket) (battery model) (only available in KIT5)
53 372-2708 Bracket (OBSOLETE) 1
54 472-7756 HANGER-SIDE PANEL 1
55 372-1408 Nut plate 1
56a 372-1421 Cover plate assembly 1 (battery model)
56b 172-9788 Door latch 1 (LPG and diesel)
57 372-1422 Retainer 1 (battery model)
58 N/A Not available 1 (strike latch) (only availabele in KIT3)
59 N/A Not available 1 (bracket) (only available in KIT3)
60 N/A Not available 4 (carriage bolt) (only available in KIT5)
61 372-1411 Foam insulation 1 (LPG and diesel)
62 372-1412 Foam insulation 1 (LPG and diesel)
N/S N/A Not available 2 (screw) (LPG and diesel) (only available in KIT2)
N/S N/A Not available 2 (washer) (LPG and diesel) (only available in KIT2)
N/S 372-2709 Panel stop weldment (OBSOOLETE) 1 (LPG and diesel)
N/S 372-1409 Bracket 1 (LPG and diesel)
N/S 372-1410 Latch 1 (LPG and diesel)
KIT1 372-1414 Dust shield 1 (includes 23-24, 48)
KIT2 372-2710 Chassis hardware kit 1 (includes 1, 3, 5-7, 9-12, 14, 16-20, 23-24)
KIT3 372-2711 Right hand door latch kit (OBSOLETE) 1 (includes 3, 6-7, 14, 18, 31, 58-59)
KIT4 372-1414 Dust shield 1 (includes 1-24)
KIT5 372-2711 Right hand door latch kit (OBSOLETE) 1 (includes 2, 11, 17, 20-22, 35, 41-42, 49-50, 52, 60)
