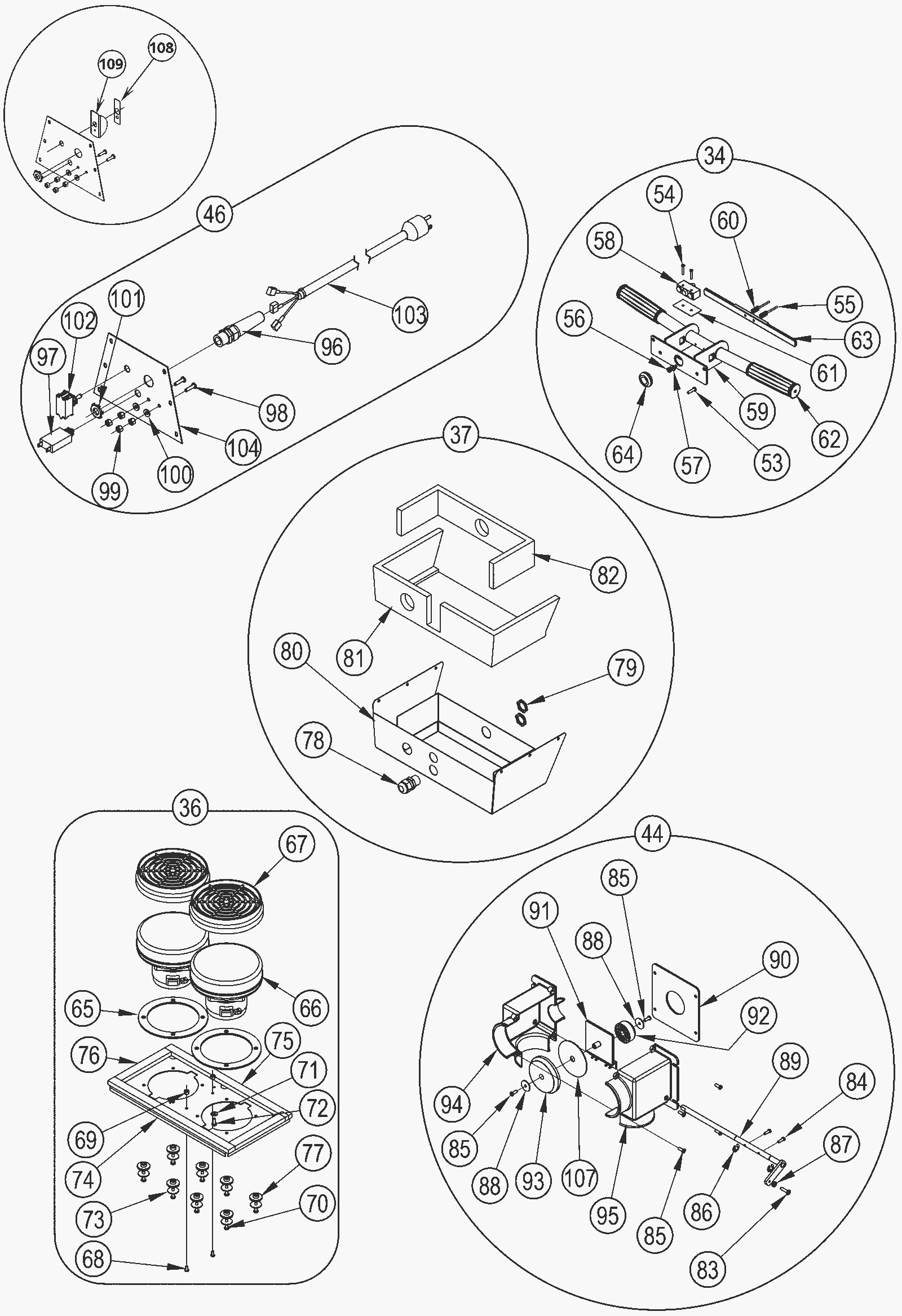

Handle Assembly 2

#PartDescription ReqNotesAvailability
34 181-0283 Handle assembly 1 (includes 53-64a)
36a 272-5210 Vacuum motor assembly 1 (includes 65-66a, 66c-77) (after SN 1875349)
36b 272-2879 Vacuum motor assembly 1 (before SN 1875350)
44 272-5360 Vacuum diverter assembly 1 (includes 83-95, 107)
46a 181-0292 Electrical assembly 1 (includes 96-104) (after SN 1875349)
46b 272-2877 Electrical assembly 1 (before SN 1875350)
53 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
54 272-6809 Screw 2
55 181-0285 Pin 2
56 999-0062 Nut 10-24 hex 1
57 999-0053 Washer #10 split lock plain finish 1
58 181-0286 Push switch 1
59 181-0287 Handle Weldment 1
60 181-0288 Compressed Spring 2
61 181-0289 Insulation Paper 1
62 472-7541 HANDLE GRIP 2
63 181-0291 Trigger 1
64a 172-0889 Grommet 1 (after SN 1875349)
64b 181-0284 Grommet (OBSOLETE) 1 (before SN 1875350)
65 172-0351 Vacuum motor gasket 2
66a 172-6251 120V vacuum motor 2
66b 272-2886 Vacuum motor assembly 2 (before SN 1875350) (100V)
66c 172-6012 Carbon brush (pkg of 2) 2
67a 991-5119 Vacuum motor filter 2 (includes 67b)
67b 472-8004 FILTER KIT-EXHAUST 1
68 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
69 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 2
70 999-1680 Screw 10-24 x 1 pan thread rolling 8 (after SN 1875349)
71 999-0053 Washer #10 split lock plain finish 1
72 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
73 999-0588 Washer 7/8 flat stainless steel 8
74 181-0307 Vac Motor Mounting Plate 1
75 181-0306 Foam Gasket 2
76 181-0305 Foam Gasket 2
77 181-0299 Bushing 8
78 172-4018 Strain relief 1
79 172-4536 Nut 1/2-14 conduit lock 2
80 181-0312 Muffler weldment 1
81 181-0311 Foam Gasket 1
82 181-0310 Foam Gasket 1
83 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
84 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 2 (after SN 1875349)
85 181-1165 Screw 8-15 x 1/2 pan head phillips 6 (after SN 1875349)
86 172-0315 Retaining ring 2
87 999-0062 Nut 10-24 hex 1
88 999-0588 Washer 7/8 flat stainless steel 2 (after SN 1875349)
89 472-7055 SHAFT WELDMENT 1 (after SN 1875349)
90 472-7057 GASKET HOUSING 1 (after SN 1875349)
91 472-7058 Plate diverter 1 (after SN 1875349)
92 472-7059 SEAL WAND VACUUM 1 (after SN 1875349)
93 472-7060 SEAL BRUSH VACUUM 1 (after SN 1875349)
94 472-7061 HOUSING LEFT HALF 1 (after SN 1875349)
95 472-7062 HOUSING,RIGHT HALF 1 (after SN 1875349)
96 170-5174 Strain relief 1
97 172-2160 10amp circuit breaker 1
98 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2 (after SN 1875349)
99 999-0062 Nut 10-24 hex 4 (after SN 1875349)
100 999-0053 Washer #10 split lock plain finish 2
101 172-4536 Nut 1/2-14 conduit lock 1
102a 181-0294 Toggle switch 1 (after SN 1875349)
102b 172-6004 Toggle switch 1 (before SN 1875350)
103a 181-0295 14/3 power cord 75 foot 1 (after SN 1875349)
103b 272-2887 Black cord set (OBSOLETE) 1 (before SN 1875350)
104 181-0296 Access cover 1
107 472-7064 SPACER PLATE 1 (after SN 1875349)
108 172-2861 On/Off decal 1 (before SN 1875350)
109 172-2860 Switch guard 1 (before SN 1875350)
N/S 181-0301 Twist latch 1 (before SN 1875350)
N/S 181-1234 Foam Gasket 1 (before SN 1875350)
N/S 181-1235 Foam Gasket 1 (before SN 1875350)
N/S 181-0303 Gasket 2 (before SN 1875350)
N/S 181-0302 Door Weldment 1 (before SN 1875350)
N/S 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 2 (before SN 1875350)
N/S 999-1861 Screw 10-24 x 7/8 pan head phillips stainless steel 8 (before SN 1875350)
N/S 999-0277 Screw 6-32 x 3/8 hex washer head unslotted thread rolling 2 (before SN 1875350)
N/S 272-1670 Washer 3/8 bowed 2 (before SN 1875350)
N/S 999-0364 Washer #6 internal star lock zinc plated 2 (before SN 1875350)
N/S 172-2837 Wire swivel 1 (before SN 1875350)
