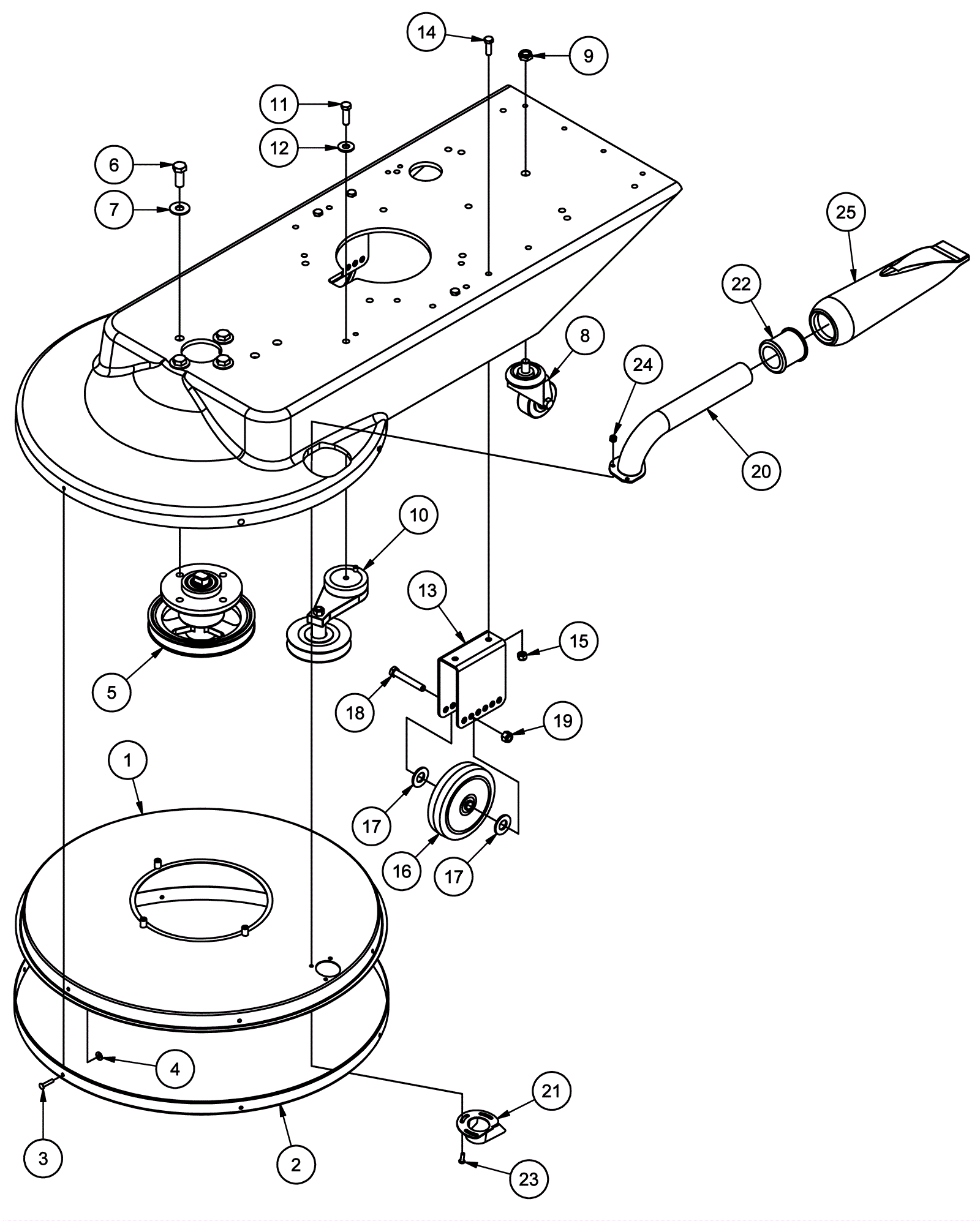

21KACATCLDC Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 472-8174 LINER-SHROUD 21 (OBSOLETE) $170.50 1 usually ships 16-41 days
1b 472-8185 LINER-SHROUD 27 (OBSOLETE) $102.50 1 usually ships 16-41 days
2a 472-8189 VELCRO-HOOK-1X100 (OBSOLETE) $7.30 74 inch usually ships 16-41 days
2b 472-8189 VELCRO-HOOK-1X100 (OBSOLETE) $7.30 98 inch usually ships 16-41 days
3 472-8193 RIVET-3/16 $8.20 5 usually ships 16-41 days
4 999-1862 Washer #10 flat SAE stainless steel $0.99 5 ships same day
5a 372-1150 Spindle assembly $366.27 1 (21 inch) usually ships 16-41 days
5b 472-8163 SPINDLE ASSY-9.25 $531.94 1 (27 inch) usually ships 16-41 days
6 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 4 ships same day
7 999-1416 Washer 7/16 flat stainless steel $0.99 4 ships same day
8 472-8116 CASTER 2.5 $66.98 1 usually ships 16-41 days
9 172-4982 Nut 1/2-13 hex unplated heavy $10.90 1 usually ships 1-5 days
10 472-8123 TENSIONER-BELT $131.91 1 usually ships 16-41 days
11 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 1 ships same day
12 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
13 472-8146 BRACKET-WHEEL (OBSOLETE) $79.99 2 usually ships 16-41 days
14 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 4 ships same day
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
16 472-8126 WHEEL-5 $41.60 2 usually ships 5-9 days
17 999-0349 Washer 5/8 SAE flat $0.99 4 ships same day
18 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 2 ships same day
19 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
20 472-8169 TUBE-DUST (OBSOLETE) $119.00 1 usually ships 16-41 days
21 472-8166 SCOOP-DUST (OBSOLETE) $91.00 1 usually ships 16-41 days
22 472-8168 GROMMET-1.5 $21.77 1 usually ships 16-41 days
23 472-8208 SCR-BH--10X5/8 $8.20 3 usually ships 16-41 days
24 999-0460 Nut 10-32 hex $0.99 3 ships same day
25 472-8167 BAG-DUST (OBSOLETE) $46.60 1 usually ships 16-41 days
