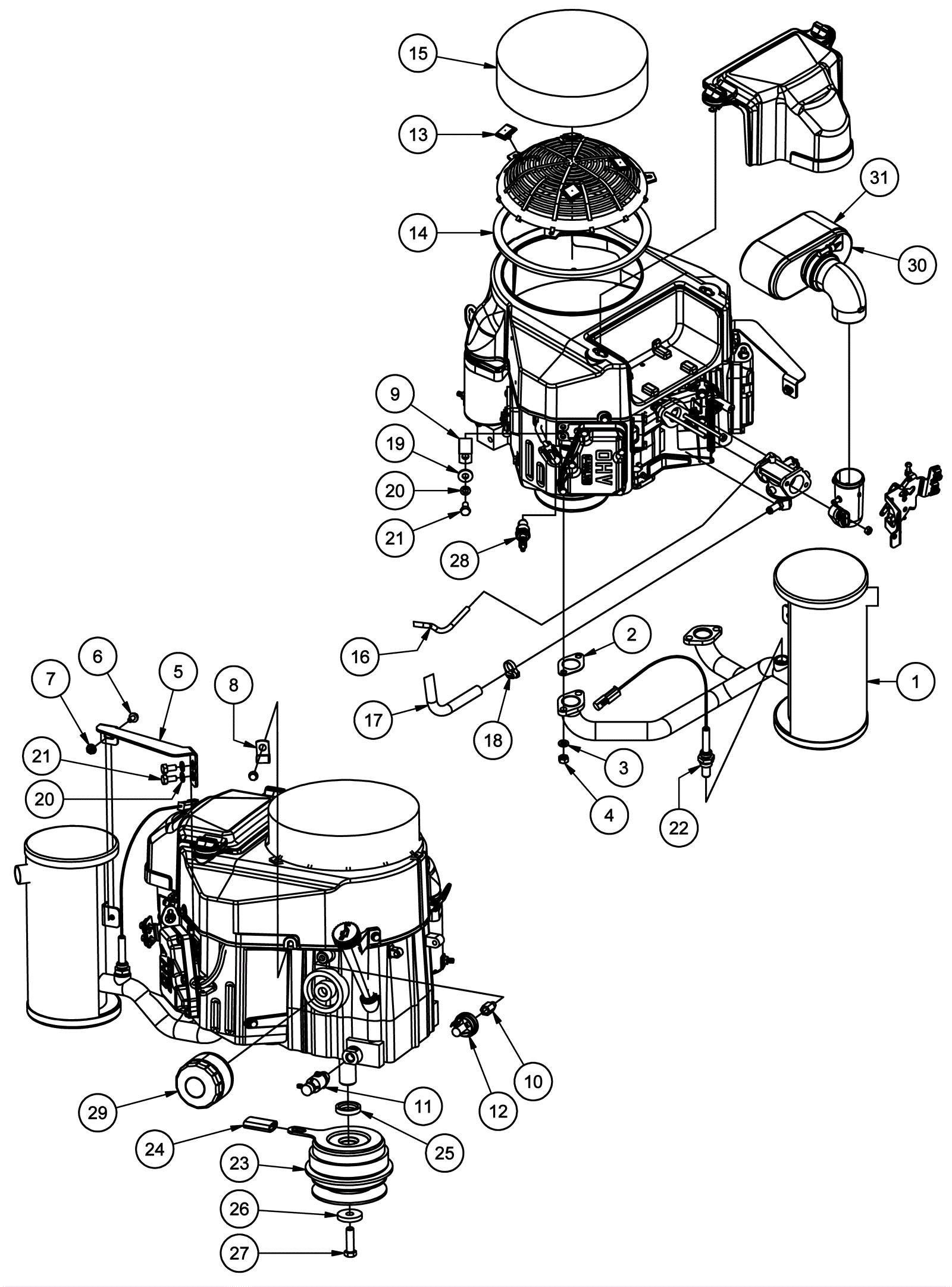

21KACATCLDC Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6793 Muffler $1,318.74 1 usually ships 1-5 days
2 272-6830 Muffler gasket $9.02 2 usually ships 1-5 days
3 472-8217 WASHER-LOCK 8MM $9.02 4 usually ships 16-41 days
4 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
5 472-8171 BRACKET-MUFFLER $106.08 1 usually ships 16-41 days
6 472-8209 SCR-1/4X1/2 $9.02 1 usually ships 16-41 days
7 472-8215 NUT-FLANGE 1/4 $9.02 1 usually ships 16-41 days
8 472-8203 CLAMP-1/4 $9.02 1 usually ships 16-41 days
9 472-8204 CLAMP-3/4 $13.40 1 usually ships 16-41 days
10 472-8120 ADAPTER-1/8 NPT $26.92 1 usually ships 16-41 days
11 472-8150 VALVE-OIL DRAIN $41.01 1 usually ships 16-41 days
12 472-8118 SWITCH-OIL PRESSURE $65.65 1 usually ships 16-41 days
13 472-8190 VELCRO-STUD $9.02 4 usually ships 16-41 days
14 472-8124 FOAM 1/2X1/4X38 $17.90 1 usually ships 16-41 days
15 272-6831 Recoil filter $74.24 1 usually ships 16-41 days
16 472-8197 HOSE-VACUUM 5/32 $11.19 26 inch usually ships 16-41 days
17 472-8199 HOSE-FUEL 3/8X25 $28.46 25 inch usually ships 16-41 days
18 472-8202 CLAMP-HOSE $9.02 1 usually ships 16-41 days
19 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
20 472-8212 WASHER-LOCK 5/16 $9.02 3 usually ships 16-41 days
21 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 3 ships same day
22 472-8165 SENSOR-OXYGEN $130.87 1 usually ships 16-41 days
23 472-8177 CLUTCH ASSY $486.72 1 usually ships 16-41 days
24 472-8178 TUBE-NEOPRENE-2.5 $48.32 2.5 inch usually ships 16-41 days
25 472-8158 SPACER-1.02 ID $34.66 1 usually ships 16-41 days
26 472-8182 SPACER-CLUTCH $26.47 1 usually ships 16-41 days
27 472-3455 SCR HEX 7/16-14 X 1.50 $9.02 1 usually ships 16-41 days
28 166-0008 Spark plug (Kawasaki FS481V) $4.79 1 ships same day
29 178-0254 Oil filter $17.88 1 ships same day
30 178-0256 Air filter $21.38 1 ships same day
31 178-0255 Air pre-filter $6.29 1 ships same day
