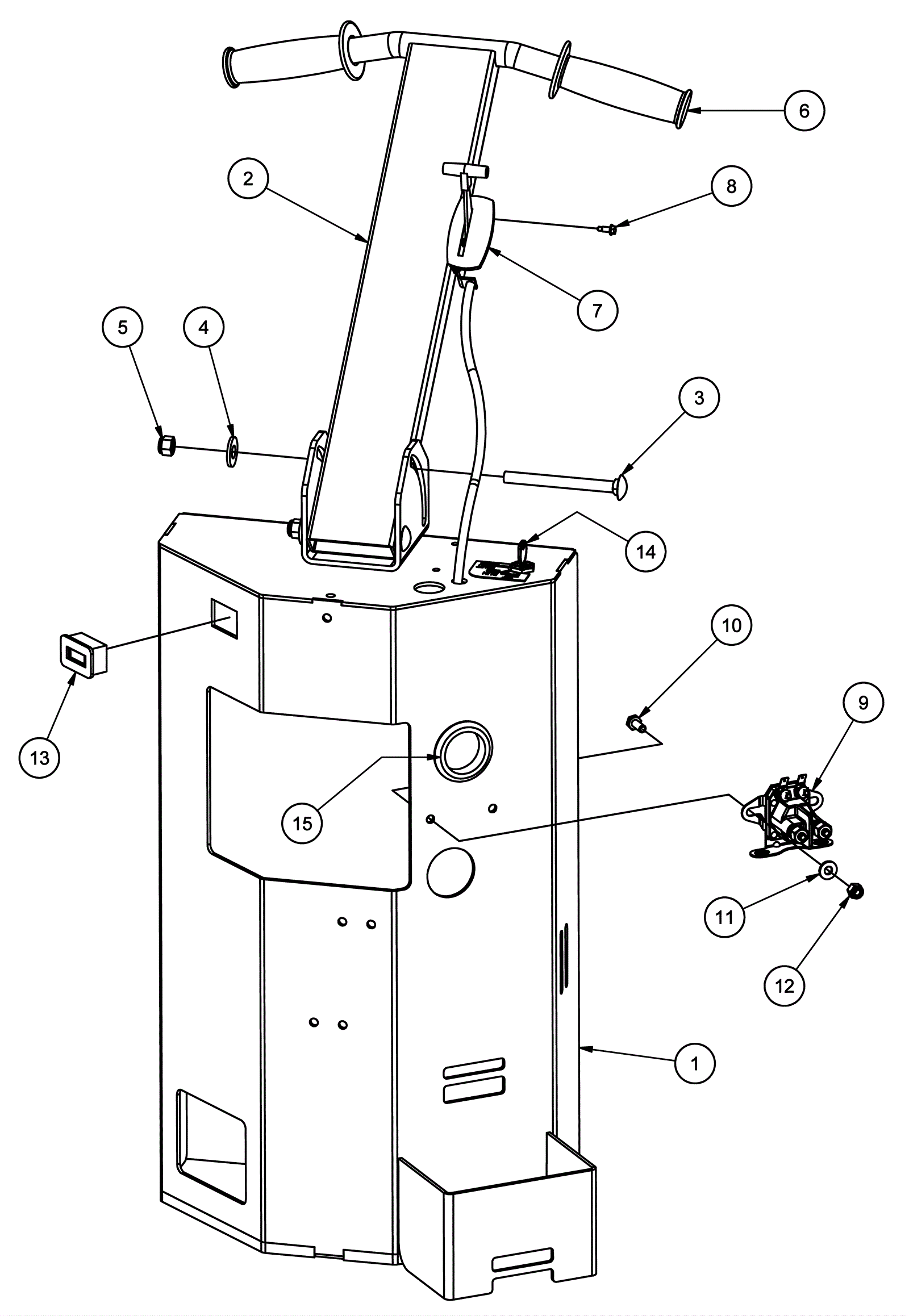

Handle Assembly

#PartDescription ReqNotesAvailability
1 472-8170 HANDLE-BULKHEAD (OBSOLETE) 1
2 472-8147 HANDLE-TOP (OBSOLETE) 1
3 472-8219 SCR-CARRIAGE 3/8X4 2
4 999-0120 Washer 3/8 SAE flat 2
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
6 472-8148 GRIP-HANDLE 2
7 472-8154 CABLE-THROTTLE 1
8 472-8213 SCR--8X1/2 2
9 472-8149 SOLENOID-STARTER 1
10 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
11 999-0123 Washer 1/4 SAE flat zinc plated 2
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
13 472-8140 METER-HOUR/TACH (OBSOLETE) 1
14a 472-8137 SWITCH-KEY - W/KEY 1
14b 472-8114 SWITCH-KEY 1
15 472-8201 GROMMET-1.5 1
