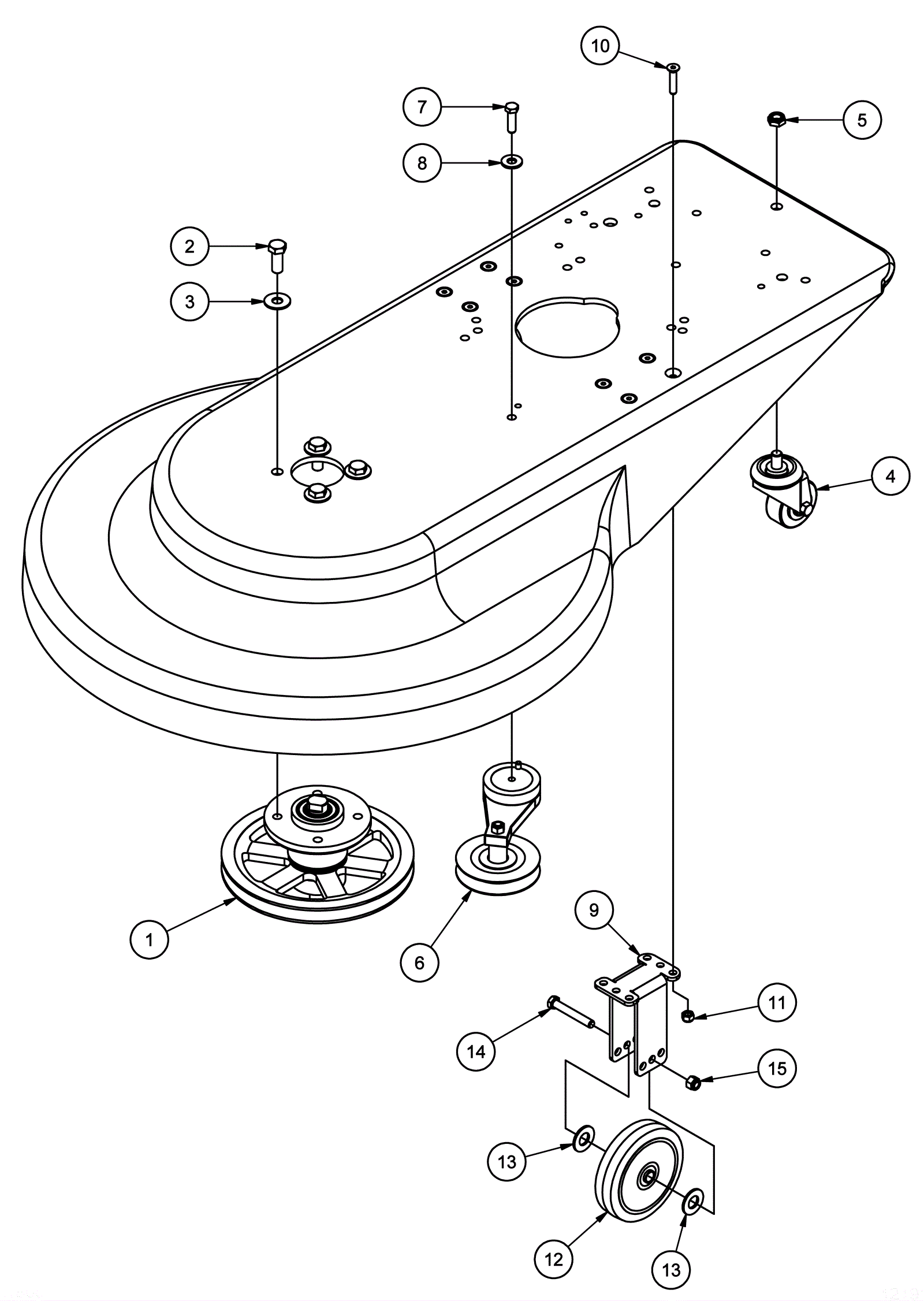

Deck Assembly

#PartDescription ReqNotesAvailability
1a 372-1150 Spindle assembly 1 (21 inch)
1b 472-8163 SPINDLE ASSY-9.25 1 (27 inch)
2 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
3 999-1416 Washer 7/16 flat stainless steel 4
4 472-8116 CASTER 2.5 1
5 172-4982 Nut 1/2-13 hex unplated heavy 1
6 472-8123 TENSIONER-BELT 1
7 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
8 999-0120 Washer 3/8 SAE flat 1
9 472-8172 BRACKET-WHEEL 2
10 472-8195 SCR-FLAT 5/16X1.5 8
11 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 8
12 472-8126 WHEEL-5 2
13 999-0349 Washer 5/8 SAE flat 4
14 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 2
15 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
