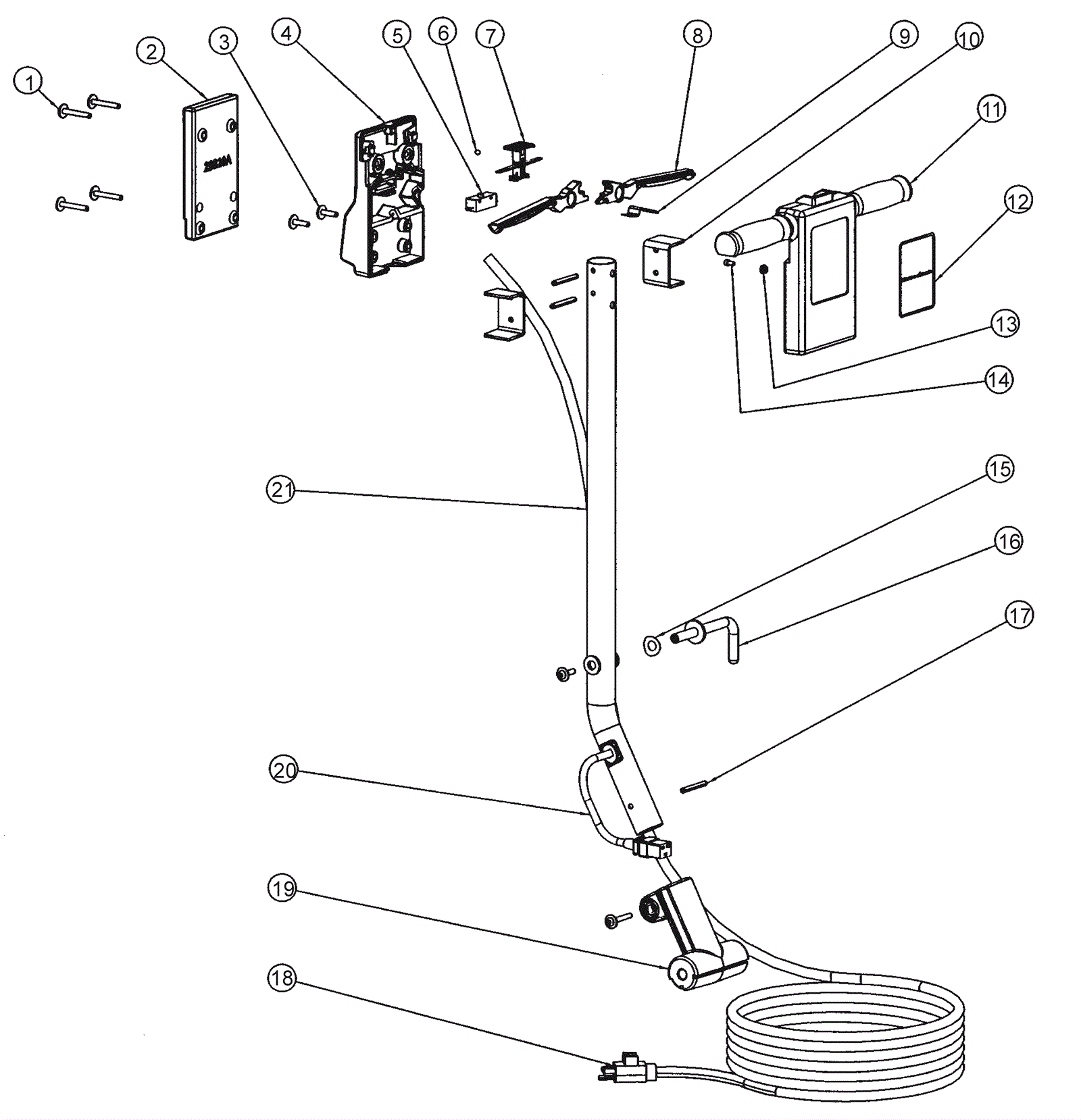

ECB 2000 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 5 ships same day
2 272-8746 Handle weight (OBSOLETE) $74.91 1 usually ships 1-5 days
3 272-8200 Button head screw $5.28 3 ships same day
4 172-0888 Back handle $72.26 1 usually ships 1-5 days
5 172-3093 Switch $15.07 1 ships same day
6 172-3103 1/4 ball bearing stainless steel $11.99 1 usually ships 16-41 days
7 172-3091 Locking button $15.07 1 ships same day
8 172-4663 Handle lever (OBSOLETE) $34.66 2 usually ships 16-41 days
9 172-3100 Spring plate $9.02 1 ships same day
10 272-8747 Handle mount support $12.83 2 usually ships 1-5 days
11 172-0887 Front handle $209.34 1 usually ships 16-41 days
12 272-8748 Handle decal (OBSOLETE) $8.25 1 usually ships 1-5 days
13 999-0460 Nut 10-32 hex $0.99 1 ships same day
14 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 1 ships same day
15 272-8202 Bowed washer $3.30 1 ships same day
16 272-8749 Cord wrap $16.09 1 usually ships 1-5 days
17 272-8750 Coiled pin $23.95 3 usually ships 1-5 days
18 272-8008 14/3 power cord 50 foot $200.06 1 usually ships 16-41 days
19 170-8963 Handle mount $58.48 1 usually ships 1-5 days
20 272-8233 Interconnect cord $28.74 1 usually ships 16-41 days
21 272-8752 Handle tube weldment (OBSOLETE) $42.19 1 usually ships 16-41 days
