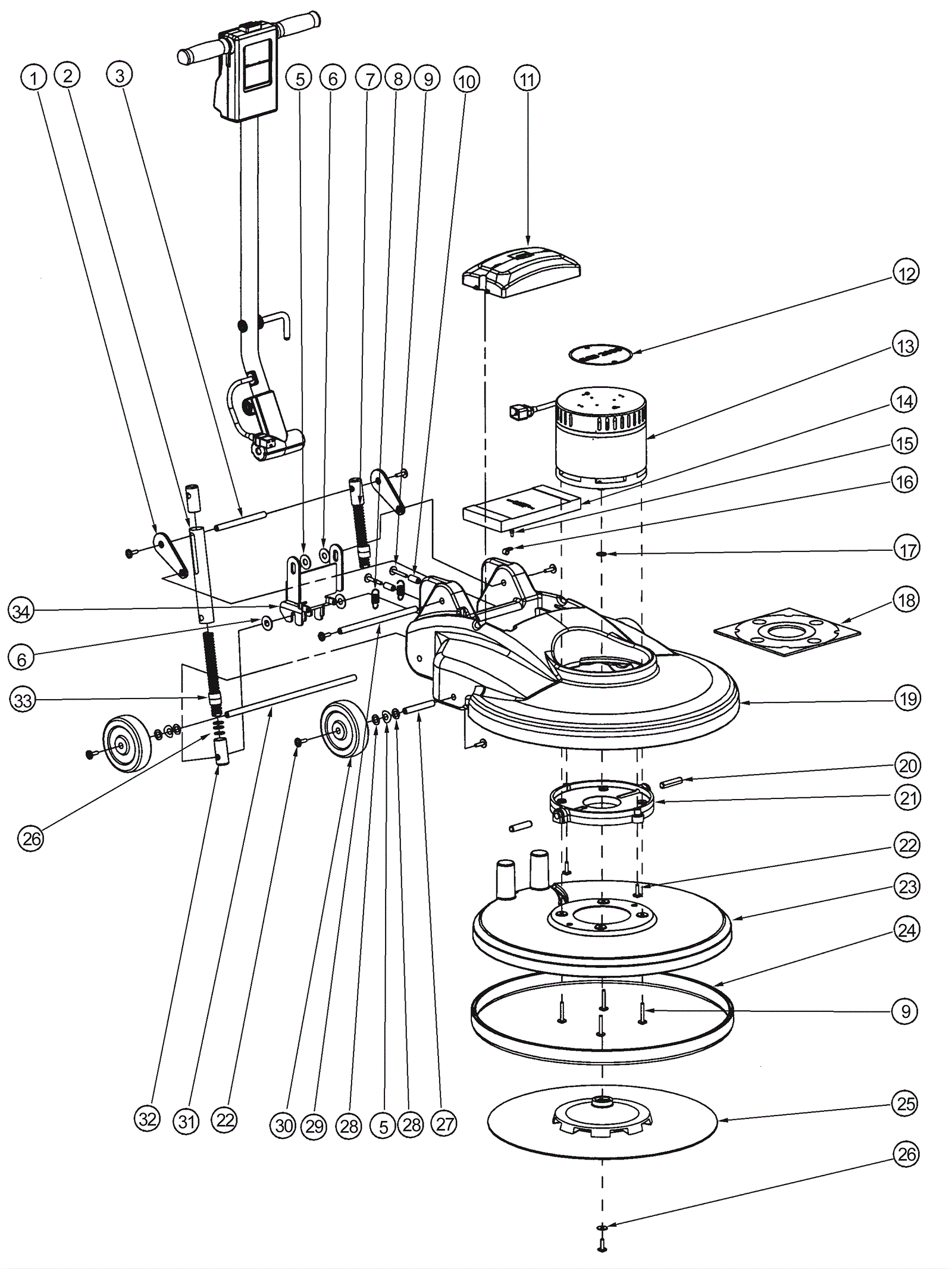

ECB 2000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8741 Linking arm $17.61 2 usually ships 16-41 days
2 272-8742 Tube spring (OBSOLETE) $7.59 2 usually ships 1-5 days
3 272-8744 Loaded spring pin $12.83 1 usually ships 1-5 days
5 272-8202 Bowed washer $3.30 5 ships same day
6 170-6124 Washer flat nylon $1.21 3 usually ships 4-15 days
7 272-8740 Compression spring $11.99 2 usually ships 16-41 days
8 272-8226 Extension spring $10.56 2 usually ships 16-41 days
9 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 6 ships same day
10 272-8734 Spacer $10.56 2 usually ships 1-5 days
11 272-8219 Dust bag cover $12.83 1 usually ships 16-41 days
12 370-3171 LABEL MOTOR COVER ECB 2000 (OBSOLETE) $7.59 1 usually ships 16-41 days
13a 272-8218 120V brush motor $1,789.15 1 (includes a-l) usually ships 16-41 days
13b 372-1221 Carbon brush assembly kit $49.86 1 ships same day
13c 372-1685 Springs $37.49 4 usually ships 4-15 days
13d N/A Not available Call for price 4 (Carbon brush) usually ships 3-26 days
13e 170-1510 Varistor $26.58 1 usually ships 16-41 days
13f 170-1509 Lead (yellow) $25.36 1 usually ships 16-41 days
13g 170-1508 Lead (red) $11.99 1 usually ships 16-41 days
13h 170-6417 Bracket commutator (OBSOLETE) $143.51 1 usually ships 1-5 days
13i 163-0063 240V rectifier $10.65 1 ships same day
13j 170-0321 Front end bearing $21.54 1 ships same day
13k 372-1890 Bearing (rear) $43.41 1 usually ships 16-41 days
13l 170-0379 Wave washer $10.56 1 usually ships 16-41 days
14 172-3066 Vacuum bag (pkg of 10) $20.86 1 ships same day
15 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 2 ships same day
16 272-8222 Cable clamp $11.99 2 usually ships 1-5 days
17 272-8494 External retaining ring $11.99 1 usually ships 1-5 days
18 272-8224 Gasket $11.99 1 usually ships 16-41 days
19 372-0040 Dust control mainframe $407.00 1 usually ships 16-41 days
20 272-8206 Coiled pin $11.26 2 usually ships 16-41 days
21 272-8737 Motor mount $33.00 1 usually ships 1-5 days
22 272-8200 Button head screw $5.28 13 ships same day
23 272-8225 20 inch dust shroud $89.61 1 ships same day
24 172-3072 20 inch skirt assembly $72.26 1 ships same day
25 272-8211 20 inch pad driver $514.77 1 usually ships 16-41 days
26 170-1274 Washer $10.56 7 usually ships 16-41 days
27 272-8212 Front axle $31.50 2 usually ships 16-41 days
28 170-0705 Washer 1/2 x 3/64 $2.70 8 usually ships 4-15 days
29 272-8738 Pivot axle $12.83 1 usually ships 1-5 days
30 172-3050 5 inch wheel $26.65 4 usually ships 7-17 days
31 272-8213 Rear axle $12.83 1 usually ships 16-41 days
32 272-8743 Spring guide $12.83 4 usually ships 1-5 days
33 272-8739 Sleeve $16.07 2 usually ships 1-5 days
34 272-8745 Release pedal $110.97 1 usually ships 1-5 days
