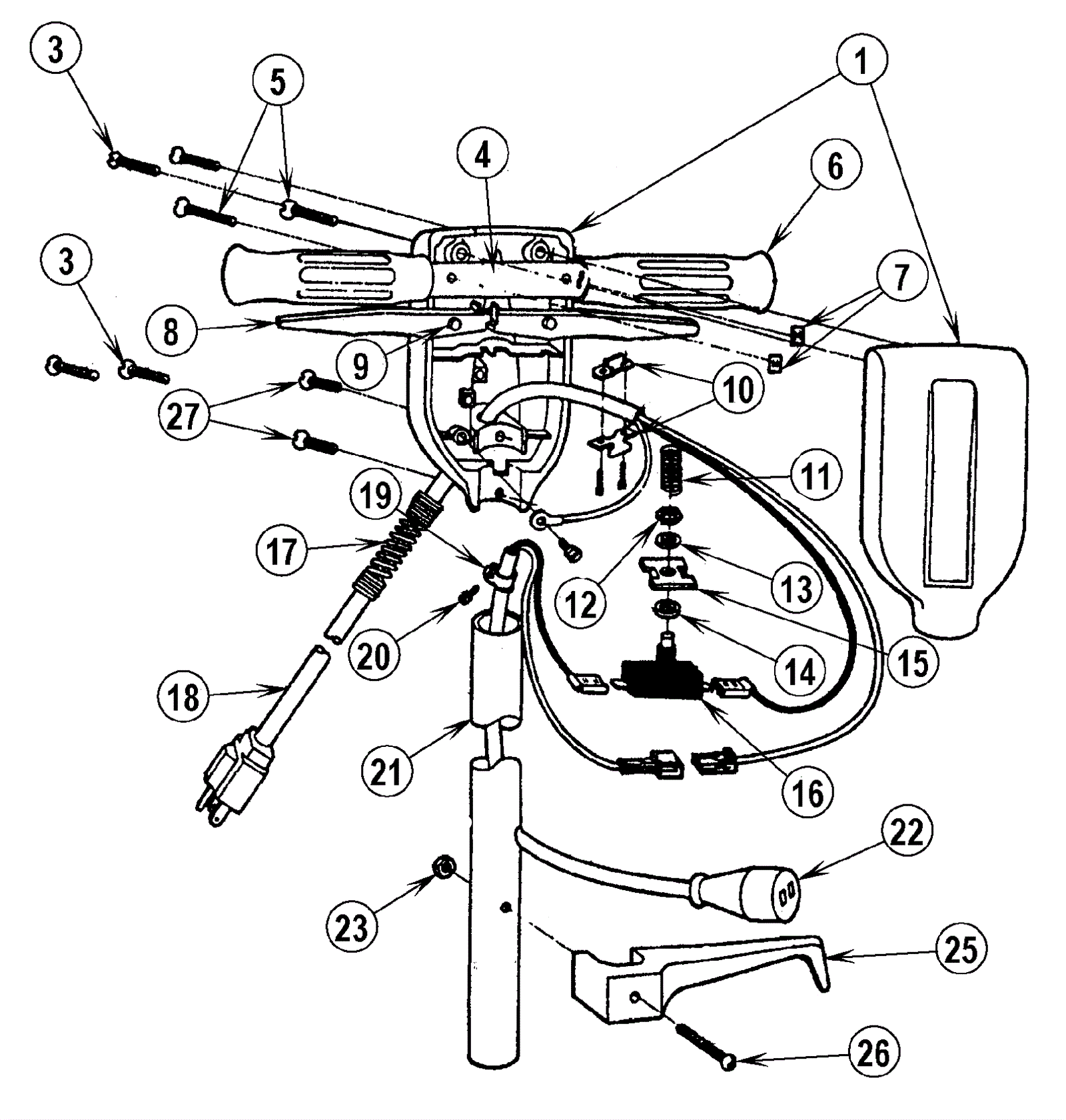

EC2000 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-1545 Switchbox assembly (OBSOLETE) $223.56 usually ships 1-5 days
3 172-1547 Screw (OBSOLETE) $5.40 usually ships 16-41 days
4 172-1548 Handle bar (OBSOLETE) $29.16 usually ships 1-5 days
5 172-1549 Screw (OBSOLETE) $5.40 usually ships 1-5 days
6 172-1550 Handle grip (OBSOLETE) $16.85 usually ships 16-41 days
7 172-1551 Nut (OBSOLETE) $15.77 usually ships 1-5 days
8 N/A Not available Call for price (Switch lever) usually ships 3-26 days
9 N/A Not available Call for price (Lever pivot pin) usually ships 3-26 days
10 372-1614 Strain relief (OBSOLETE) Call for price usually ships 16-41 days
11 N/A Not available Call for price (Coil spring) usually ships 3-26 days
12 172-1556 Nut (OBSOLETE) $13.50 usually ships 1-5 days
13 999-0201 Washer 3/8 internal star lock $0.99 ships same day
14 999-0120 Washer 3/8 SAE flat $0.99 ships same day
15 172-1559 Switch bracket (OBSOLETE) $14.69 usually ships 16-41 days
16 372-1617 Switch $74.27 usually ships 16-41 days
17 172-1561 Strain relief $26.22 usually ships 4-15 days
18 172-1562 Cable assembly (OBSOLETE) $251.64 usually ships 16-41 days
19 372-1615 Strain relief (tube wire) (OBSOLETE) Call for price usually ships 16-41 days
20 172-1564 Screw (OBSOLETE) $5.40 usually ships 1-5 days
21 172-1565 Handle tube (OBSOLETE) $240.84 usually ships 1-5 days
22 372-1616 Tube wire assembly (OBSOLETE) Call for price usually ships 16-41 days
23 372-1619 Chassis (dark grey) $18.00 usually ships 16-41 days
25 172-1568 Cable hook (OBSOLETE) $84.24 usually ships 1-5 days
26 172-1569 Screw (OBSOLETE) $5.94 usually ships 1-5 days
27 172-1570 Screw (OBSOLETE) $5.40 usually ships 1-5 days
