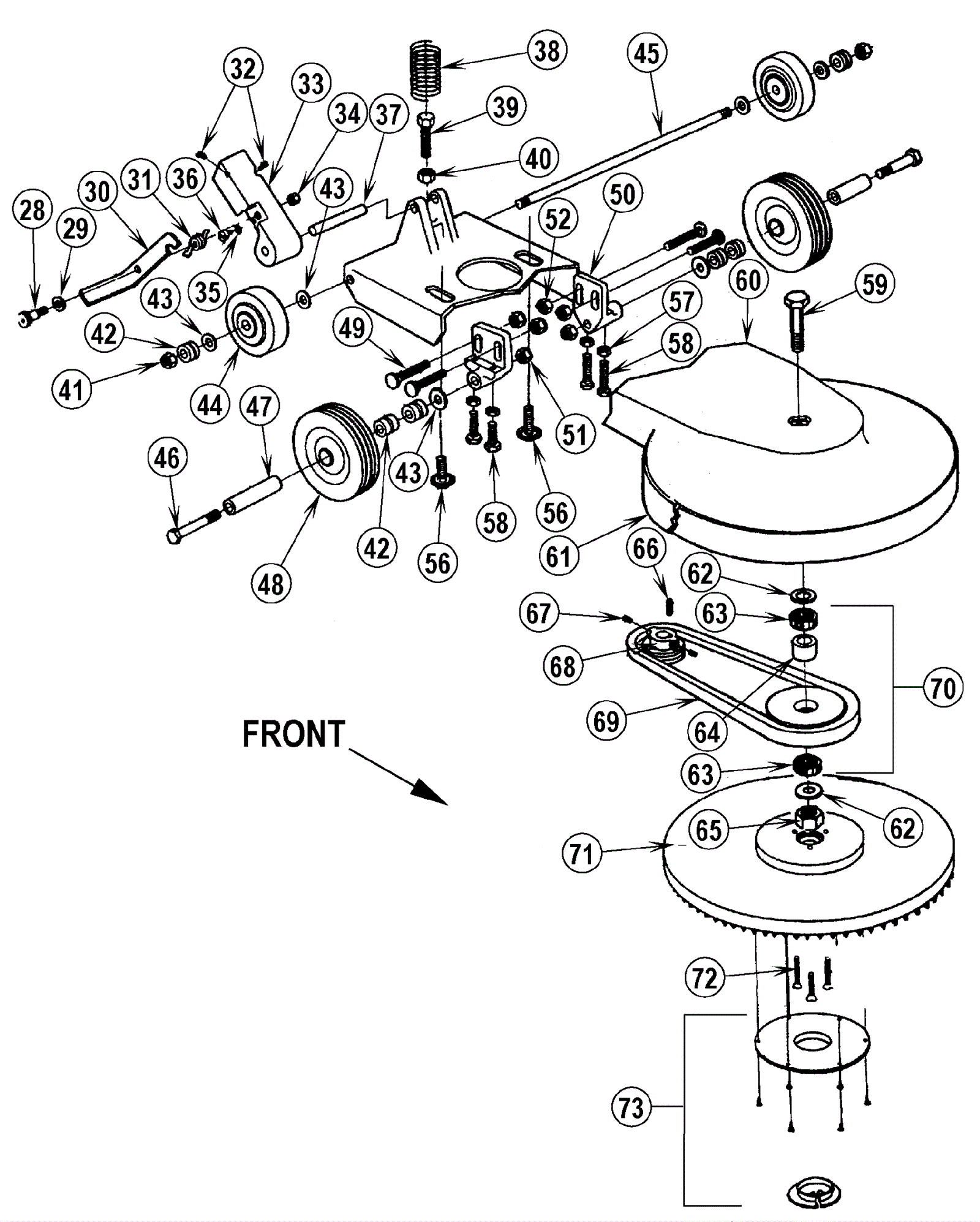

EC2000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
28 372-1606 Lever pivot (OBSOLETE) Call for price usually ships 16-41 days
29 999-0120 Washer 3/8 SAE flat $0.99 ships same day
30 N/A Not available Call for price (Latch lever) usually ships 3-26 days
31 N/A Not available Call for price (Latch lever spring) usually ships 3-26 days
32 172-1604 Set screw (OBSOLETE) $13.50 usually ships 1-5 days
33 N/A Not available Call for price usually ships 3-26 days
34 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 ships same day
35 172-1607 Grommet (OBSOLETE) $13.50 usually ships 1-5 days
36 372-1607 Latch spring screw (OBSOLETE) Call for price usually ships 16-41 days
37 172-1609 Pivot pin (OBSOLETE) $21.38 usually ships 1-5 days
38 372-1608 Handle adjustment spring (OBSOLETE) Call for price usually ships 16-41 days
39 172-1611 Screw (OBSOLETE) $5.40 usually ships 1-5 days
40 172-1612 Nut (OBSOLETE) $5.40 usually ships 1-5 days
41 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 ships same day
42 172-1614 Spacer (OBSOLETE) $6.37 usually ships 16-41 days
43 999-0120 Washer 3/8 SAE flat $0.99 ships same day
44 172-1616 Wheel (OBSOLETE) $34.02 usually ships 16-41 days
45 172-1617 Rear axle (OBSOLETE) $35.64 usually ships 16-41 days
46 172-1618 Front axle (OBSOLETE) $6.59 usually ships 1-5 days
47 172-1619 Wheel bushing (OBSOLETE) $19.66 usually ships 1-5 days
48 N/A Not available Call for price (Wheel) usually ships 3-26 days
49 172-1621 Bolt (OBSOLETE) $18.04 usually ships 1-5 days
50 172-1622 Wheel bracket (OBSOLETE) $68.04 usually ships 1-5 days
51 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 ships same day
56 172-1624 Bolt (OBSOLETE) $5.40 usually ships 1-5 days
57 172-1625 Nut (OBSOLETE) $13.50 usually ships 1-5 days
58 172-1626 Bolt (OBSOLETE) $42.66 usually ships 1-5 days
59 172-1627 Spindle (OBSOLETE) $27.00 usually ships 1-5 days
60 372-1610 Apron (OBSOLETE) Call for price usually ships 16-41 days
61 372-1611 Bumper (OBSOLETE) Call for price usually ships 16-41 days
62 172-1630 Washer (OBSOLETE) $5.40 usually ships 1-5 days
63 172-1631 Ball bearing (OBSOLETE) $57.45 usually ships 1-5 days
64 172-1632 Brush pulley spacer (OBSOLETE) $11.12 usually ships 1-5 days
65 172-1633 Nut (OBSOLETE) $14.69 usually ships 1-5 days
66 172-1634 Key (OBSOLETE) $5.40 usually ships 1-5 days
67 372-1612 Set screw (OBSOLETE) Call for price usually ships 16-41 days
68 172-1636 Motor pulley (OBSOLETE) $39.42 usually ships 1-5 days
69 172-1637 Belt (OBSOLETE) $126.10 usually ships 1-5 days
70 172-1638 Brush pulley assembly (OBSOLETE) $452.52 (includes 63) usually ships 1-5 days
71a N/A Not available Call for price (includes 71b) (Driving pad assembly ) usually ships 3-26 days
71b N/A Not available Call for price (Driving pad face) usually ships 3-26 days
72 172-1641 Bolt (OBSOLETE) $5.40 usually ships 1-5 days
