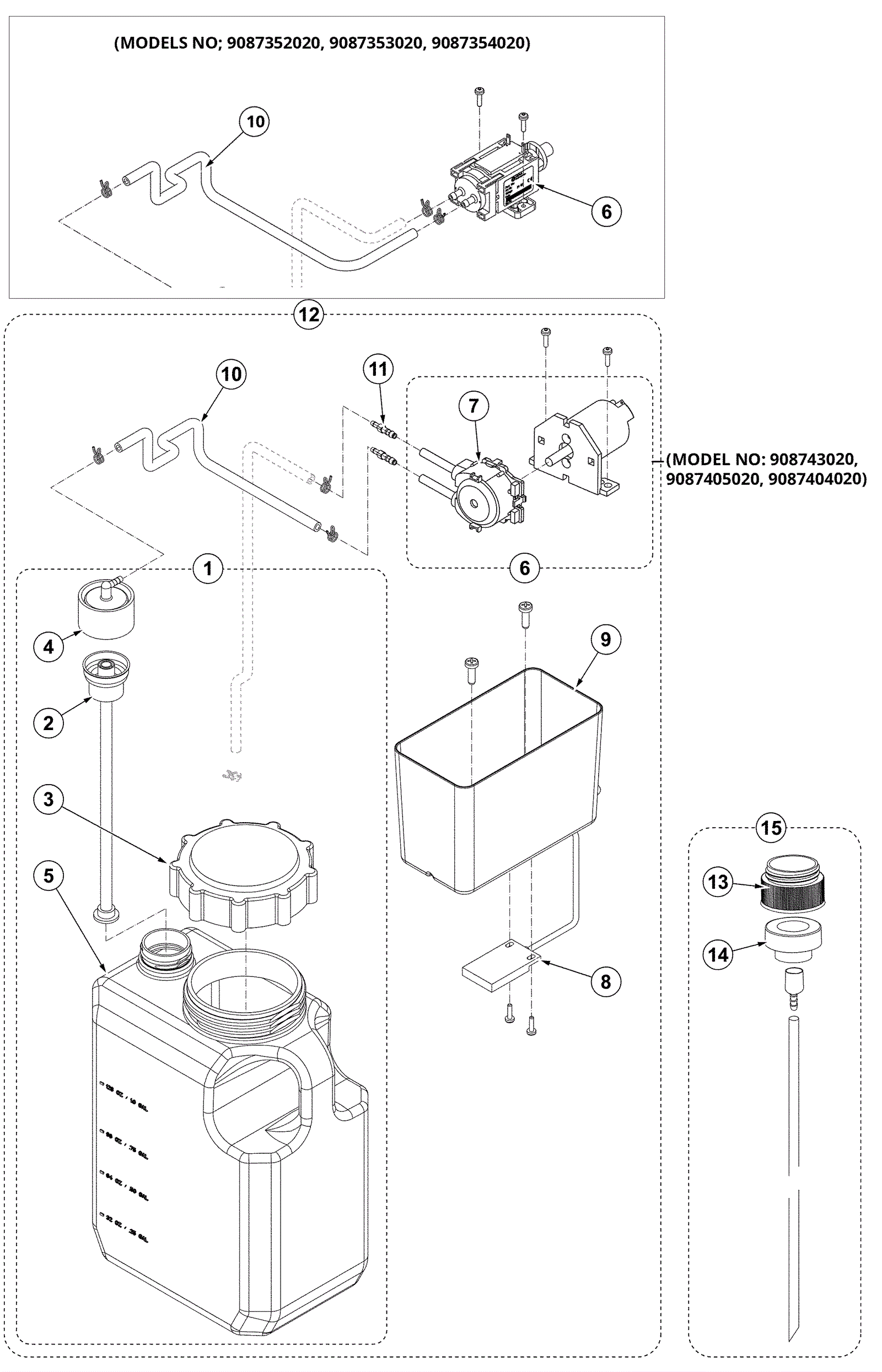

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
472-3864
|
ECOFLEX BOTTLE ASSY |
1 |
(includes 2-5) |
|
2 |
272-6752
|
Dry brake insert |
1 |
|
|
3 |
572-9213
|
Chemical tank cap (plastic) |
1 |
|
|
4 |
272-2182
|
Dry break cap |
1 |
|
|
5 |
572-3548
|
CHEMICAL TANK PKD |
1 |
|
|
6a |
172-4771
|
Chemical mix pump |
1 |
(model no 9087352020, 9087353020, 9087354020) |
|
6b |
372-3082
|
24V detergent pump |
1 |
(model no 908743020, 9087405020, 9087404020) (includes 7) |
|
7 |
372-3083
|
Peristaltic detergent pump head (OBSOLETE) |
1 |
(model no 908743020, 9087405020, 9087404020) |
|
8 |
572-3506
|
SENSOR WATER LEVEL PKD |
1 |
|
|
9 |
N/A
|
Not available |
1 |
(support water level sensor) |
|
10 |
572-3504
|
SILICONE HOSE L-300 PKD |
1 |
|
|
11 |
372-3084
|
Straight hose barb (pkg of 2) |
1 |
(model no 908743020, 9087405020, 9087404020) |
|
12 |
572-9214
|
Ecoflex detergent kit |
1 |
(model no 908743020, 9087405020, 9087404020) (includes 1-11) |
|
13 |
272-3755
|
Chemical tank adapter |
1 |
|
|
14 |
272-3756
|
Chemical mix level sensor |
1 |
|
|
15 |
272-3754
|
Detergent adapter kit |
1 |
(includes 13 and 15) |
|
