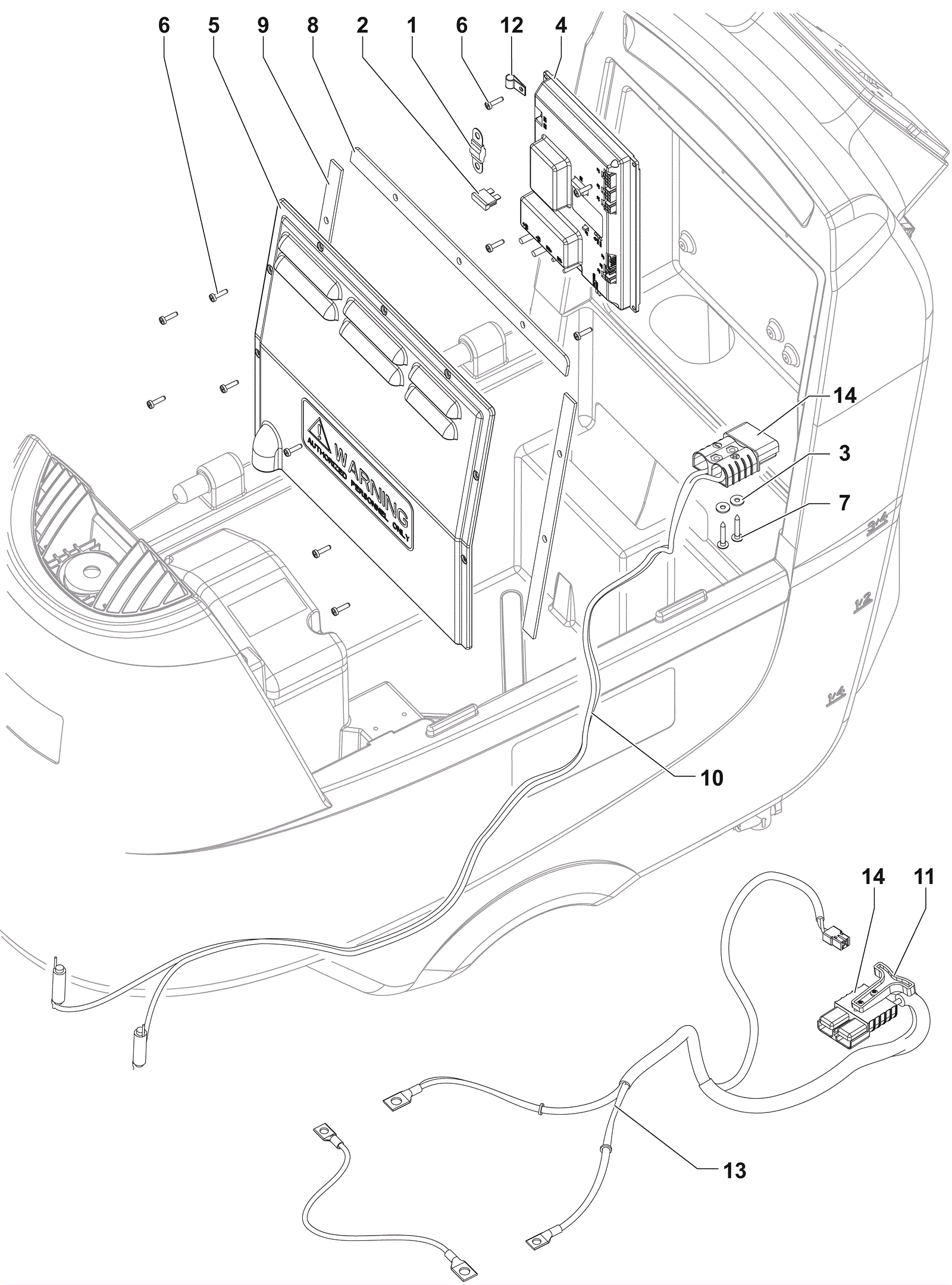

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-8388
|
100amp fuse |
1 |
|
|
2 |
572-3491
|
FUSE BLADE 3A PKD |
1 |
|
|
3 |
N/A
|
Not available |
4 |
(only available in kit) (washer) |
|
4 |
572-3492
|
CARD ELECTRONIC FUNCTIONS PKD |
1 |
|
|
5 |
572-3493
|
COVER BOX ELECTRIC COMP. |
1 |
|
|
6 |
N/A
|
Not available |
11 |
(only available in kit) (screw) |
|
7 |
N/A
|
Not available |
3 |
(only available in kit) (screw) |
|
8 |
N/A
|
Not available |
1 |
(only available in kit) (gasket) |
|
9 |
N/A
|
Not available |
2 |
(only available in kit) (gasket) |
|
10 |
572-3494
|
HARNESS MACHINE SC500 20B PKD |
1 |
|
|
11 |
572-3498
|
HANDLE FOR BATTERY CONNECTOR |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(only available in kit) (clamp) |
|
13 |
572-3500
|
HARNESS BATTERY US PKD |
1 |
|
|
14 |
572-3497
|
CONNECTOR RED 120A 2 PCS SET |
1 |
|
|
N/S |
572-9215
|
Fuse bolt down 30a sip |
1 |
|
|
N/S |
372-3069
|
50amp bolt down fuse |
1 |
|
|
N/S |
372-3070
|
Fuse holder |
2 |
|
|
KIT1 |
572-3430
|
GASKETS COVER KIT |
1 |
(includes 8 and 9) |
|
KIT2 |
572-3431
|
HARDWARE ELECT. COMPONENTS KIT |
1 |
(includes 3, 6-7 and 12) |
|
