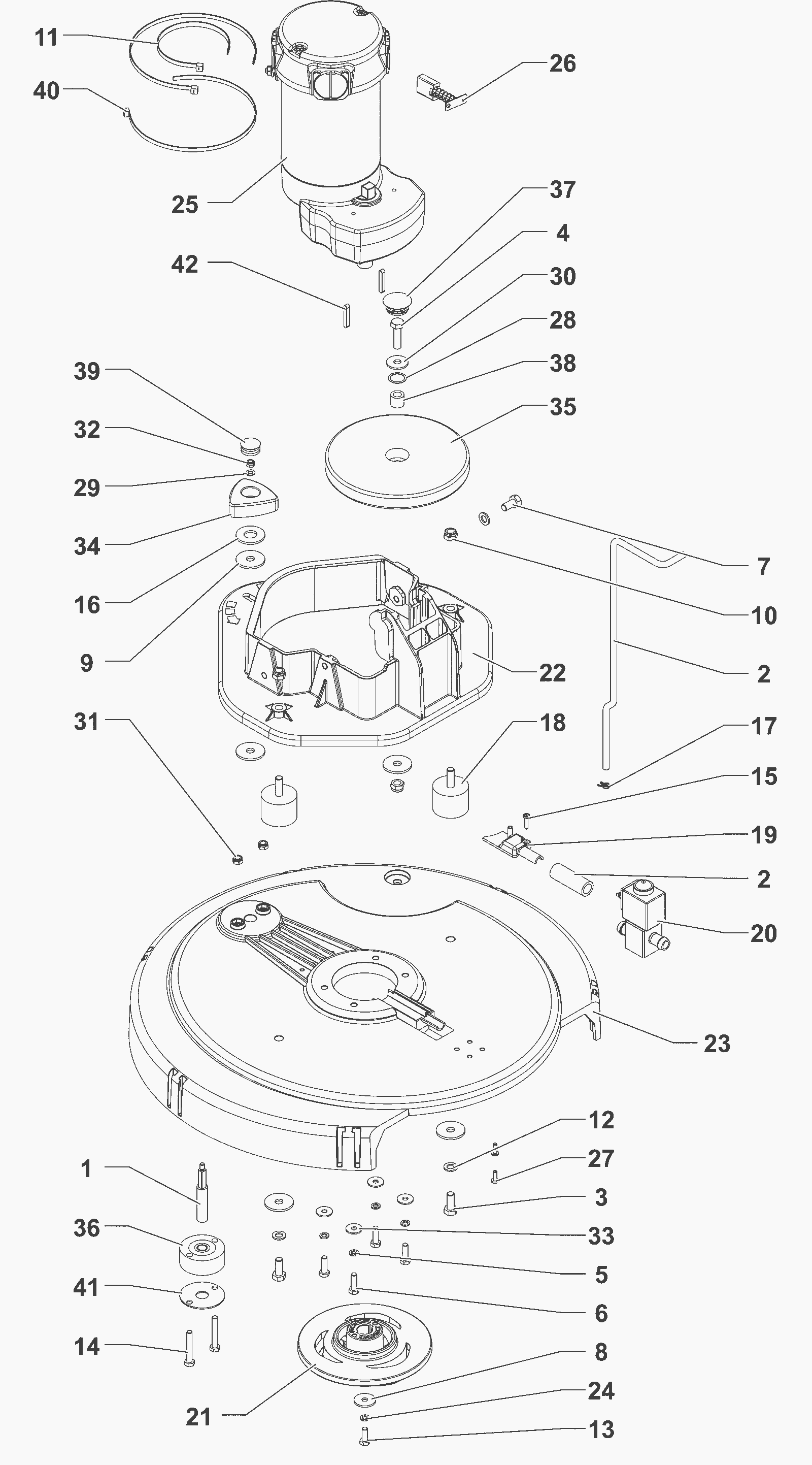

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(only available in kit) (pin) |
|
2 |
572-3429
|
HOSES BRUSH DECK KIT |
1 |
|
|
3 |
N/A
|
Not available |
2 |
(only available in kit) (screw) |
|
4 |
N/A
|
Not available |
1 |
(only available in kit) (screw) |
|
5 |
N/A
|
Not available |
5 |
(only available in kit) (washer) |
|
6 |
N/A
|
Not available |
4 |
(only available in kit) (screw) |
|
7 |
N/A
|
Not available |
3 |
(only available in kit) (nut) |
|
8 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
9 |
N/A
|
Not available |
5 |
(only available in kit) (wahser) |
|
10 |
N/A
|
Not available |
1 |
(only available in kit) (screw) |
|
11 |
N/A
|
Not available |
1 |
(only available in kit) (cable tie) |
|
12 |
N/A
|
Not available |
3 |
(only available in kit) (washer) |
|
13 |
N/A
|
Not available |
1 |
(only available in kit) (screw) |
|
14 |
N/A
|
Not available |
2 |
(only available in kit) (screw) |
|
15 |
N/A
|
Not available |
2 |
(only available in kit) (screw) |
|
16 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
17 |
N/A
|
Not available |
1 |
(only available in kit) (clamp) |
|
18 |
272-1919
|
Vibration damping M8 (set of 2) |
1 |
|
|
19 |
572-3484
|
COVER SOLUTION HOSE SUPPORT PK |
1 |
|
|
20 |
272-5487
|
24V solenoid valve |
1 |
|
|
21 |
572-3485
|
HUB BRUSH PKD |
1 |
|
|
22 |
572-3486
|
PLATE DECK BRUSH HOLDER PKD |
1 |
|
|
23 |
572-3487
|
DECK BRUSH PKD |
1 |
|
|
24 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
25 |
572-3488
|
REDUCTION GEARMTR 450W 24V PKD |
1 |
|
|
26 |
272-6322
|
Carbon brush (4 pcs) |
1 |
|
|
27 |
N/A
|
Not available |
2 |
(only available in kit) (screw) |
|
28 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
29 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
30 |
N/A
|
Not available |
1 |
(only available in kit) (washer) |
|
31 |
N/A
|
Not available |
2 |
(only available in kit) (nut) |
|
32 |
N/A
|
Not available |
1 |
(only available in kit) (nut) |
|
33 |
N/A
|
Not available |
4 |
(only available in kit) (washer) |
|
34 |
N/A
|
Not available |
1 |
(only available in kit) (knob) |
|
35 |
N/A
|
Not available |
1 |
(only available in kit) (roller bumper) |
|
36 |
N/A
|
Not available |
1 |
(only available in kit) (buffer) |
|
37 |
N/A
|
Not available |
1 |
(only available in kit) (cap) |
|
38 |
N/A
|
Not available |
1 |
(only available in kit) (spacer) |
|
39 |
N/A
|
Not available |
1 |
(only available in kit) (knob cap) |
|
40 |
N/A
|
Not available |
2 |
(only available in kit) (cable tie) |
|
41 |
N/A
|
Not available |
1 |
(only available in kit) (plate) |
|
42 |
572-3489
|
KEY 5X5X30 UNI 6604A 2 PCS SET |
1 |
|
|
KIT1 |
172-4817
|
Bumper wheel kit |
1 |
(includes 4, 28, 30, 35 and 37-38) |
|
KIT2 |
572-3416
|
DECK BRUSH ADJUST. KIT |
1 |
(includes 1, 9, 14, 16, 29, 31-32, 34, 36, 39 and 41) |
|
KIT3 |
572-3417
|
HARDWARE BRUSH DECK KIT |
1 |
(includes 3, 5-8, 10-13, 15, 17, 24, 27, 33 and 40) |
|
