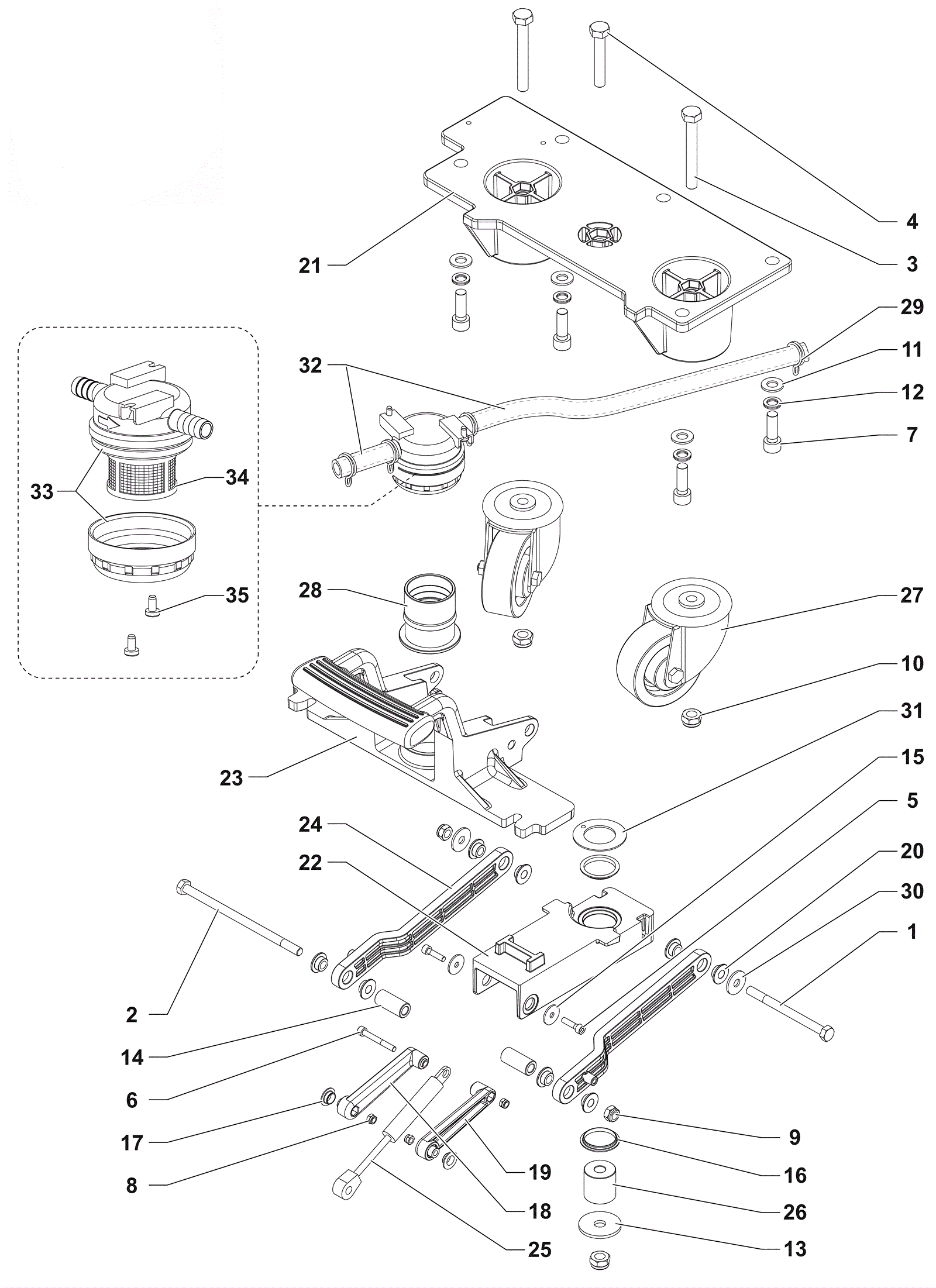

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
|
2 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
|
3 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
|
4 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
|
5 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
|
6 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
|
7 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (screw) |
|
8 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
3 |
(only available in kit) (nut) |
|
9 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (nut) |
|
10 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
3 |
(only available in kit) (nut) |
|
11 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (washer) |
|
12 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (washer) |
|
13 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (washer) |
|
14 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (spacer) |
|
15 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (washer) |
|
16 |
572-3513
|
BEARING FLANGE IGLIDUR 2 PCS |
2 |
|
|
17 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (bearing) |
|
18 |
572-3469
|
LEVER GAS SPRING LEFT PKD |
1 |
|
|
19 |
572-3472
|
SQUEEGEE SUPPORT UP PKD |
1 |
|
|
20 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
8 |
(only available in kit) (bushing) |
|
21 |
572-3471
|
REAR WHEELS-SQUEEGEE SUP PKD |
1 |
|
|
22 |
572-3472
|
SQUEEGEE SUPPORT UP PKD |
1 |
|
|
23 |
572-3473
|
SQUEEGEE SUPPORT DOWN PKD |
1 |
|
|
24 |
572-3474
|
LEVER SQUEEGEE LIFT 2 PCS SET |
1 |
|
|
25 |
572-3475
|
SPRING GAS 30 KG PKD |
1 |
|
|
26 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (spacer) |
|
27 |
372-1227
|
Rear wheel (pkg of 2) |
1 |
|
|
28 |
572-3476
|
FITTING PKD |
1 |
|
|
29 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (clamp) |
|
30 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (washer) |
|
31 |
572-3514
|
WASHER THRUST GTM 3254-015 PKD |
1 |
|
|
32 |
572-3428
|
HOSES SOLUTION SYSTEM KIT |
1 |
|
|
33 |
572-3477
|
Water filter |
1 |
|
|
34 |
572-3478
|
NET WATER FLTR REINFORCED PKD |
1 |
|
|
35 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
|
KIT1 |
572-3412
|
SUPPORT SQUEEGEE FIXING KIT |
1 |
(includes 1-15, 17, 20, 26, 29-30 and 35) |
|
