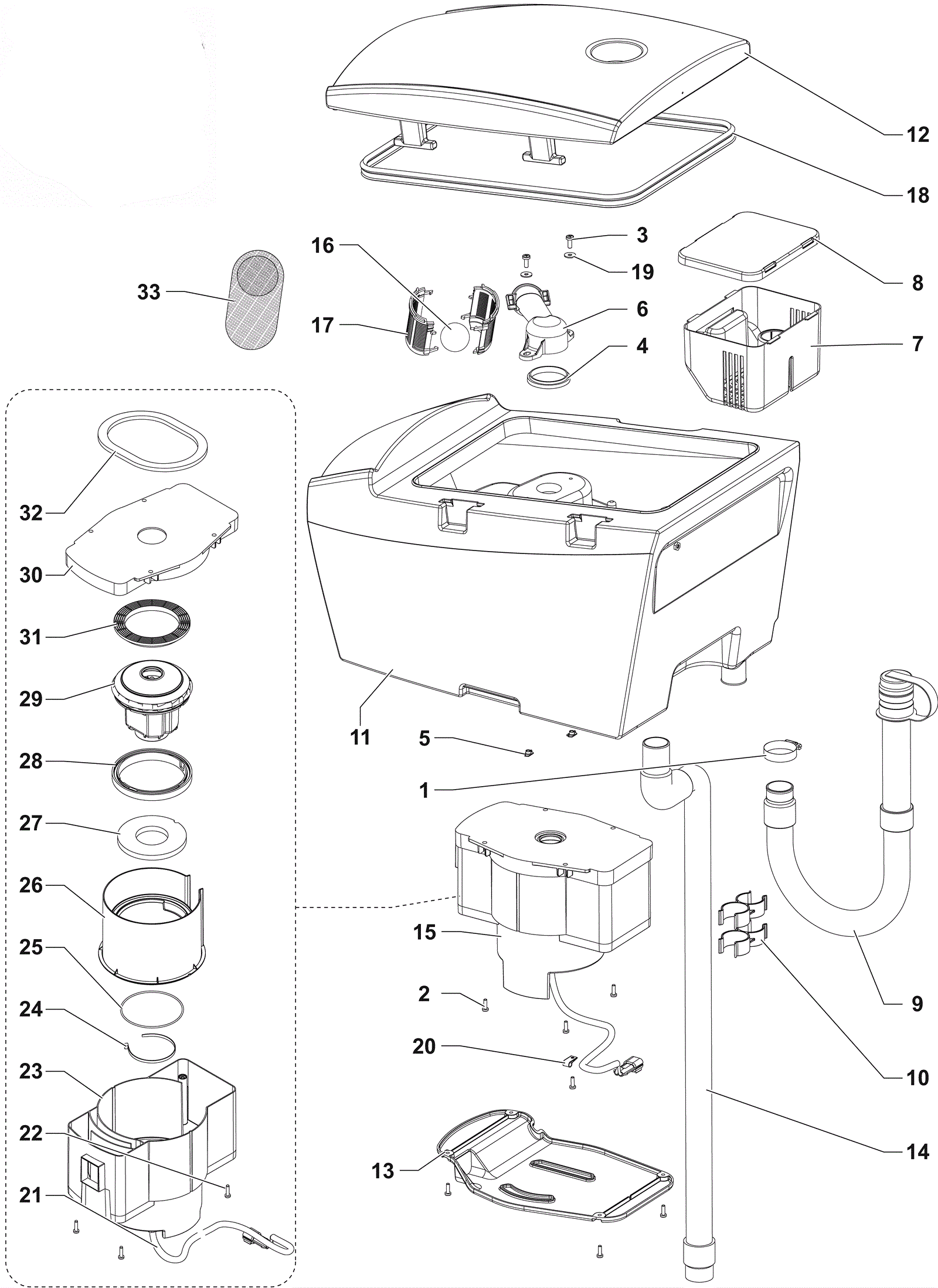

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 997-2000 Hose clamp 1
2 572-3407 HARDWARE RECOVERY TANK KIT 9 (only available in kit) (screw)
3 270-8255 Float holder cage kit 2 (only available in kit) (screw)
4 272-9867 Float support gasket 1
5 572-3407 HARDWARE RECOVERY TANK KIT 2 (only available in kit) (nut)
6 270-8255 Float holder cage kit 1 (only available in kit) (cage float)
7 372-1222 Debris tray 1 (only available in kit) (debris tray)
8 372-1222 Debris tray 1 (only available in kit) (debris tray cover)
9 572-3439 DRAIN HOSE PKD 1
10 572-3502 CLIP HOSE STOPPING 2 PCS SET 1
11 572-3440 TANK RECOVERY 40 LT GREY PKD 1
12 572-3441 COVER TANK GREY PKD 1
13 572-3442 COVER VAC MOTOR SOUNDPROOFING 1
14 572-3443 Suction hose 1
15a 572-3381 HIGH PWR VAC MTR 24V 450W KIT 1
15b 572-3515 MOTOR VACUUM 24V 280W CPL KIT 1
16 172-0192 Float ball 1
17 172-0517 Float cage half (2 required for full float cage) 1
18 272-8548 Recovery tank lid gasket 1
19 270-8255 Float holder cage kit 2 (only available in kit) (washer)
20 572-3407 HARDWARE RECOVERY TANK KIT 1 (only available in kit) (clamp)
21 572-3447 VACUUM MOTOR HARNESS PKD 1
22 572-3407 HARDWARE RECOVERY TANK KIT 4 (only available in kit) (screw)
23 572-3448 EXT INSULATION VAC MTR PKD 1
24 572-3407 HARDWARE RECOVERY TANK KIT 1 (only available in kit) (cable tie)
25 572-3406 GASKETS VACUUM MOTOR KIT 1 (only available in kit) (o-ring)
26 572-3449 INT INSULATION VAC MTR PKD 1
27 572-3406 GASKETS VACUUM MOTOR KIT 1 (only available in kit) (gasket collector)
28 572-3406 GASKETS VACUUM MOTOR KIT 1 (only available in kit) (gasket)
29 572-3450 VACUUM MOTOR 280W 24V PKD 1
30 572-3451 SUPPORT VAC MOTOR CARTRIDGE PK 1
31 572-3406 GASKETS VACUUM MOTOR KIT 1 (only available in kit) (lower domel)
32 572-3406 GASKETS VACUUM MOTOR KIT 1 (only available in kit) (vacuum motor gasket)
33 272-7206 Antifoaming filter 1
KIT1 270-8255 Float holder cage kit 1 (includes 4, 6 and 19)
KIT2 372-1222 Debris tray 1 (includes 7 and 8)
KIT3 572-3406 GASKETS VACUUM MOTOR KIT 1 (includes 25, 27-28 and 31-32)
KIT4 572-3407 HARDWARE RECOVERY TANK KIT 1 (includes 1-2, 5, 20, 22 and 24)
