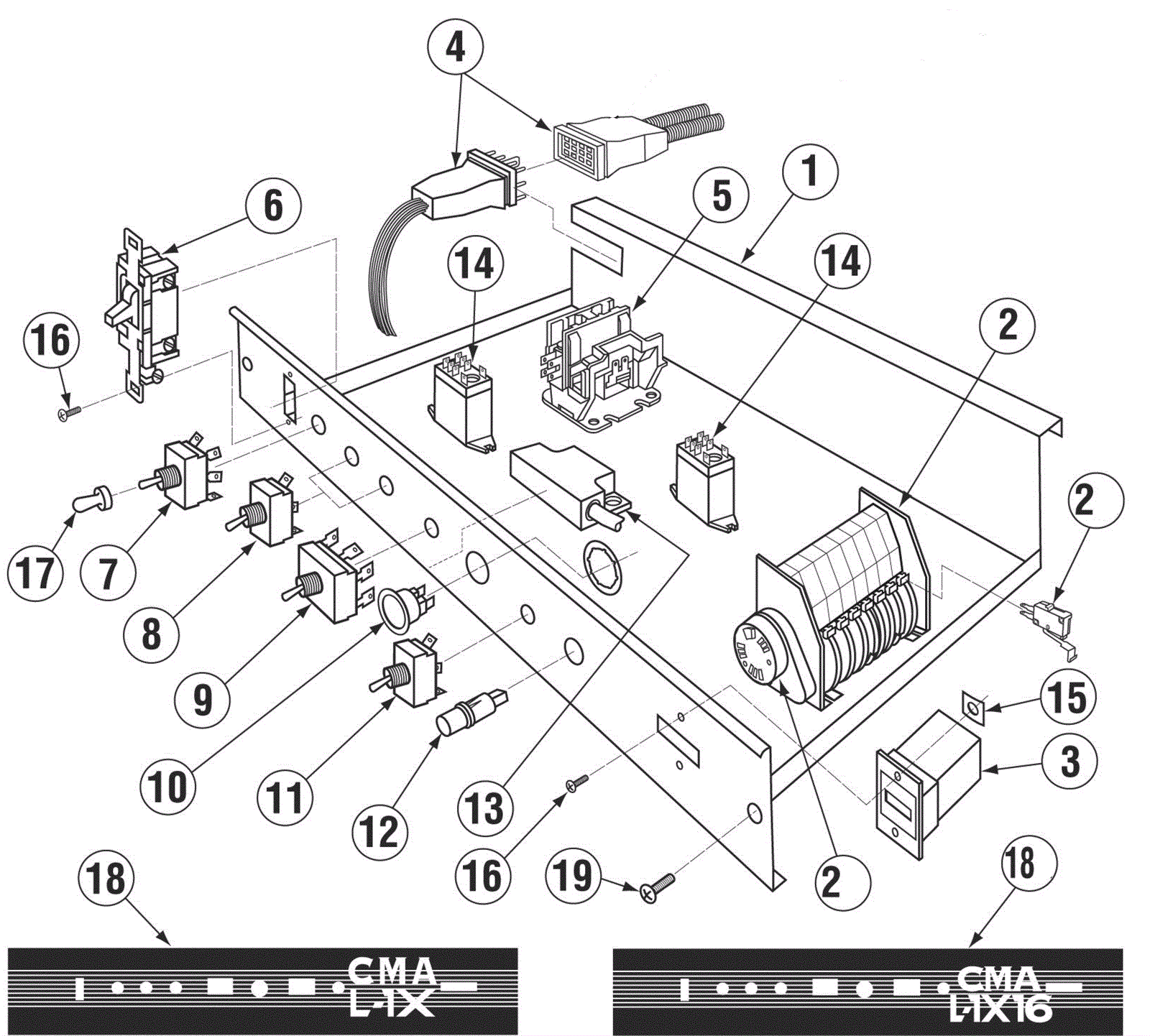

MODEL L-1X Control Box Assembly - Before 6.2007

#PartDescriptionPriceReqNotesAvailability
2a 350-0214 Timer 2 Min 8 Cam 115V/60Hz $280.90 1 usually ships 3-16 days
2b 350-0227 Micro Switch $6.53 8 ships same day
2c 350-0339 Timer Motor 2 Min $93.02 1 ships same day
3 350-1170 Counter - Panel Mount 115V/60Hz $38.63 1 usually ships 3-16 days
4 350-1256 Wiring Harness L-1X Models $245.00 1 usually ships 3-16 days
5 350-0195 Motor Contactor 115V 20 Amp SP $55.28 1 usually ships 3-16 days
6 350-0285 Master Switch 20 Amp $26.30 1 usually ships 3-16 days
7 350-0331 Delimer Switch DPDT 20 Amp 2 Pos $23.07 1 usually ships 3-16 days
8 350-1182 Toggle Switch (Momentary) Screw Term $15.21 2 usually ships 3-16 days
9 350-1168 Drain Toggle Switch (6 Terminal) $20.05 1 ships same day
10 350-0333 Running Light 115V(1 inchD) Green $22.37 1 usually ships 3-16 days
11 350-1183 Toggle Switch (Moment) .25 Flat Term $12.61 1 usually ships 3-16 days
12 350-0198 Control Box Light .5 inch Dia Red 115V/60 $10.98 1 usually ships 1-5 days
13 350-0361 Reed Switch - ISI $172.11 1 usually ships 3-16 days
14 350-0444 120V ice cube relay $25.70 1 usually ships 3-16 days
15 350-0580 8-32 PM Nut $0.28 2 usually ships 3-16 days
16 350-0570 8-32 x 1/2 Panhead Screw $0.90 4 ships same day
17 350-0323 Toggle Switch Rubber Boot $3.98 4 ships same day
19 350-0603 10-32 x 3/8 Truss Head Screw $0.90 2 usually ships 3-16 days
