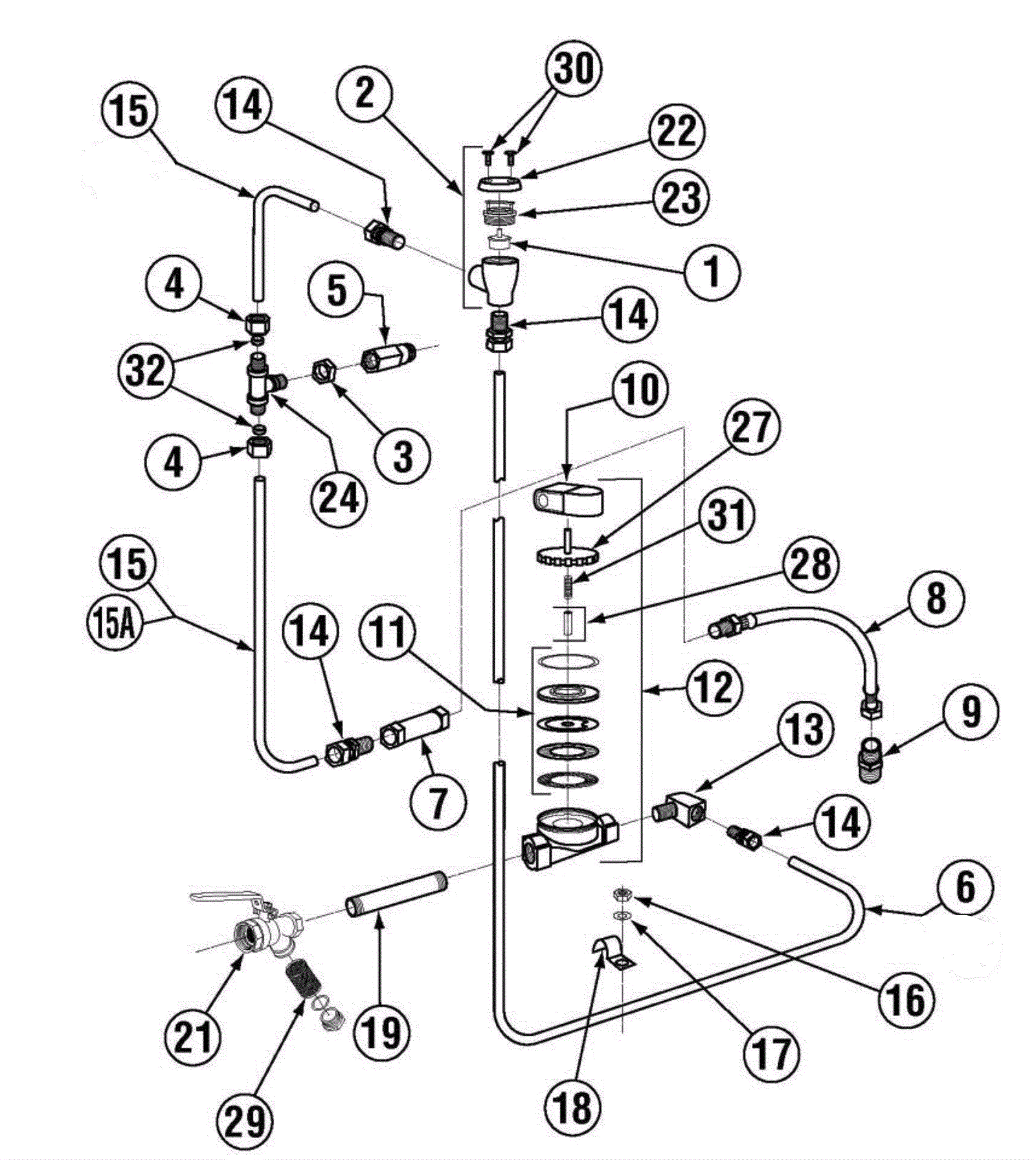

MODEL L-1X Plumbing Assembly - After 6.2013

#PartDescriptionPriceReqNotesAvailability
1 350-1201 1/2 Vac Breaker Repair Kit Watts $15.76 1 ships same day
2 350-1202 Vacuum Breaker 1/2 inch $87.58 1 usually ships 3-16 days
3 350-0475 1/2 Jamb Nut Thin Pattern $7.24 2 usually ships 3-16 days
4 350-0504 5/8 Compression Fitting Nut $4.70 2 usually ships 3-16 days
5 350-0496 Sprinkler Head Assembly 1/2 inch NPT $10.06 1 usually ships 3-16 days
6a 350-1274 L-1C inchU inch Tube $57.96 1 usually ships 3-16 days
6b 350-1275 L-1X16 inchU inch Tube $35.94 1 usually ships 3-16 days
7 350-0471 1/2 Ball Check Valve $39.67 1 usually ships 3-16 days
8 350-2225 1/2 x 2 1/2 braided hose $34.67 1 ships same day
9 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
10 350-0483 Solenoid Coil JE 115V (3/4 &1/2) $67.49 4 usually ships 3-16 days
11 350-0466 1/2 Water Solenoid Repair Kit JE $99.79 1 usually ships 3-16 days
12 350-1191 1/2 Water Sol Valve JE120/60 $227.36 1 usually ships 3-16 days
13 350-0491 1/2 90Deg Street Elbow $17.79 1 usually ships 3-16 days
14 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 6 usually ships 3-16 days
15a 350-1277 L-1X inchL inch Tube $41.30 1 usually ships 3-16 days
15b 350-1278 L-1X16   inchL inch Tube $46.00 1 usually ships 3-16 days
16 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
17 350-0589 1/4 SS Washer $0.90 1 usually ships 3-16 days
18 350-0480 1/2 Plumbing Strap SS $4.88 1 usually ships 3-16 days
19 350-0493 Nipple Brass 1/2 x 5 $11.96 1 usually ships 3-16 days
20 350-1190 1/2 Y Strainer $40.82 1 usually ships 3-16 days
21 350-2062 1/2 Strainer Ball Valve NPT $49.42 1 usually ships 3-16 days
22 350-0485 3/4 Vac Breaker Cap SS $11.83 1 usually ships 3-16 days
23 350-1203 1/2 Vac Breaker Bonnet Brass Watt $22.95 1 ships same day
24 350-0490 Tee 1/2 C x 1/2 C x 1/2 Male $44.78 1 usually ships 3-16 days
25 350-0487 Nipple Brass 1/2 x 1 1/2 $7.71 1 usually ships 3-16 days
27 350-1193 1/2 Water Solenoid Bonnet $81.01 1 usually ships 3-16 days
28 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
29 350-2063 1/2 Ball Valve Strainer Only $1.75 1 usually ships 3-16 days
32 350-0505 5/8 Compression Fitting Ring $1.30 2 usually ships 3-16 days
