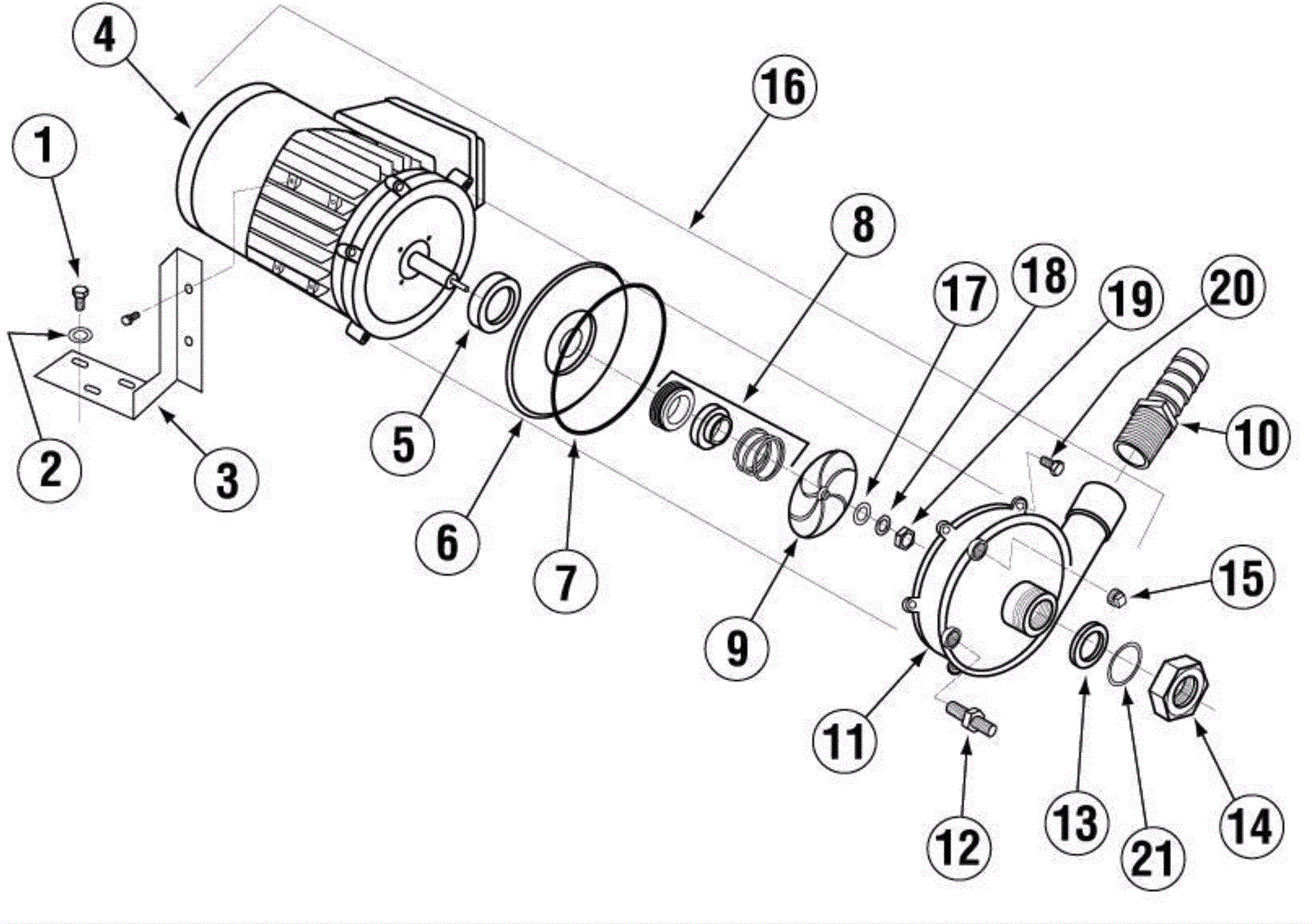

MODEL L-1X Pump Assembly - Between 8.2009 to 5.2018

#PartDescriptionPriceReqNotesAvailability
1 350-0568 5/16-18 x 5/8 Hexhead Bolt $0.66 3 usually ships 3-16 days
2 350-0590 5/16 SS Washer $0.90 3 ships same day
7 350-1163 Volute O-Ring For SS Pump $10.57 1 usually ships 3-16 days
8 350-0095 Pump Seal Kit for SS Pump $33.38 1 usually ships 3-16 days
9 350-1155 Pump Impeller SS Threaded $80.50 1 usually ships 3-16 days
10 350-2113 1 inch MPT x 1 inch Barb  Brass (180T units) $28.88 1 usually ships 1-5 days
11 350-1246 SS Pump Cover $143.86 1 usually ships 3-16 days
12 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
13 350-0098 Slip Joint Nut O-Ring Gasket Buna $0.90 1 ships same day
14 350-0096 Slip Joint Nut 1 1/2 x 1 1/4 $14.82 1 usually ships 1-5 days
15 350-0108 3/8 Male Plug - Sq Head $5.02 1 usually ships 1-5 days
20 350-0577 10 mm Socket Head Screw $0.98 6 usually ships 3-16 days
21 350-0097 Slip Joint Nut Friction Ring Plastic $3.28 1 ships same day
