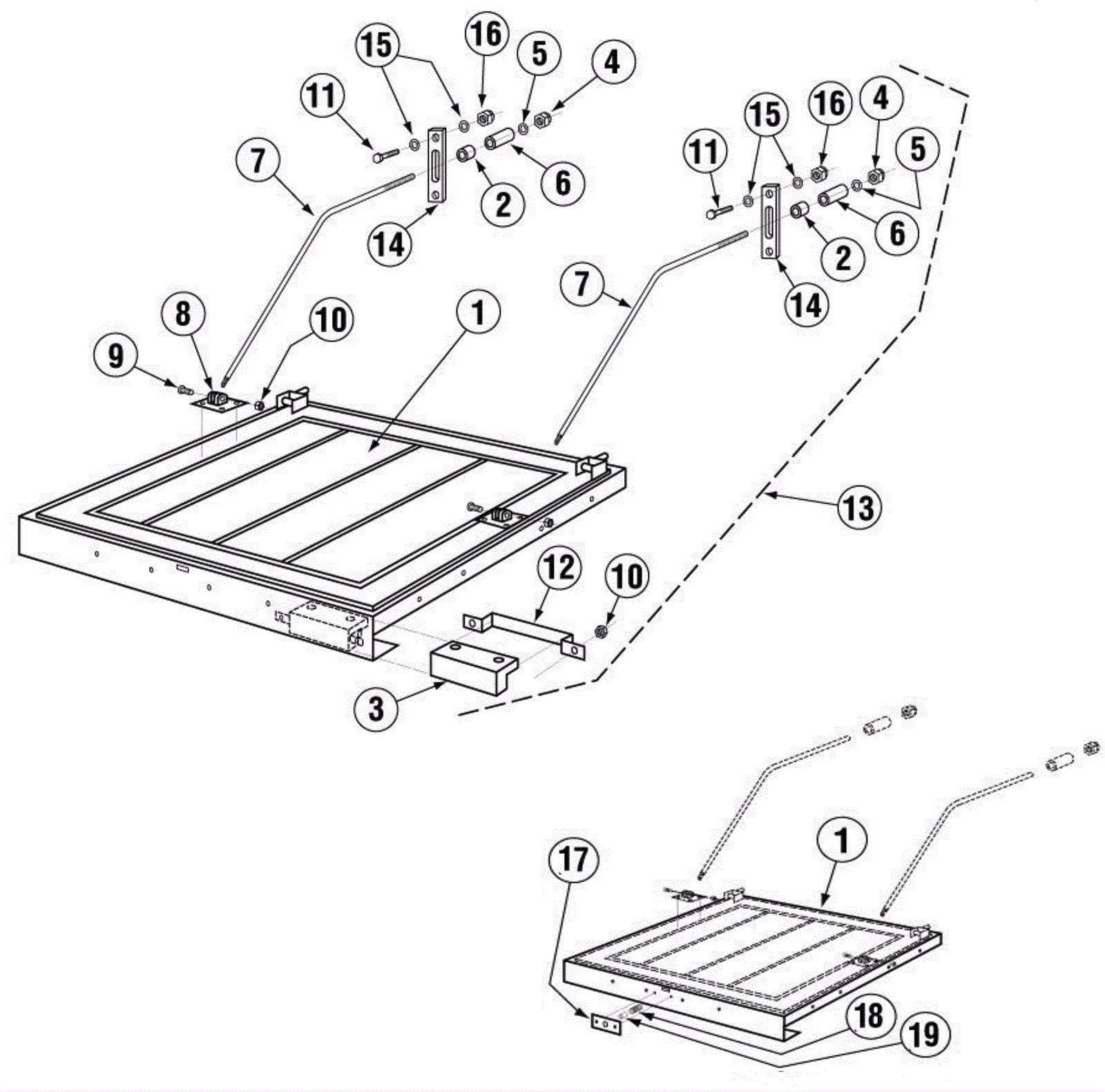

MODEL L-1X Door Assembly - Old Style

#PartDescriptionPriceReqNotesAvailability
1a 350-1292 L-1X /L-1C Inner & Outer Door Ass'y $1,430.95 1 usually ships 3-16 days
1b 350-1258 L-1C Door Complete $1,020.00 2 usually ships 3-16 days
2 350-0405 Door Rod Spacer $0.90 1 usually ships 3-16 days
3 350-0369 Kynar Reed Switch Magnet Only $40.22 2 usually ships 3-16 days
4 350-1655 5/16-18 Nylon Insert Lock Nut $0.99 2 usually ships 7-10 days
5 350-0590 5/16 SS Washer $0.90 2 ships same day
6 350-1266 Door Stop Undercounter (Parallel) $5.75 2 usually ships 3-16 days
7 350-1301 L-1C/L-1X Door Support Rod $62.05 2 usually ships 3-16 days
8 350-1300 L-1C/L-1X Door Clevis $24.82 1 usually ships 3-16 days
9 350-1662 8-32 x 1 Panhead Screw $0.90 3 usually ships 3-16 days
10 350-0591 8-32 Nylon Lock Nut $0.90 2 usually ships 3-16 days
11 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 4 usually ships 3-16 days
12 350-0373 Reed Switch Magnet Bracket (L-1X) $14.43 1 usually ships 3-16 days
13 350-1259 L-1X Door Complete $1,653.94 1 (includes 1, 3-10 and 12-13) usually ships 3-16 days
15 350-0589 1/4 SS Washer $0.90 8 usually ships 3-16 days
16 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
17 350-1261 L-1C Door Catch Plate $6.76 1 usually ships 3-16 days
18 350-1263 L-1C Catch Ball Spring $15.36 1 usually ships 3-16 days
19 350-1262 L-1C Catch Hemi-Ball SS $13.34 1 usually ships 3-16 days
