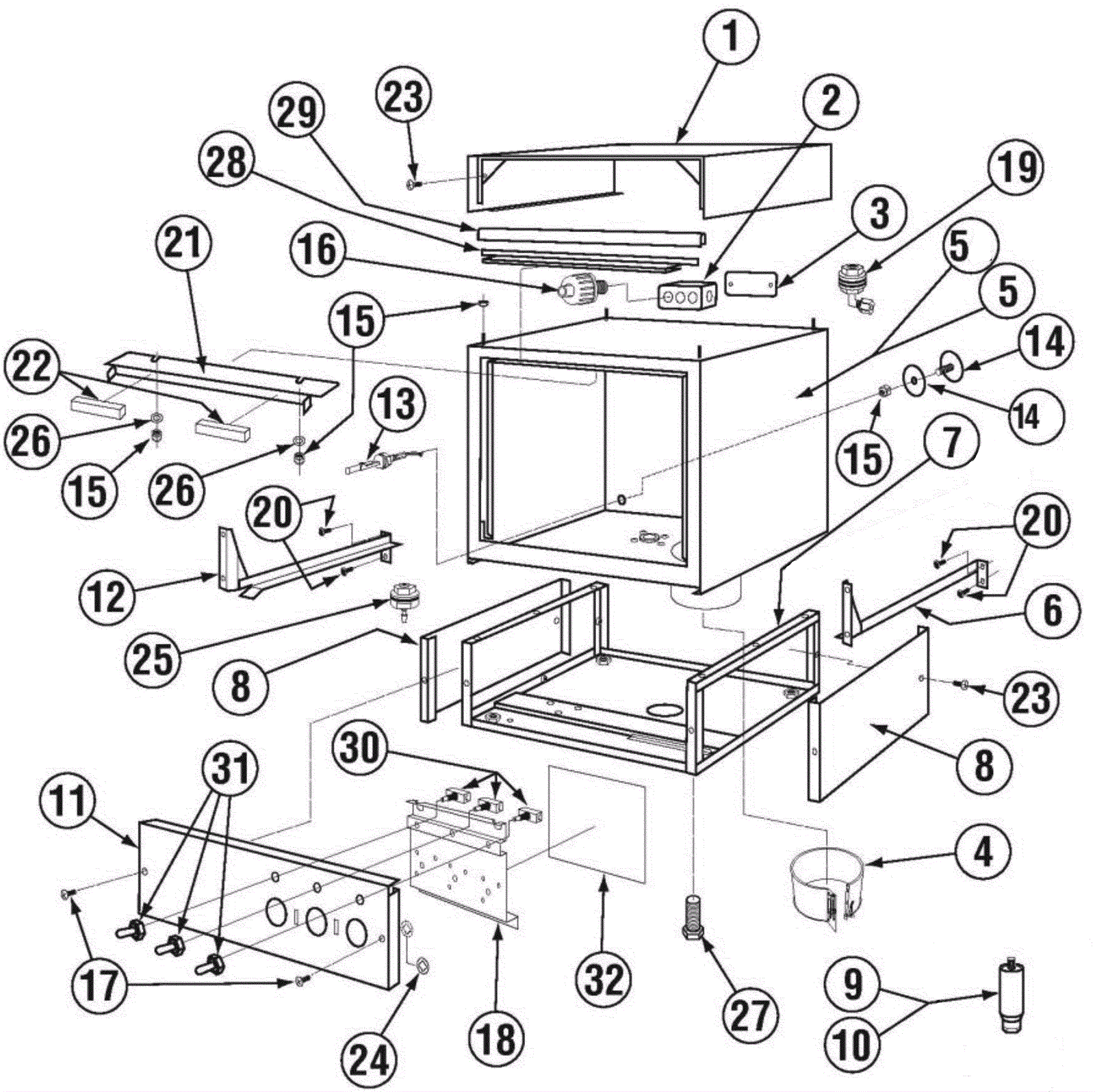

MODEL L-1X Cabinet Assembly - After 6.2007

#PartDescriptionPriceReqNotesAvailability
1 350-1286 L-1X/16 Top Cover (2007) $355.09 1 usually ships 3-16 days
3 350-1181 Undercounter Bell Box Cover $3.36 1 usually ships 3-16 days
4 350-1232 Band Sump Heater 115V $301.68 1 ships same day
5a 350-1281 L-1X Body $1,403.00 1 usually ships 3-16 days
5b 350-1282 Body L-1X 16 $2,231.08 1 usually ships 3-16 days
6 350-1295 L-1X, GL-X Tray Track RH (5-02) $42.08 1 usually ships 3-16 days
7a 350-1283 L1-X/L1-X16 Stand Closed Bottom $571.81 1 usually ships 3-16 days
8 350-1284 Panels For L-1X Open Stand $69.44 2 usually ships 3-16 days
9 350-0642 Leg 4 inch 1/2-13 Thread $42.09 4 usually ships 3-16 days
11 350-1298 Peri Pump Panel w/Prime Switch $84.18 1 usually ships 3-16 days
12 350-1296 L-1X, GL-X Tray Track LH (5-02) $38.90 1 usually ships 3-16 days
13 350-1505 Liquid Level Switch SS $161.06 1 usually ships 3-16 days
14a 350-0749 Hole Stopper 1 1/4 inch $11.21 1 usually ships 3-16 days
14b 350-0498 Hole Stopper Gasket 1 1/2 inch OD $3.22 1 usually ships 3-16 days
15 350-0573 1/4-20 Nylon Lock Nut $0.90 9 ships same day
17 350-0605 10-32 x 5/8 Panhead Screw $0.90 2 usually ships 3-16 days
19 350-1172 Chemical Tube Bulkhead $45.35 2 ships same day
20 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
21 350-1783 Body Magnet Holder $30.00 1 usually ships 3-16 days
22 350-0371 Door Magnet (L-1X/CMA-180UC/GL-X) $12.09 2 usually ships 3-16 days
23 350-0603 10-32 x 3/8 Truss Head Screw $0.90 10 usually ships 3-16 days
24 350-1217 Nylon Retaining Washer 8-32 $0.90 2 usually ships 3-16 days
25 350-1173 Sani Bulkhead Fitting Assy $54.19 1 ships same day
26 350-0589 1/4 SS Washer $0.90 2 usually ships 3-16 days
27 350-0667 Leg Adjusters $6.90 4 usually ships 3-16 days
28 350-1767 Gasket Bracket $41.29 1 usually ships 3-16 days
29 350-1768 Door Gasket (CMA-180UC/L-1X-16) $8.18 1 ships same day
30 350-1185 Primer Switch Push Button $23.75 3 usually ships 3-16 days
31 350-1186 Push Button Switch Rubber Boot $8.41 3 usually ships 3-16 days
32 350-1205 Peri Pump Motor Splash Shield-Mylar $4.20 1 usually ships 3-16 days
