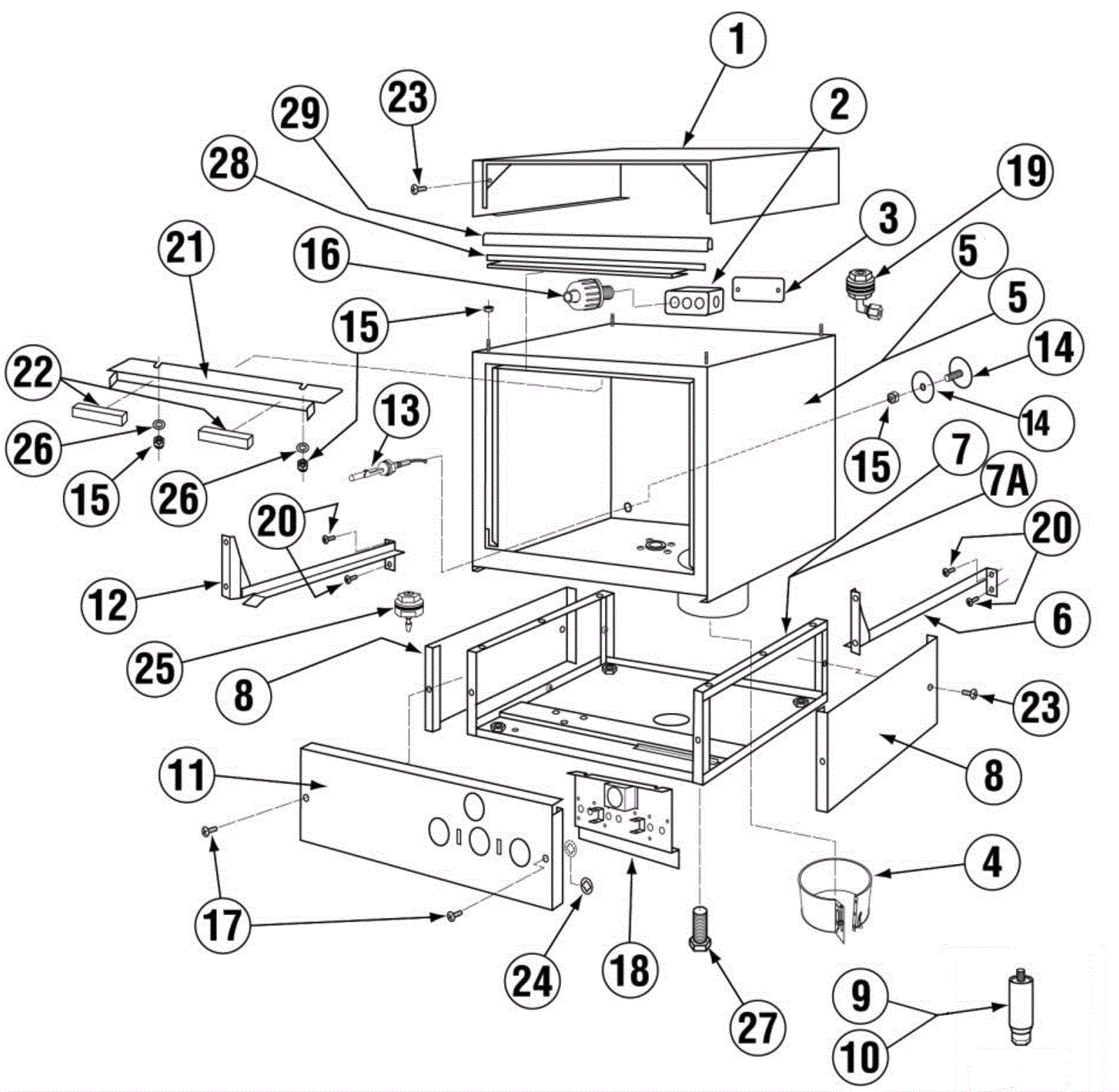

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1286
|
L-1X/16 Top Cover (2007) |
1 |
|
|
3 |
350-1181
|
Undercounter Bell Box Cover |
1 |
|
|
4 |
350-1232
|
Band Sump Heater 115V |
1 |
|
|
5a |
350-1281
|
L-1X Body |
1 |
|
|
5b |
350-1282
|
Body L-1X 16 |
1 |
|
|
6 |
350-1295
|
L-1X, GL-X Tray Track RH (5-02) |
1 |
|
|
7a |
350-1283
|
L1-X/L1-X16 Stand Closed Bottom |
1 |
|
|
8 |
350-1284
|
Panels For L-1X Open Stand |
2 |
|
|
9 |
350-0642
|
Leg 4 inch 1/2-13 Thread |
4 |
|
|
11 |
350-1298
|
Peri Pump Panel w/Prime Switch |
1 |
|
|
12 |
350-1296
|
L-1X, GL-X Tray Track LH (5-02) |
1 |
|
|
13 |
350-1505
|
Liquid Level Switch SS |
1 |
|
|
14a |
350-0749
|
Hole Stopper 1 1/4 inch |
1 |
|
|
14b |
350-0498
|
Hole Stopper Gasket 1 1/2 inch OD |
1 |
|
|
15 |
350-0573
|
1/4-20 Nylon Lock Nut |
9 |
|
|
17 |
350-0605
|
10-32 x 5/8 Panhead Screw |
2 |
|
|
18 |
350-1297
|
Peri Pump Mount w/Prime Switch |
1 |
|
|
19 |
350-1172
|
Chemical Tube Bulkhead |
2 |
|
|
20 |
350-0575
|
1/4-20 x 3/4 Hexhead Bolt |
4 |
|
|
21 |
350-1783
|
Body Magnet Holder |
1 |
|
|
22 |
350-0371
|
Door Magnet (L-1X/CMA-180UC/GL-X) |
2 |
|
|
23 |
350-0603
|
10-32 x 3/8 Truss Head Screw |
10 |
|
|
24 |
350-1217
|
Nylon Retaining Washer 8-32 |
2 |
|
|
25 |
350-1173
|
Sani Bulkhead Fitting Assy |
1 |
|
|
26 |
350-0589
|
1/4 SS Washer |
2 |
|
|
27 |
350-0667
|
Leg Adjusters |
4 |
|
|
28 |
350-1767
|
Gasket Bracket |
1 |
|
|
29 |
350-1768
|
Door Gasket (CMA-180UC/L-1X-16) |
1 |
|
|
