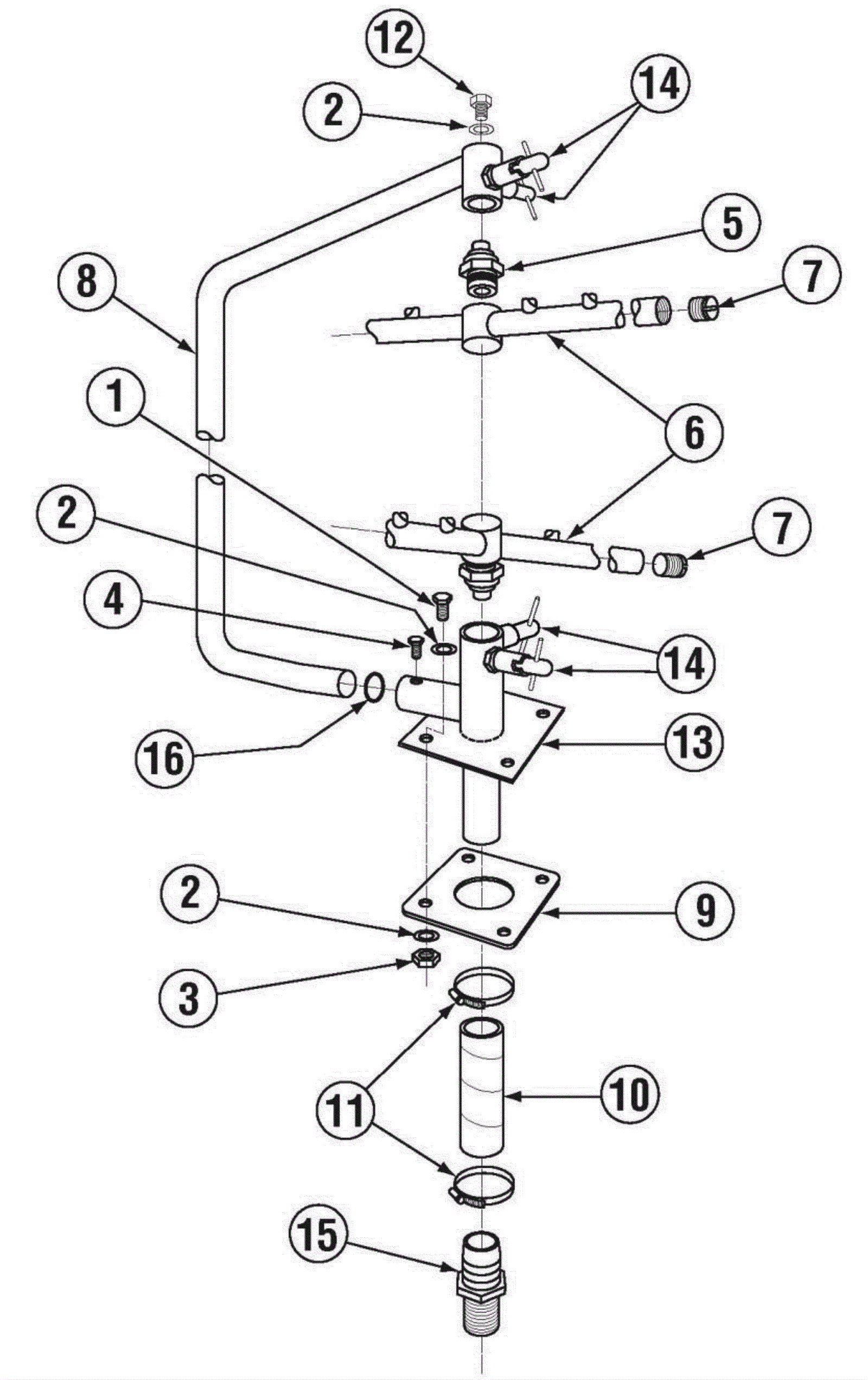

EST VENTLESS Spray Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0575 1/4-20 x 3/4 Hexhead Bolt $0.90 4 usually ships 3-16 days
2 350-0589 1/4 SS Washer $0.90 9 ships same day
3 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
5 350-0160 Spray Arm Bearing $47.12 2 ships same day
7 350-0155 Spray Arm End Plug SS $5.02 4 ships same day
8 350-0144 Spray Manifold EST/N-EVA $150.50 1 usually ships 1-5 days
9 350-1255 Square Manifold Gasket $2.71 1 ships same day
10 350-1140 Discharge Hose (EVA/EVAC) 8 3/4 inch $16.61 1 usually ships 3-16 days
11 350-1118 Hose Clamp Size #16  1 inch $2.60 2 usually ships 3-16 days
13 350-0169 Lower Spray Base EST $150.50 1 usually ships 1-5 days
14 350-0176 Spray Base Pull Lock Pin $38.41 4 ships same day
15 350-2112 1 inch MPT x 1 inch Barb PVC Sch 80 $4.13 1 usually ships 1-5 days
16 350-0127 Spray Base O-Ring (EVA) $0.20 1 usually ships 1-5 days
