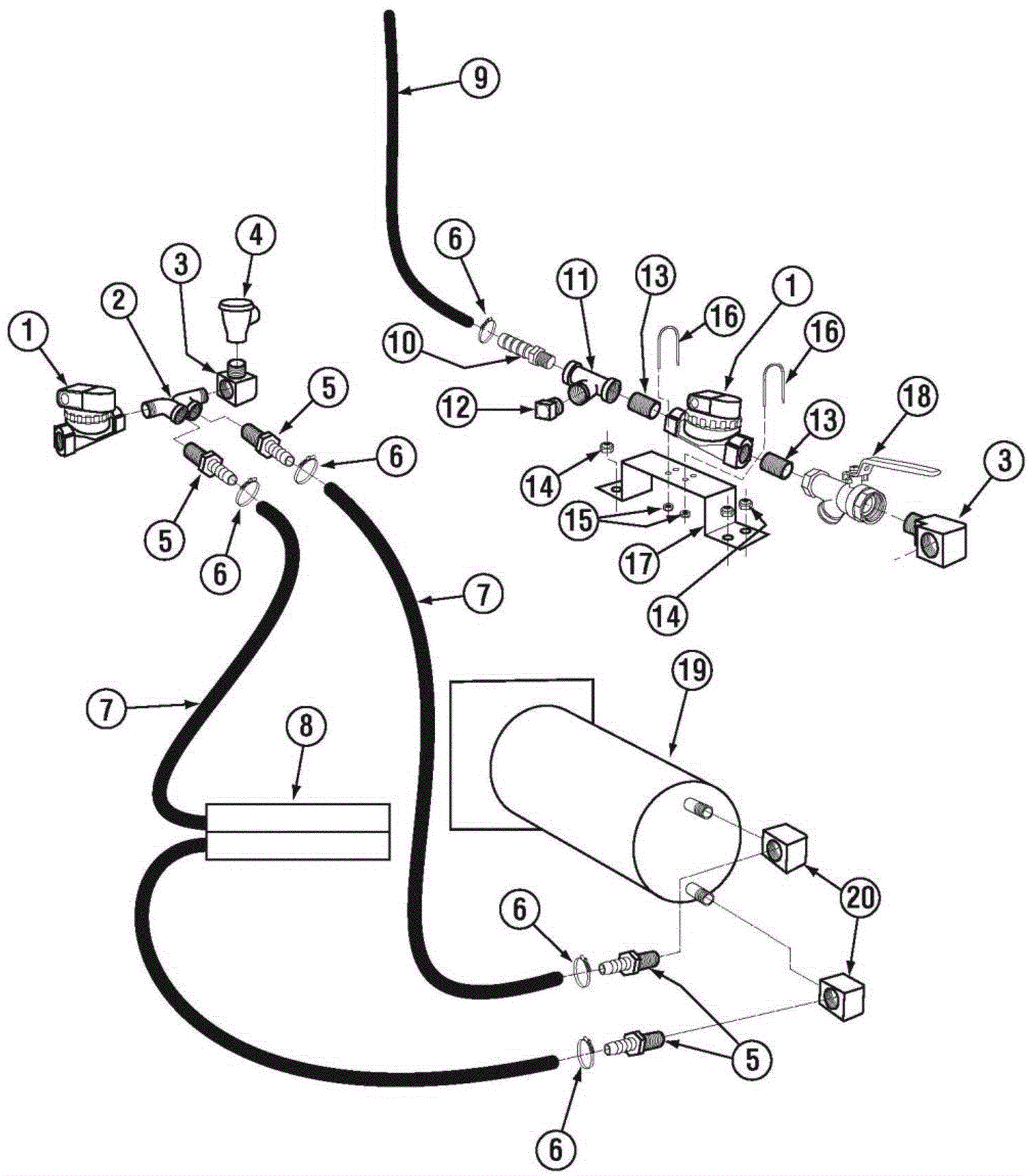

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1191
|
1/2 Water Sol Valve JE120/60 |
1 |
|
|
2 |
350-1626
|
Booster Heater 3/4 In/Out Adapter |
1 |
|
|
3 |
350-0491
|
1/2 90Deg Street Elbow |
2 |
|
|
4 |
350-1202
|
Vacuum Breaker 1/2 inch |
1 |
|
|
5 |
350-2036
|
1/2MPT x 1/2 Hose Barb Straight |
4 |
|
|
6 |
350-1119
|
Hose Clamp #4 Size #002 SS |
6 |
|
|
8 |
350-1108
|
CMA-180-VL Condenser Coil |
1 |
|
|
9 |
350-1127
|
Flexible Black Hose 3/8 inch Horizon 250 |
1 |
|
|
11 |
350-0488
|
1/2 Tee F x F x F Brass |
1 |
|
|
12 |
350-1629
|
1/2 inch MIP Plug Brass Sq. Head |
1 |
|
|
13 |
350-0487
|
Nipple Brass 1/2 x 1 1/2 |
2 |
|
|
14 |
350-0573
|
1/4-20 Nylon Lock Nut |
4 |
|
|
15 |
350-0573
|
1/4-20 Nylon Lock Nut |
4 |
|
|
17 |
350-0755
|
Plumbing Support Bracket (Long) |
1 |
|
|
18 |
350-2062
|
1/2 Strainer Ball Valve NPT |
1 |
|
|
19 |
350-1959
|
CMA-180 Booster Tank (3 Studs) |
1 |
|
|
20 |
350-1615
|
Street Elbow 1/2 inch SS |
2 |
|
|
