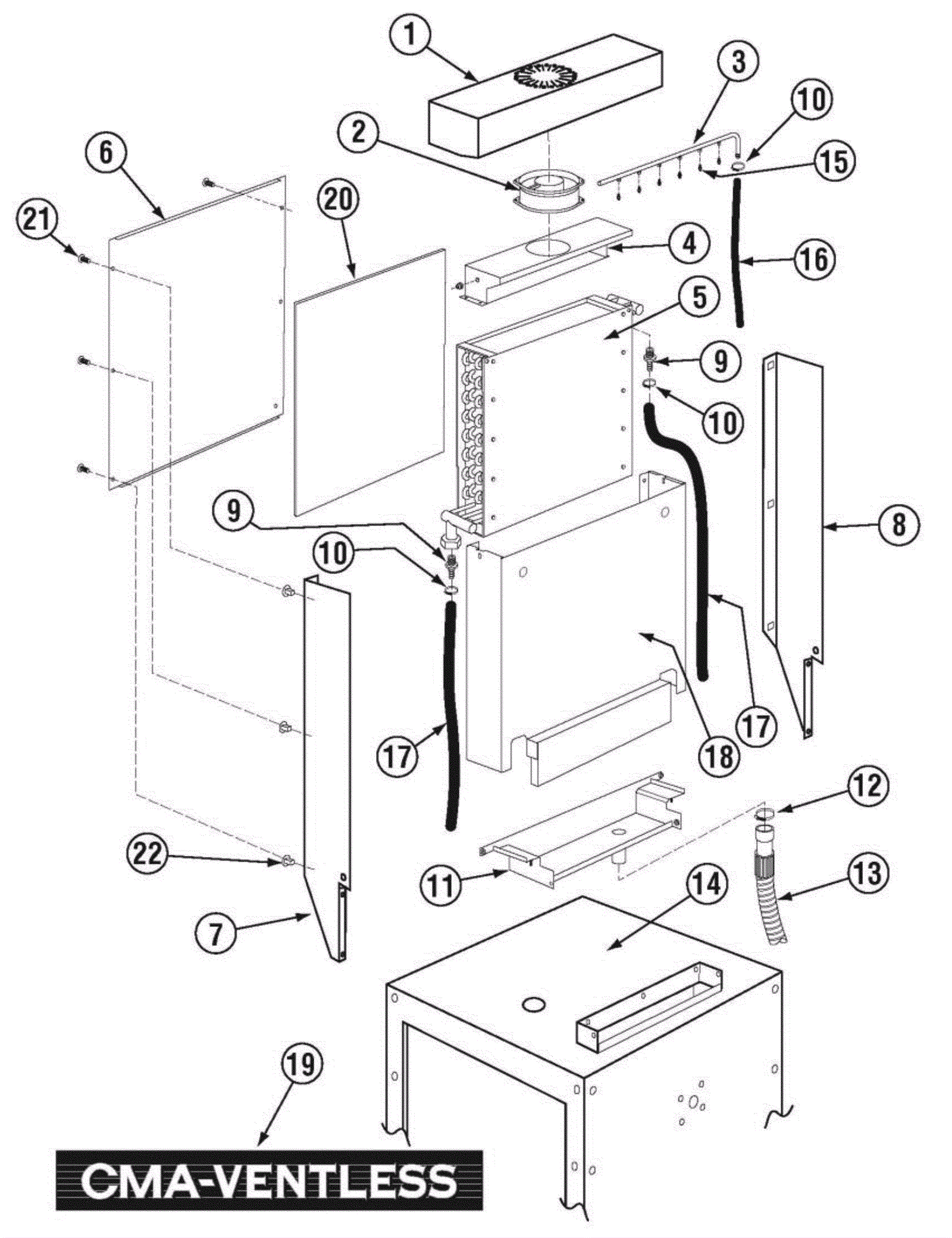

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1974
|
CMA-180 Ventless Top Cover |
1 |
|
|
2 |
350-1106
|
Ventless Motor Fan 115V |
1 |
|
|
3 |
350-1109
|
CMA-180-VL Battery Self Clnng Pipe |
1 |
|
|
5 |
350-1108
|
CMA-180-VL Condenser Coil |
1 |
|
|
6 |
350-1975
|
CMA-180 Ventless Rear Cover |
1 |
|
|
9 |
350-2036
|
1/2MPT x 1/2 Hose Barb Straight |
2 |
|
|
10 |
350-1119
|
Hose Clamp #4 Size #002 SS |
3 |
|
|
11 |
350-1973
|
CMA-180 Ventless Drain Pan |
1 |
|
|
12 |
350-1118
|
Hose Clamp Size #16 1 inch |
1 |
|
|
13 |
350-1830
|
Drain Hose with Goose Neck (9-06) |
1 |
|
|
14 |
350-1972
|
CMA-180 Ventless Wrapper |
1 |
|
|
15 |
350-0890
|
UC 50e Stainless Steel Rinse Nozzle |
7 |
|
|
16 |
350-1127
|
Flexible Black Hose 3/8 inch Horizon 250 |
1 |
|
|
17 |
350-1126
|
Flexible Hose 1/2 inch Horizon 250 |
2 |
|
|
