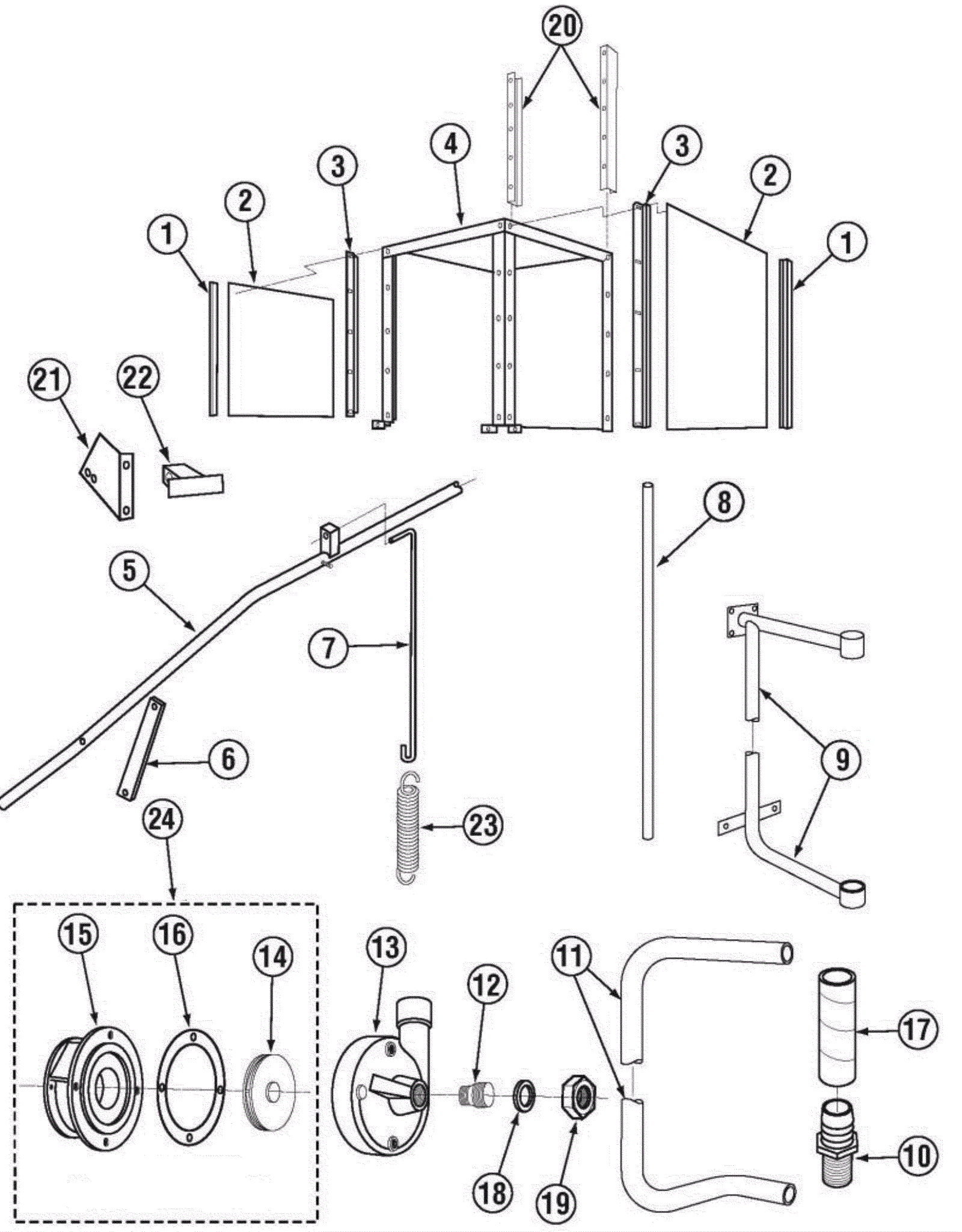

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0452
|
EZ Glide Door Guide 36 1/4 inch (180T) |
6 |
|
|
2 |
350-1919
|
CMA-180 Scullery Door |
3 |
|
|
3 |
350-1963
|
CMA-180 Scullery Door Guide 34 3/4 inch |
6 |
|
|
5 |
350-0422
|
Door Handle CMA-180T Straight Unit |
1 |
|
|
6 |
350-0784
|
Door Handle Link (S) 2010 |
2 |
|
|
7 |
350-0395
|
Door Spring Extension Rod(CMA-180T) Left |
2 |
|
|
8 |
350-1308
|
Booster Heater Water Line CMA-180T |
2 |
|
|
9 |
350-1898
|
CMA-180T Final Rinse Manifold |
1 |
|
|
10 |
350-2113
|
1 inch MPT x 1 inch Barb Brass (180T units) |
1 |
|
|
12 |
350-0099
|
1 1/2 inch x 1 1/4 inch Adapter |
1 |
|
|
13 |
350-0090
|
Pump Cover Large |
1 |
|
|
14 |
350-0088
|
Impeller Closed 4 1/2 inch |
1 |
|
|
15 |
350-0086
|
Pump Base |
1 |
|
|
16 |
350-0091
|
Pump Gasket 4 Hole Round |
1 |
|
|
17 |
350-1130
|
Transfer Hose 1 inch Reinforced (PER FT) |
1 |
|
|
18 |
350-0098
|
Slip Joint Nut O-Ring Gasket Buna |
1 |
|
|
19 |
350-0096
|
Slip Joint Nut 1 1/2 x 1 1/4 |
1 |
|
|
21 |
350-0381
|
Door Switch Bracket (8-08) |
1 |
|
|
22 |
350-0383
|
Door Switch Actuator CMA-180T (1-10) |
1 |
|
|
23 |
350-0391
|
Door Spring - Heavy Duty |
2 |
|
|
24 |
350-0058
|
Pump Assy Scullery and 180T & CWS |
1 |
(includes 14-16) |
|
