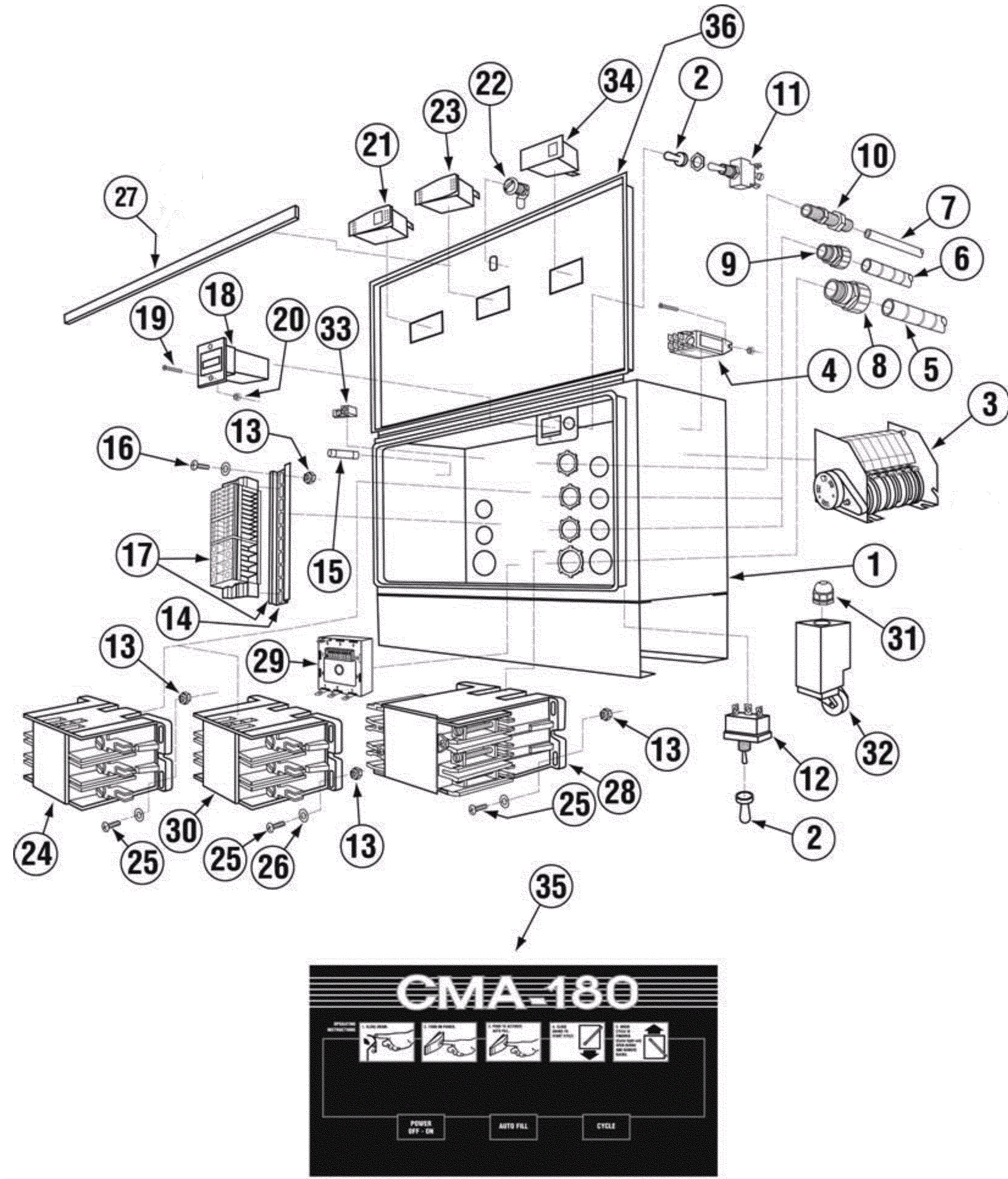

MODEL CMA 180 VL 480 Control Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1911 CMA-180 Control Box (Fabricated) $421.38 1 usually ships 3-16 days
2 350-0323 Toggle Switch Rubber Boot $3.98 2 ships same day
3a 350-0222 CMA-180-VL Timer Assy $315.81 1 (includes timer motor and microswitch) usually ships 1-5 days
3b 350-0338 Timer Motor Assy 90 Sec 220V/60Hz $93.02 1 usually ships 3-16 days
4 350-0445 Ice Cube Relay 220V 12 Amp $24.46 1 usually ships 3-16 days
5 350-0186 Conduit 3/4 Sealtite $2.82 6ft usually ships 1-5 days
6 350-0185 Conduit 1/2 Sealtite $3.30 6ft usually ships 1-5 days
7 350-0184 Conduit 3/8 Sealtite $2.10 2ft usually ships 1-5 days
8 350-0188 St-3/4 Straight Connector $5.76 1 usually ships 1-5 days
10 350-0187 St-3/8 Straight Connector $5.00 1 usually ships 1-5 days
11 350-0330 Toggle Switch DPDT 20 Amp/Delimer $21.27 1 usually ships 3-16 days
12 350-1182 Toggle Switch (Momentary) Screw Term $15.21 1 usually ships 3-16 days
13 350-1208 10-32 Lock Nut $0.90 8 usually ships 3-16 days
14 350-1892 CMA-180 Mounting Rail $5.04 1 usually ships 3-16 days
15 350-1444 Fuse 3 Amp 250V Slow Blow $2.95 1 usually ships 3-16 days
16 350-0605 10-32 x 5/8 Panhead Screw $0.90 2 usually ships 3-16 days
17a 350-1896 CMA-180 Terminal Block Assy $115.08 1 usually ships 3-16 days
17b 350-1891 CMA-180 30 Amp Term Block-Red $3.24 2 usually ships 3-16 days
17c 350-1890 CMA-180 60 Amp Term Block-Black $5.60 3 usually ships 3-16 days
17d 350-1889 CMA-180 85 Amp Term Block-Natural $18.05 4 usually ships 3-16 days
17e 350-1894 CMA-180 30 Amp Term Block-Blue $4.26 2 usually ships 3-16 days
17f 350-1895 CMA-180 30 Amp Term Block-Natural $4.20 2 usually ships 3-16 days
17g 350-1893 CMA-180 60 Amp Term Block-Green $5.60 1 usually ships 3-16 days
18 350-1171 Counter - Face Mount 220V/50Hz $46.78 1 usually ships 3-16 days
19 350-0570 8-32 x 1/2 Panhead Screw $0.90 4 ships same day
20 350-0591 8-32 Nylon Lock Nut $0.90 4 usually ships 3-16 days
21 350-0259 Power Switch Red 250V $43.90 1 usually ships 3-16 days
22 350-0308 Lock - Keyless $15.44 1 usually ships 3-16 days
23 350-0258 Rocker Switch Auto Fill $22.66 1 usually ships 3-16 days
24a 350-0196 Contactor 208/240V 20 Amp DP $98.38 1 usually ships 3-16 days
24b 350-1393 Contactor 30 Amp CMA-180 $128.45 1 usually ships 3-16 days
25 350-1662 8-32 x 1 Panhead Screw $0.90 6 usually ships 3-16 days
26 350-1279 #10 Brass Washer $0.10 6 usually ships 3-16 days
27a 350-1908 Control Box Sponge (18 inch) $3.52 2 usually ships 3-16 days
27b 350-1909 Control Box Sponge (9.5 inch) $2.70 2 usually ships 3-16 days
28 350-1390 Contactor 75 Amp 3 Pole $618.09 1 (only for machines with booster heater) usually ships 3-16 days
29 350-1480 Dip Switch Timer 230 V $107.96 1 usually ships 3-16 days
30 350-1393 Contactor 30 Amp CMA-180 $128.45 1 usually ships 3-16 days
31 350-0379 Connector-#562 Door Roller Switch $6.03 1 usually ships 3-16 days
32 350-0374 Roller Door Switch $100.52 1 ships same day
33 350-1496 Ground Block $2.48 1 usually ships 3-16 days
34 350-0255 Illuminated Plug CMA-180/44 P $14.82 1 usually ships 3-16 days
36 350-1910 CMA-180 Control Box Lid (Fabricated) $142.00 1 usually ships 3-16 days
