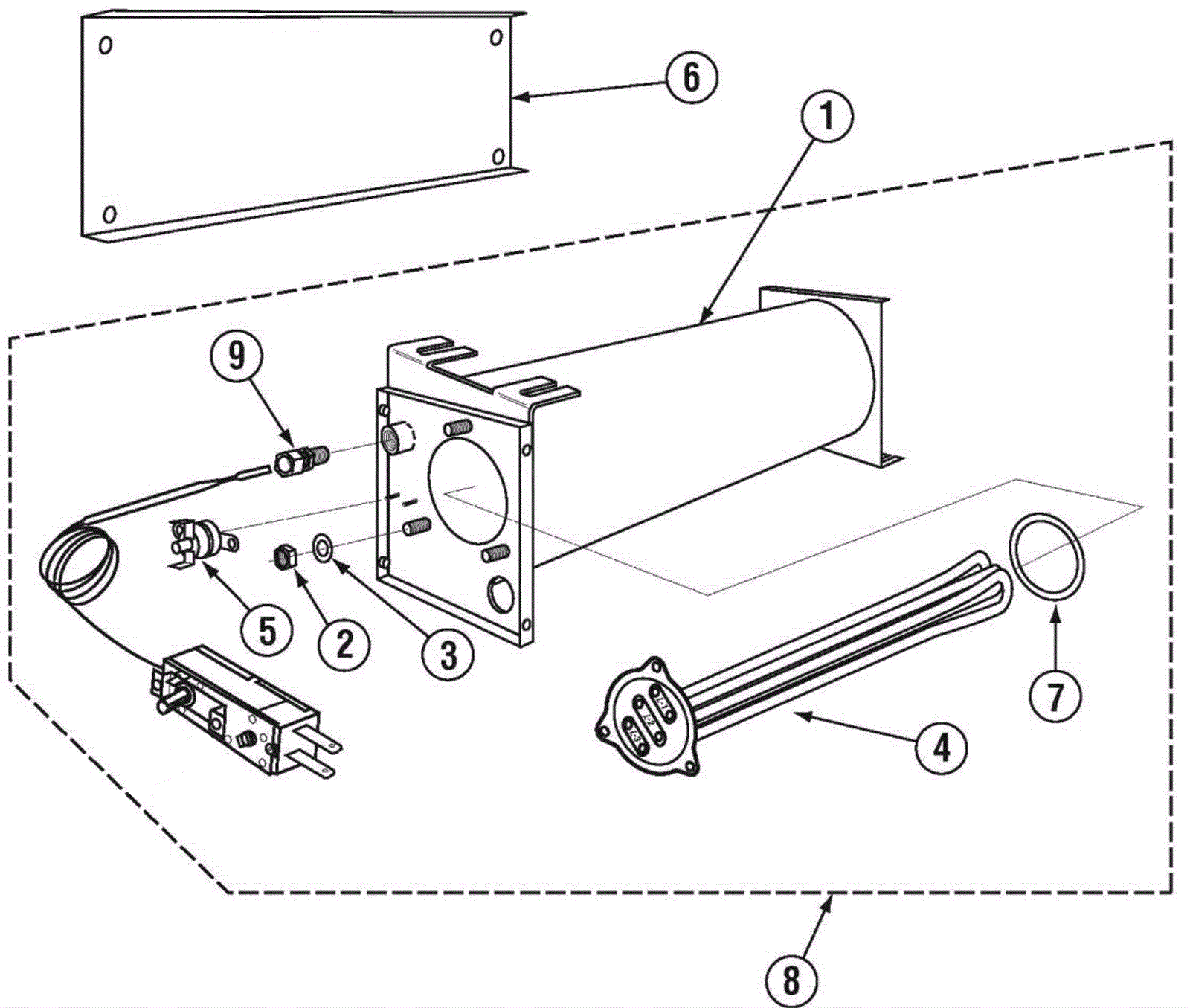

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1959
|
CMA-180 Booster Tank (3 Studs) |
1 |
|
|
2 |
350-1655
|
5/16-18 Nylon Insert Lock Nut |
3 |
|
|
3 |
350-0590
|
5/16 SS Washer |
3 |
|
|
4a |
350-1484
|
Immersion Heater 240V/12kW T-Flange |
1 |
|
|
4b |
350-1486
|
Immersion Heater 12kW 480V T-Flange |
1 |
|
|
4b |
350-1475
|
Heater Thermostat |
1 |
|
|
5 |
350-1943
|
Hi Limit Switch 250 Deg |
1 |
|
|
6 |
350-1940
|
CMA-180 Booster Heater Shield |
1 |
|
|
7 |
350-1817
|
Red Silicone Heater Gasket |
1 |
|
|
8 |
350-1966
|
Booster Tank Assy 220V |
1 |
|
|
9 |
350-2046
|
1/4 Comp x 1/4 MIP Fitting |
1 |
|
|
