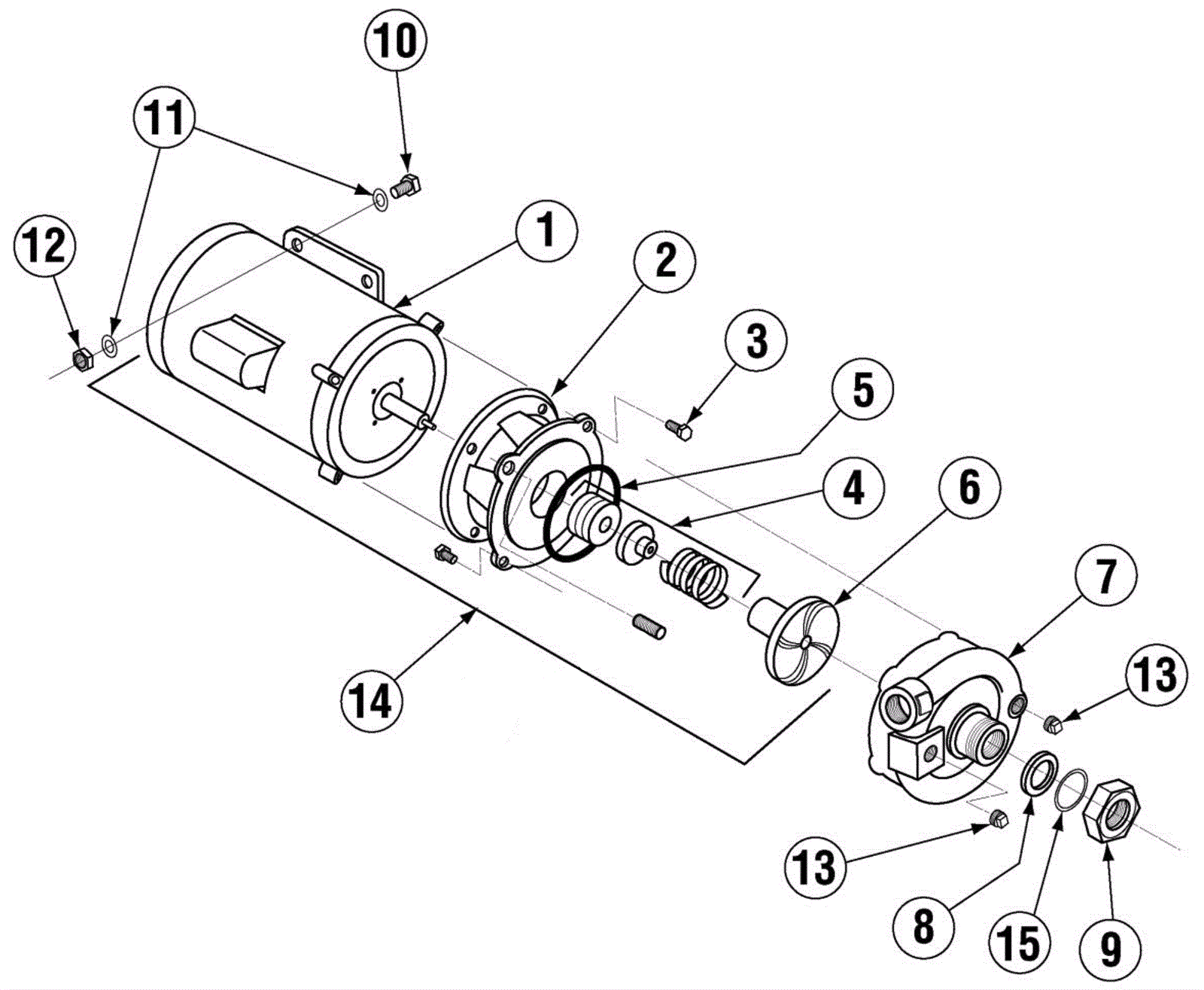

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
350-0072
|
Wash Motor 1 Hp 115/208-230V 60Hz |
1 |
|
|
1b |
350-0083
|
Wash Motor 1 Hp 3pH 220/460V 60Hz |
1 |
|
|
2 |
350-1247
|
Pump Base Stainless Steel |
1 |
|
|
3a |
350-0584
|
3/8-16 x 3/4 SS Hexhead Bolt |
6 |
|
|
3b |
350-0616
|
3/8-16 x 1 1/2 SS Stud |
2 |
|
|
4 |
350-0093
|
Pump Seal Kit (11/07) |
1 |
|
|
5 |
350-1162
|
Pump O-Ring Gasket |
1 |
|
|
6 |
350-1154
|
Impeller (Open) SS |
1 |
|
|
7 |
350-1248
|
Pump Cover Stainless Steel |
1 |
|
|
8 |
350-0098
|
Slip Joint Nut O-Ring Gasket Buna |
1 |
|
|
9 |
350-1245
|
Compression Nut 2.5 inch |
1 |
|
|
10 |
350-0562
|
1/4-20 x 1/2 Hexhead Bolt |
2 |
|
|
11 |
350-0589
|
1/4 SS Washer |
2 |
|
|
12 |
350-0573
|
1/4-20 Nylon Lock Nut |
2 |
|
|
13 |
350-0108
|
3/8 Male Plug - Sq Head |
2 |
|
|
14 |
350-0057
|
Pump Assy 115/220V 60Hz (Open) |
1 |
(includes 1-6) |
|
15 |
350-0097
|
Slip Joint Nut Friction Ring Plastic |
1 |
|
|
