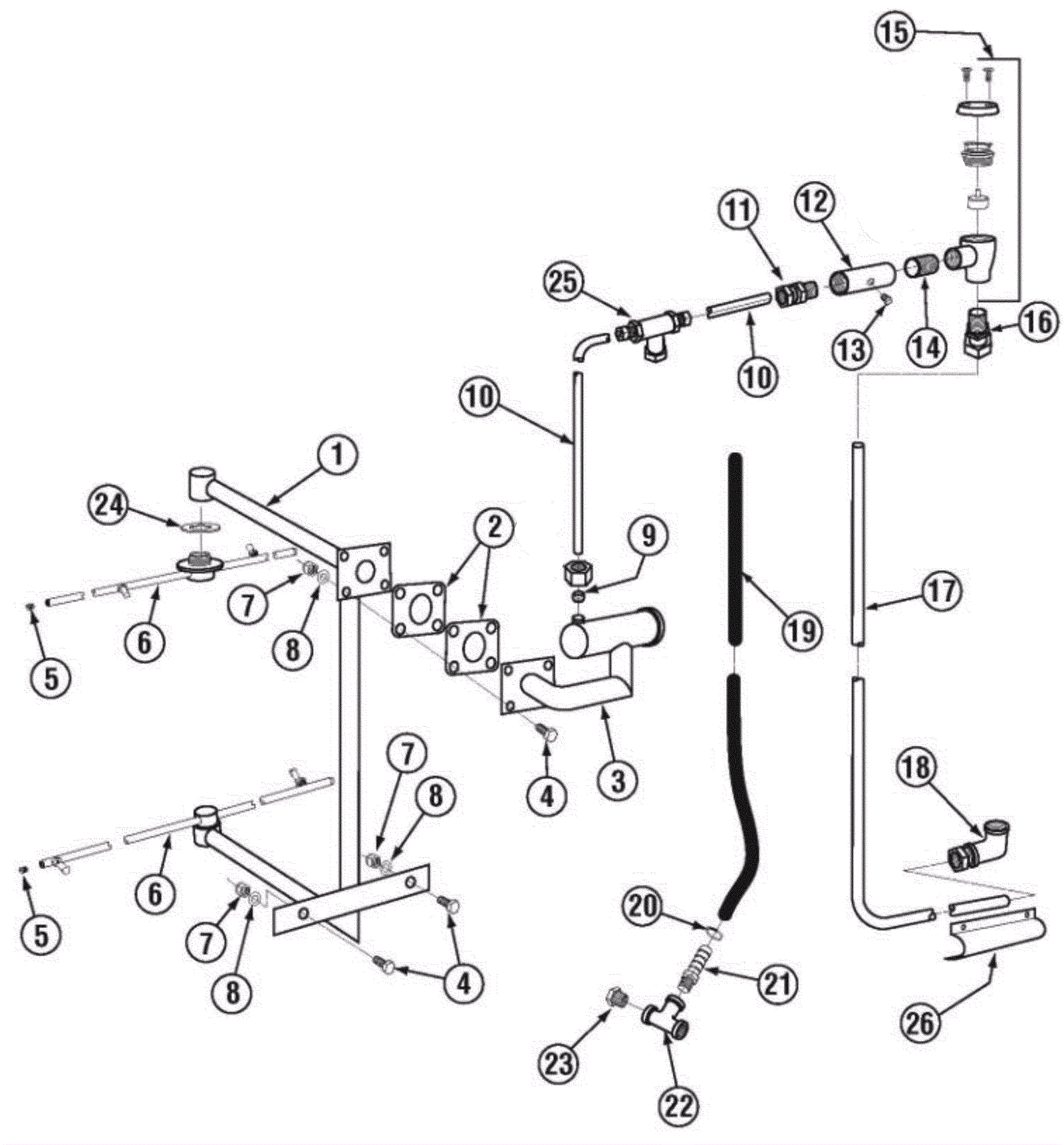

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-1897
|
CMA-180 Final Rinse Manifold |
1 |
|
|
2 |
350-1254
|
Red Silicone Gasket CMA-180 |
2 |
|
|
3 |
350-1607
|
CMA-180-VL Final Rinse Pipe Ass'y |
1 |
|
|
4 |
350-0575
|
1/4-20 x 3/4 Hexhead Bolt |
6 |
|
|
5 |
350-0152
|
Rinse Arm SS End Plug (CMA-180) |
4 |
|
|
6 |
350-0140
|
Rinse Arm w/Bearings (CMA-180 & 180UC) |
2 |
|
|
7 |
350-0573
|
1/4-20 Nylon Lock Nut |
6 |
|
|
8 |
350-0589
|
1/4 SS Washer |
6 |
|
|
9 |
350-1605
|
3/8 Compression Fitting Sleeve |
1 |
|
|
10 |
350-1305
|
CMA-180 Tubing Final Rinse Plumbing |
1 |
|
|
11a |
350-0296
|
3/8 inch Comp x 1/2 inch MIP Fitting |
1 |
|
|
11b |
350-1604
|
3/8 Compression Fitting Nut |
1 |
|
|
12 |
350-1634
|
Mixing Chamber SS CMA 180UC |
1 |
|
|
13 |
350-1164
|
1/8 Male Plug |
1 |
|
|
14 |
350-1621
|
Nipple SS 1/2 x Close |
1 |
|
|
15a |
350-1202
|
Vacuum Breaker 1/2 inch |
1 |
|
|
15b |
350-1201
|
1/2 Vac Breaker Repair Kit Watts |
1 |
|
|
15c |
350-1203
|
1/2 Vac Breaker Bonnet Brass Watt |
1 |
|
|
15d |
350-0485
|
3/4 Vac Breaker Cap SS |
1 |
|
|
15e |
350-0254
|
6-32 x 1/4 SS Panhead Screw |
1 |
|
|
16 |
350-0499
|
5/8 Comp x 1/2 MIP Adapter |
1 |
|
|
17 |
350-1608
|
CMA-180-VL Rinse Plumbing Line SS |
1 |
|
|
18 |
350-0491
|
1/2 90Deg Street Elbow |
1 |
|
|
19 |
350-1122
|
Ribbed Drain Hose 1 1/2 inch ID |
1 |
|
|
20 |
350-1119
|
Hose Clamp #4 Size #002 SS |
1 |
|
|
21 |
350-2036
|
1/2MPT x 1/2 Hose Barb Straight |
1 |
|
|
22 |
350-1623
|
Tee 1/2 F x F x F SS |
1 |
|
|
23 |
350-1629
|
1/2 inch MIP Plug Brass Sq. Head |
1 |
|
|
24 |
350-1254
|
Red Silicone Gasket CMA-180 |
1 |
|
|
25 |
350-2239
|
180VL F.R. Thermometer Fitting |
1 |
|
|
26 |
350-2240
|
Conduit Heat Shield |
1 |
|
|
