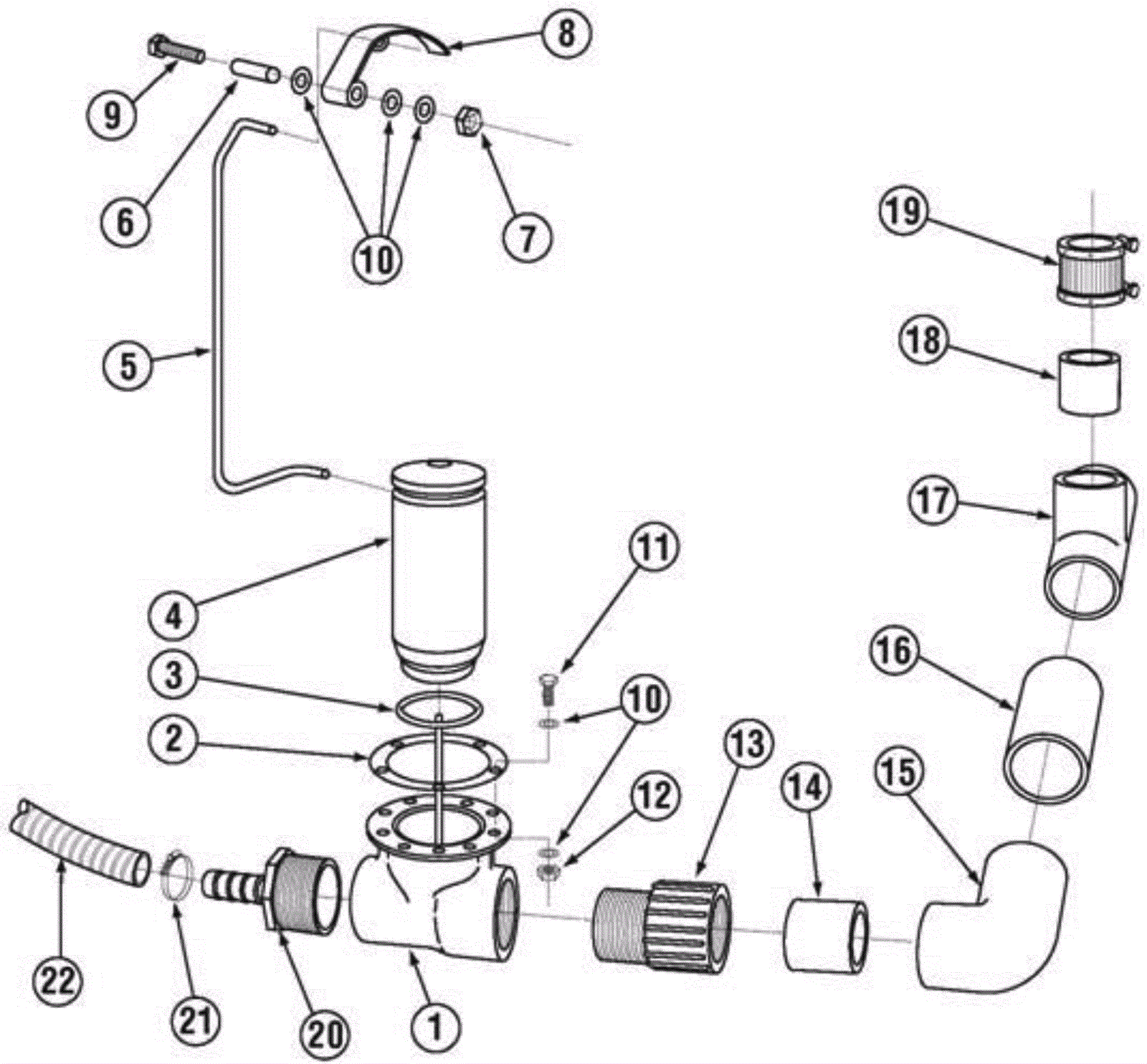

MODEL CMA 180 VL 480 Drain System Assembly - Ventless

#PartDescriptionPriceReqNotesAvailability
1 350-0028 CMA-180 Drain Tee Casting $197.96 1 usually ships 1-5 days
2 350-0030 Drain Tee Gasket $6.19 1 ships same day
3 350-0039 CMA-180 Drain Stopper O-Ring $8.37 1 usually ships 3-16 days
4 350-0038 CMA-180 Drain Stopper W/ inchO inch ring $81.21 1 (includes item 3) usually ships 3-16 days
5 350-1971 CMA-180 Drain Linkage $30.30 1 usually ships 3-16 days
6 350-1970 CMA-180 Drain Linkage Spacer $0.90 1 usually ships 3-16 days
7 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
8 350-1969 CMA-180 Drain Lever $48.77 1 usually ships 3-16 days
9 350-0569 1/4-20 x 1 1/2 SS Hexhead Bolt $0.90 1 usually ships 3-16 days
10 350-0590 5/16 SS Washer $0.90 16 ships same day
11 350-0557 5/16-18 x 1 Hexhead Bolt $1.07 6 ships same day
12 350-1655 5/16-18 Nylon Insert Lock Nut $0.90 6 usually ships 7-10 days
13 350-0675 2 inch ABS SLIP x MIPT Adapter $6.79 1 usually ships 3-16 days
14 350-1314 2 inch x 4 inch  PVC Tubing $6.95 1 usually ships 3-16 days
15 350-0673 2 inch ABS SLIP x SLIP 90 Ell $24.00 1 usually ships 3-16 days
16 350-1319 2 inch x 6 inch PVC Tubing $5.20 1 usually ships 3-16 days
17 350-0680 2 inch ABS Tee S x S x S $10.34 1 usually ships 3-16 days
18 350-1313 2 inch x 3 inch PVC Tubing $8.66 1 usually ships 3-16 days
19 350-0677 CMA-180 2 inch No Hub $11.56 1 usually ships 3-16 days
21 350-1118 Hose Clamp Size #16  1 inch $2.60 1 usually ships 3-16 days
22 350-1830 Drain Hose with Goose Neck (9-06) $40.65 1 usually ships 3-16 days
