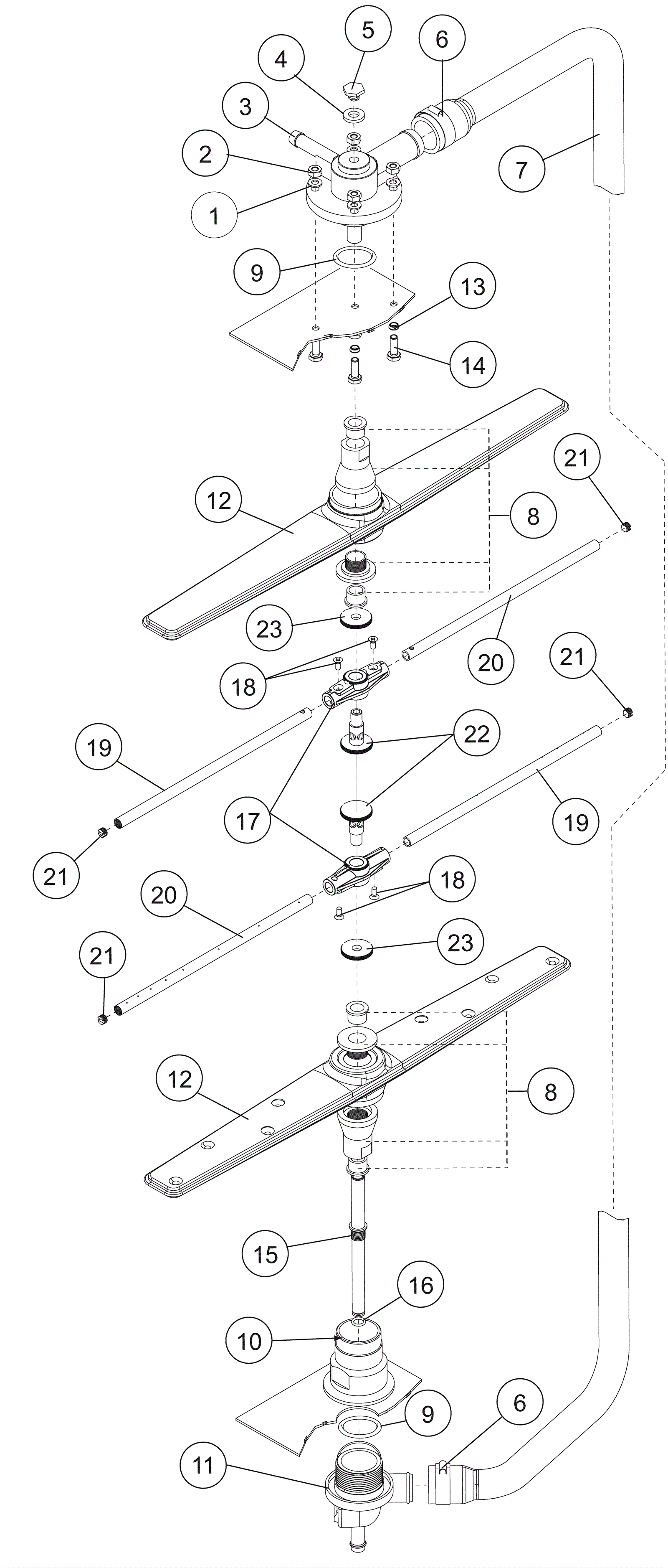

Model UC65E M2 Wash and Rinse Spray Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0279 Y Hose Connector 3/16 Single Rib $5.64 4 usually ships 3-16 days
2 350-0573 1/4-20 Nylon Lock Nut $0.90 4 ships same day
3 350-1007 Hub Upper Wash Arm $53.98 1 usually ships 3-16 days
4 350-1008 Washer Packing $7.22 1 usually ships 3-16 days
5 350-1009 Screw Retaining $4.44 1 usually ships 3-16 days
6 350-2111 Hose Clamp #28 SS $2.60 2 usually ships 1-5 days
7 350-1010 Hose Upper Wash Arm $21.22 1 usually ships 3-16 days
8 350-1011 UC 65e Bearing Assembly $65.84 2 (includes 2 bearings, 1 locknut and 1 wash arm hub) (parts included are not available separately) usually ships 3-16 days
9 350-1012 O-Ring 2-1/8 OD x 1-3/4 ID x 3/16 $7.88 2 usually ships 3-16 days
10 350-1013 Hub Lower Wash Arm $163.60 1 usually ships 3-16 days
11 350-1015 UC 65e Wash Arm Assy (Inc 2103.82) $281.27 1 usually ships 3-16 days
12 350-1015 UC 65e Wash Arm Assy (Inc 2103.82) $281.27 2 usually ships 3-16 days
13 350-1016 Washer Nylite $2.30 4 usually ships 3-16 days
15 350-1017 Shaft Lower $36.84 1 usually ships 3-16 days
16 350-1018 O-Ring $8.76 1 usually ships 3-16 days
17 350-1019 UC 65e Hub Rinse Arm Molded $44.73 2 ships same day
18 350-1020 UC 65e Screw Truss Slotted 8-32 x 1/4 $1.60 4 ships same day
19 350-1021 UC 65e Arm Right-Hand Rinse (7 Jets) $35.85 2 usually ships 3-16 days
20 350-1022 UC 65e Arm Left-Hand Rinse (8 Jets) $35.82 2 usually ships 3-16 days
21 350-1023 UC 65e Cap Rinse Arm 5/16-24 $5.22 4 ships same day
22 350-1024 UC 65e Spindle Rinse Arm $46.34 2 usually ships 3-16 days
23 350-1025 UC 65e Spacer Nut $15.84 2 usually ships 3-16 days
KIT1 350-1026 Rinse Arm Assy (Inc 2103.92-2103.98) $208.92 2 (includes 18-23) usually ships 3-16 days
