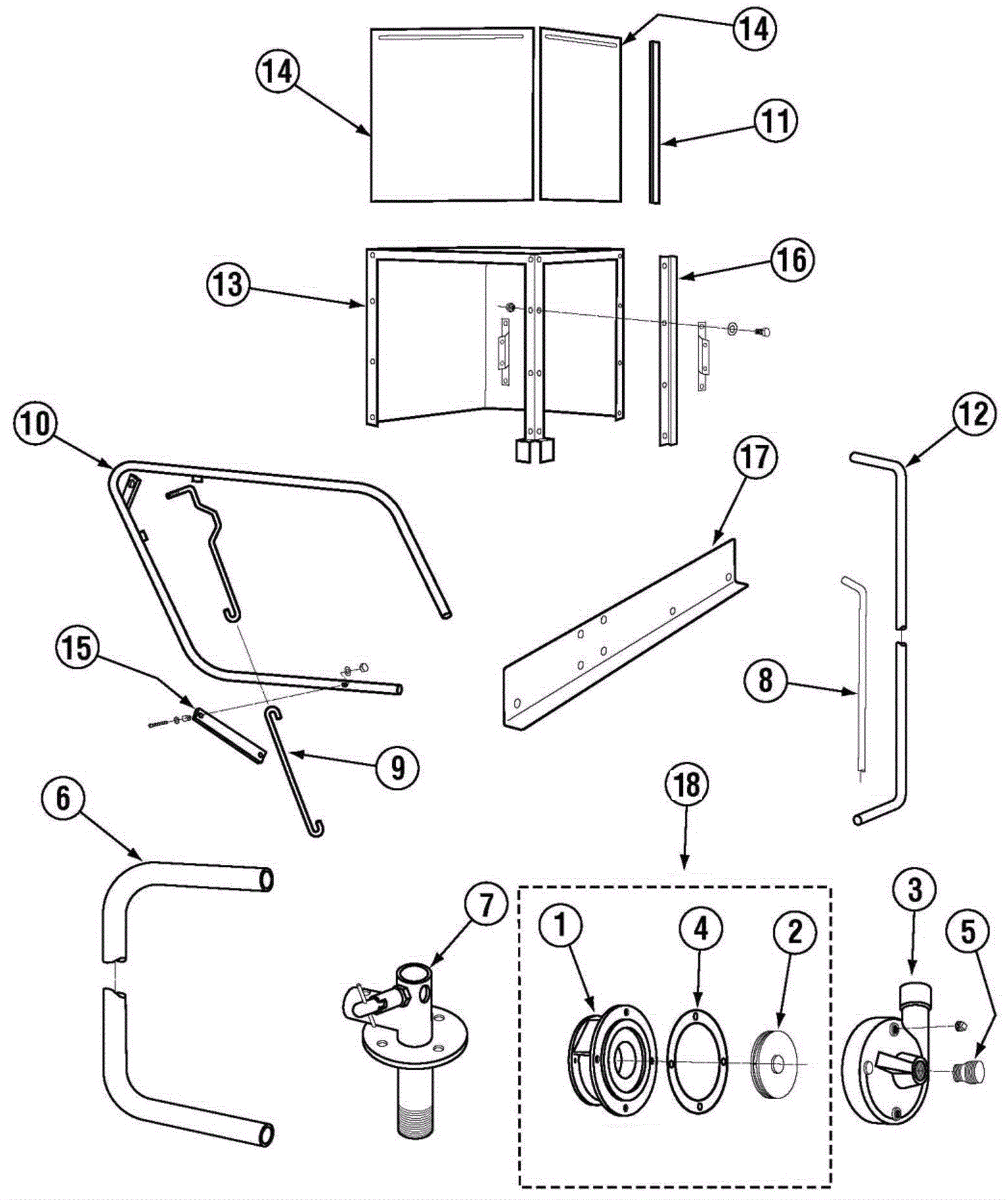

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
350-0086
|
Pump Base |
1 |
|
|
2 |
350-0088
|
Impeller Closed 4 1/2 inch |
1 |
|
|
3 |
350-0090
|
Pump Cover Large |
1 |
|
|
4 |
350-0091
|
Pump Gasket 4 Hole Round |
1 |
|
|
5 |
350-0099
|
1 1/2 inch x 1 1/4 inch Adapter |
1 |
|
|
7 |
350-0183
|
Lower Spray Base Lp Short Assy |
1 |
|
|
9 |
350-0400
|
Door Extension Link Scull C |
1 |
|
|
10 |
350-0427
|
Door Handle (Scull C) |
1 |
|
|
11 |
350-0453
|
EZ Glide Door Guide 32 1/4 inch |
4 |
|
|
13 |
350-0686
|
Wrapper (Scullery C) |
1 |
|
|
14 |
350-0722
|
Door (Scullery) |
2 |
|
|
15 |
350-0783
|
Door Handle Link (S) 10 1/4 inch |
2 |
|
|
16 |
350-0791
|
EZ Glide Door Guide SS 31.3/8 inch |
4 |
|
|
18 |
350-0058
|
Pump Assy Scullery and 180T & CWS |
1 |
(includes 1-2 and 4) |
|
