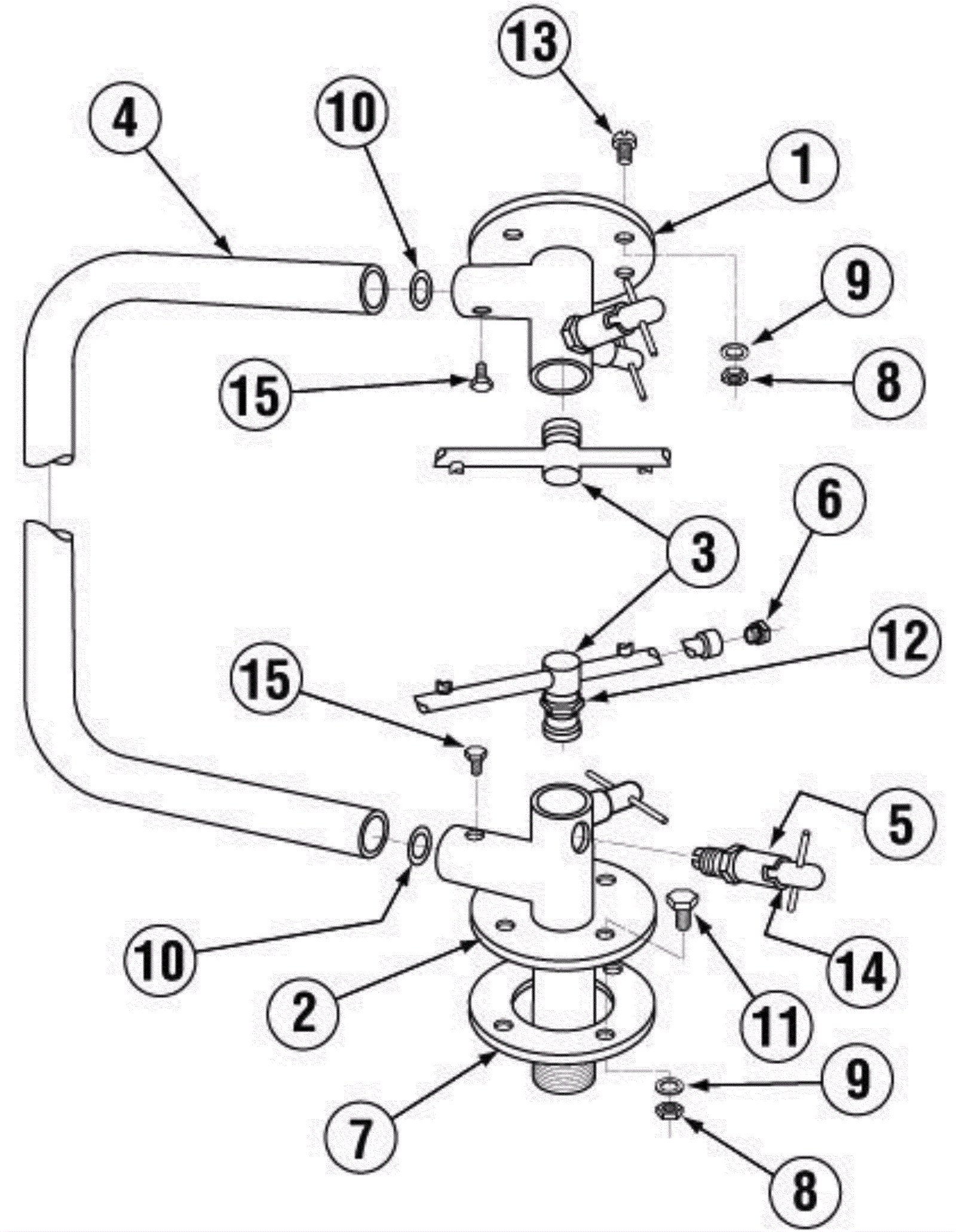

SCULLERY S-AH Spray Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0174 Upper Spray Base $114.68 1 usually ships 1-5 days
2 350-0171 Lower Spray Base $189.82 1 usually ships 3-16 days
3a 350-0136 Spray Arm AH/C) $128.65 2 usually ships 3-16 days
3b 350-0135 Spray Arm Short (B/L-1X/L-1X-16) $148.75 2 usually ships 3-16 days
4 350-0131 Manifold O-Ring-Style (AH) $108.87 1 usually ships 1-5 days
5 350-0176 Spray Base Pull Lock Pin $38.41 4 ships same day
6 350-0155 Spray Arm End Plug SS $5.02 4 usually ships 3-16 days
7 350-0124 Spray Base Gasket $2.54 1 ships same day
8 350-0573 1/4-20 Nylon Lock Nut $0.90 8 ships same day
9 350-0589 1/4 SS Washer $0.90 16 usually ships 3-16 days
10 350-0126 Spray Base O-Ring OD 1.25 ID 1.11 $0.90 2 usually ships 1-5 days
11 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 4 usually ships 3-16 days
12 350-0160 Spray Arm Bearing $47.12 2 ships same day
13 350-2161 1/4-20 X 3/4 inch trusshead bolt $0.90 4 usually ships 3-16 days
14 350-0177 Lock Pin Spring $1.68 1 usually ships 1-5 days
15 350-2162 10-32 x 1/4 inch hexhead bolt Call for price 2 usually ships 3-16 days
