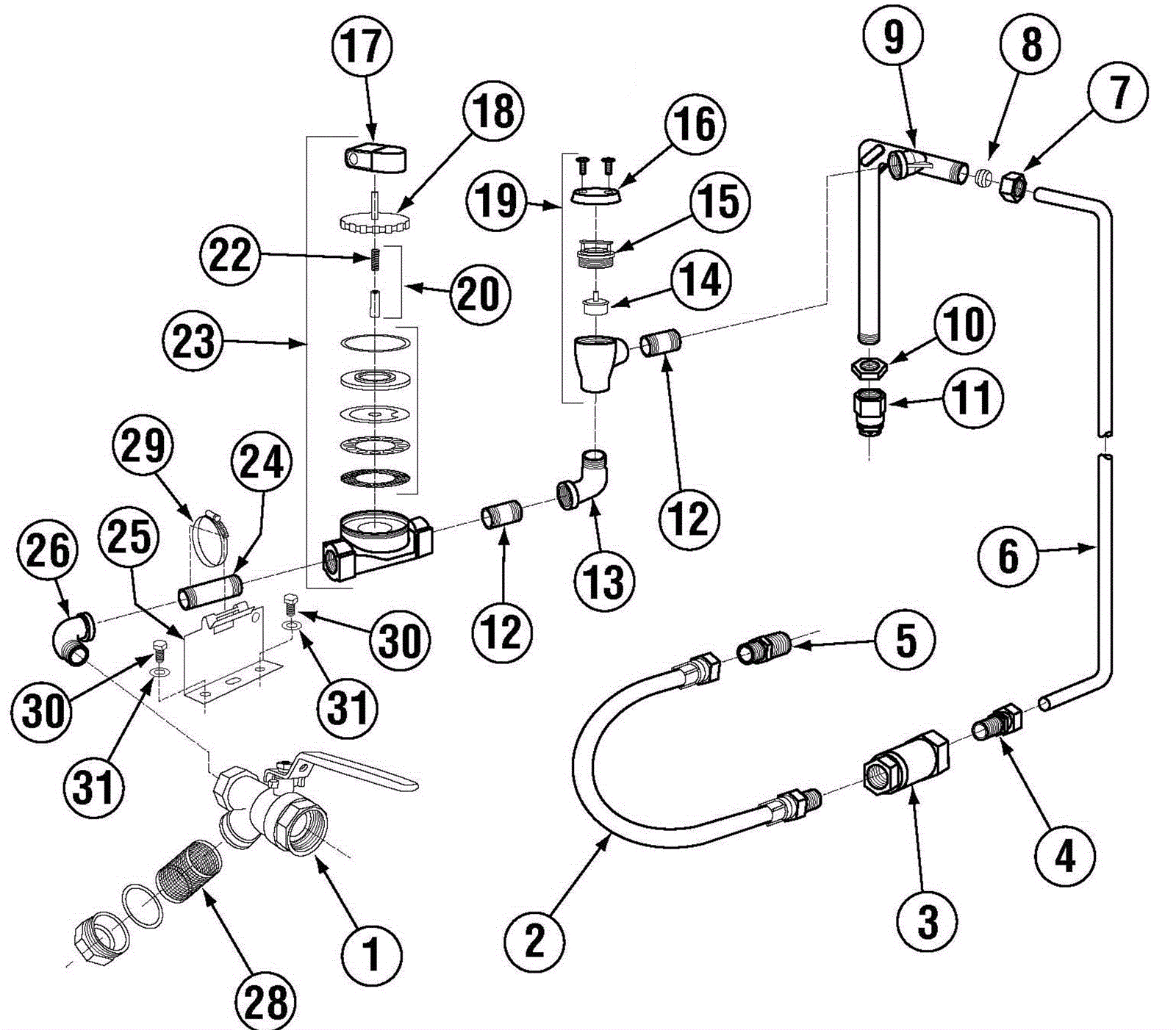

MODEL AH Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-1411 3/4 Strainer Ball Valve NPT $77.94 1 usually ships 3-16 days
2 350-2225 1/2 x 2 1/2 braided hose $34.67 1 ships same day
3 350-0471 1/2 Ball Check Valve $39.67 1 usually ships 3-16 days
4 350-0499 5/8 Comp x 1/2 MIP Adapter $10.29 1 usually ships 3-16 days
5 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
6 350-0510 Flush Tube (A/AH) $41.48 1 usually ships 3-16 days
7 350-0504 5/8 Compression Fitting Nut $4.70 1 usually ships 3-16 days
8 350-0505 5/8 Compression Fitting Ring $1.30 1 usually ships 3-16 days
9 350-0503 Water Inlet Elbow Ass'y (01-08) $63.17 1 usually ships 3-16 days
10 350-0475 1/2 Jamb Nut Thin Pattern $7.24 2 usually ships 3-16 days
11 350-0496 Sprinkler Head Assembly 1/2 inch NPT $10.06 1 usually ships 3-16 days
12 350-2159 3/4 X 1 1/2 inch nipple Call for price 2 usually ships 3-16 days
13 350-0459 Street Elbow 3/4 inch 90Deg $25.65 2 usually ships 3-16 days
14 350-0481 3/4 Vac Breaker Rep Kit Watts $25.67 1 ships same day
15 350-0482 3/4 Vac Breaker Brass Bonnet Watts $27.97 1 ships same day
16 350-0485 3/4 Vac Breaker Cap SS $11.83 1 (includes screws) usually ships 3-16 days
17 350-0483 Solenoid Coil JE 115V (3/4 &1/2) $67.49 1 usually ships 3-16 days
18 350-0464 3/4 Water Solenoid Valve Bonnet $92.55 1 usually ships 3-16 days
19 350-0468 Vacuum Breaker-Watts 3/4 inch $101.88 1 usually ships 3-16 days
20 350-0508 Water Sol Plunger 'G' JE 3/4 &1/2 $14.87 1 usually ships 3-16 days
22 350-2160 3/4 inch solenoid plunger spring Call for price 1 usually ships 3-16 days
23 350-0461 3/4 Water Sol Valve-JE 115/60Hz $287.84 1 usually ships 3-16 days
24 350-0507 Nipple Brass 3/4 x 3 1/2 $11.34 1 usually ships 3-16 days
25 350-1773 Plumbing Bracket $30.06 1 usually ships 3-16 days
26 350-0459 Street Elbow 3/4 inch 90Deg $25.65 1 usually ships 3-16 days
28 350-1412 3/4 Ball Valve Strainers Only $2.06 1 usually ships 3-16 days
29 350-1119 Hose Clamp #4 Size #002 SS $1.50 1 usually ships 3-16 days
30 350-0603 10-32 x 3/8 Truss Head Screw $0.90 2 usually ships 3-16 days
31 350-1210 10-32 KEPS Lock Nut $0.18 2 usually ships 3-16 days
N/S 350-0465 3/4 Water Solenoid Repair Kit JE $118.78 1 usually ships 3-16 days
N/S 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
N/S 350-0590 5/16 SS Washer $0.90 1 ships same day
