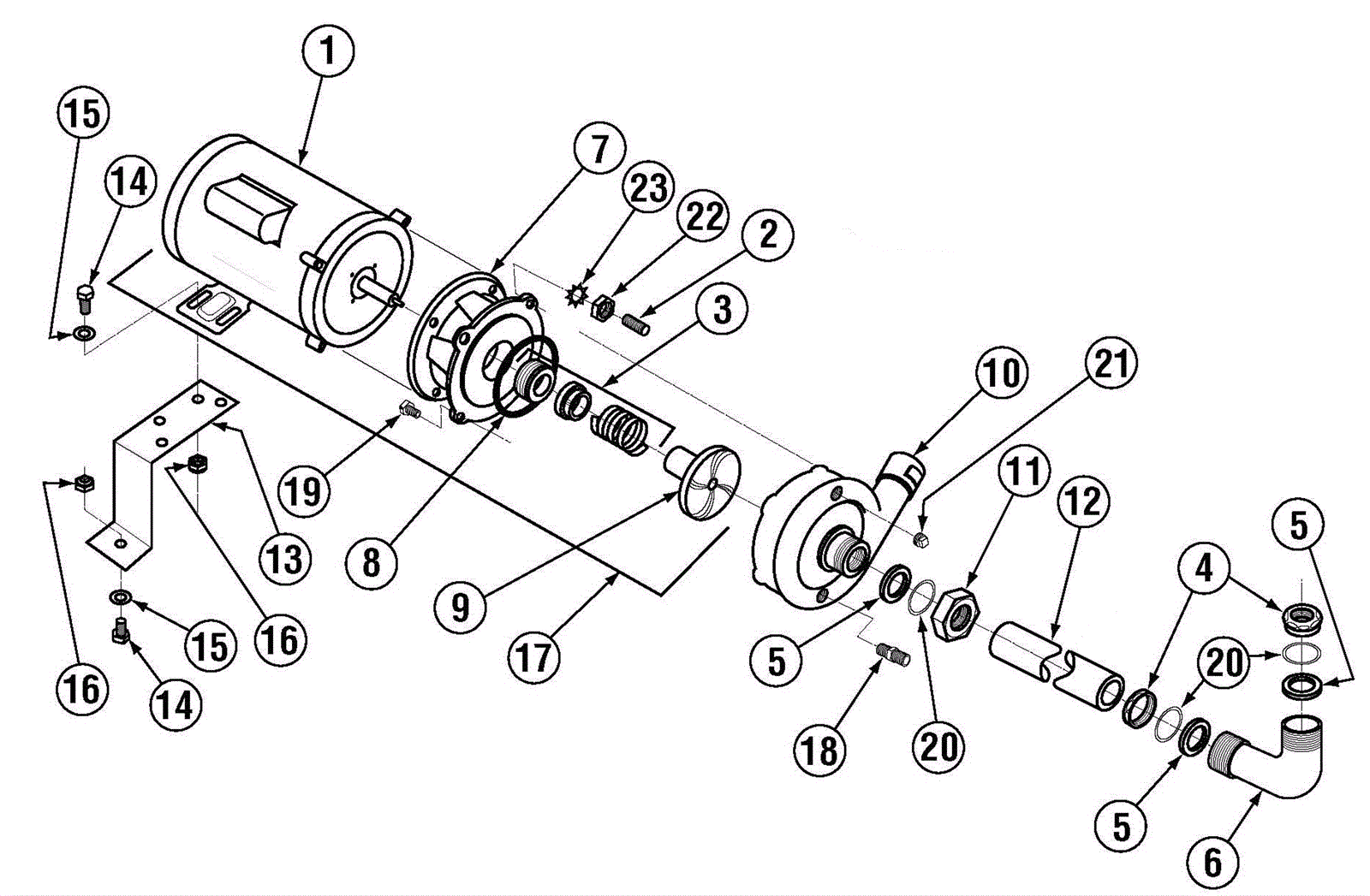

SCULLERY S-AH Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0072 Wash Motor 1 Hp 115/208-230V 60Hz $587.45 1 usually ships 3-16 days
2 350-0616 3/8-16 x 1 1/2 SS Stud $2.69 2 usually ships 3-16 days
3 350-0093 Pump Seal Kit (11/07) $27.64 1 ships same day
4 350-0096 Slip Joint Nut 1 1/2 x 1 1/4 $14.82 2 usually ships 1-5 days
5 350-0098 Slip Joint Nut O-Ring Gasket Buna $0.90 3 ships same day
6 350-0502 Pump Inlet Elbow SS - Casting $101.53 1 usually ships 3-16 days
7 350-1247 Pump Base Stainless Steel $237.18 1 usually ships 3-16 days
8 350-1162 Pump O-Ring Gasket $1.75 1 ships same day
9 350-1154 Impeller (Open) SS $149.49 1 usually ships 3-16 days
10 350-1162 Pump O-Ring Gasket $1.75 1 ships same day
11 350-1154 Impeller (Open) SS $149.49 1 usually ships 3-16 days
12a 350-0114 Motor Suction Tube SS (A/AH) $18.36 1 usually ships 1-5 days
12b 350-0116 Motor Suction Tube SS (C) $22.14 1 usually ships 1-5 days
13 350-1697 Motor Support Bracket (AH/C/B) $27.39 1 usually ships 3-16 days
14 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 1 usually ships 3-16 days
15 350-0589 1/4 SS Washer $0.90 1 usually ships 3-16 days
16 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
17 350-0057 Pump Assy 115/220V 60Hz (Open) $1,120.90 1 (includes 1, 3, 7-9) usually ships 3-16 days
18 350-0103 1/2 Comp x 3/8 MIP Adapter $8.49 1 usually ships 3-16 days
19 350-0584 3/8-16 x 3/4 SS Hexhead Bolt $1.04 6 usually ships 3-16 days
20 350-0097 Slip Joint Nut Friction Ring Plastic $3.28 3 ships same day
21 350-0108 3/8 Male Plug - Sq Head $5.02 1 usually ships 1-5 days
22 350-2157 3/8-16 inch thin nut $0.90 2 usually ships 3-16 days
23 350-1213 3/8 External Lock Star Washer $0.18 2 usually ships 3-16 days
