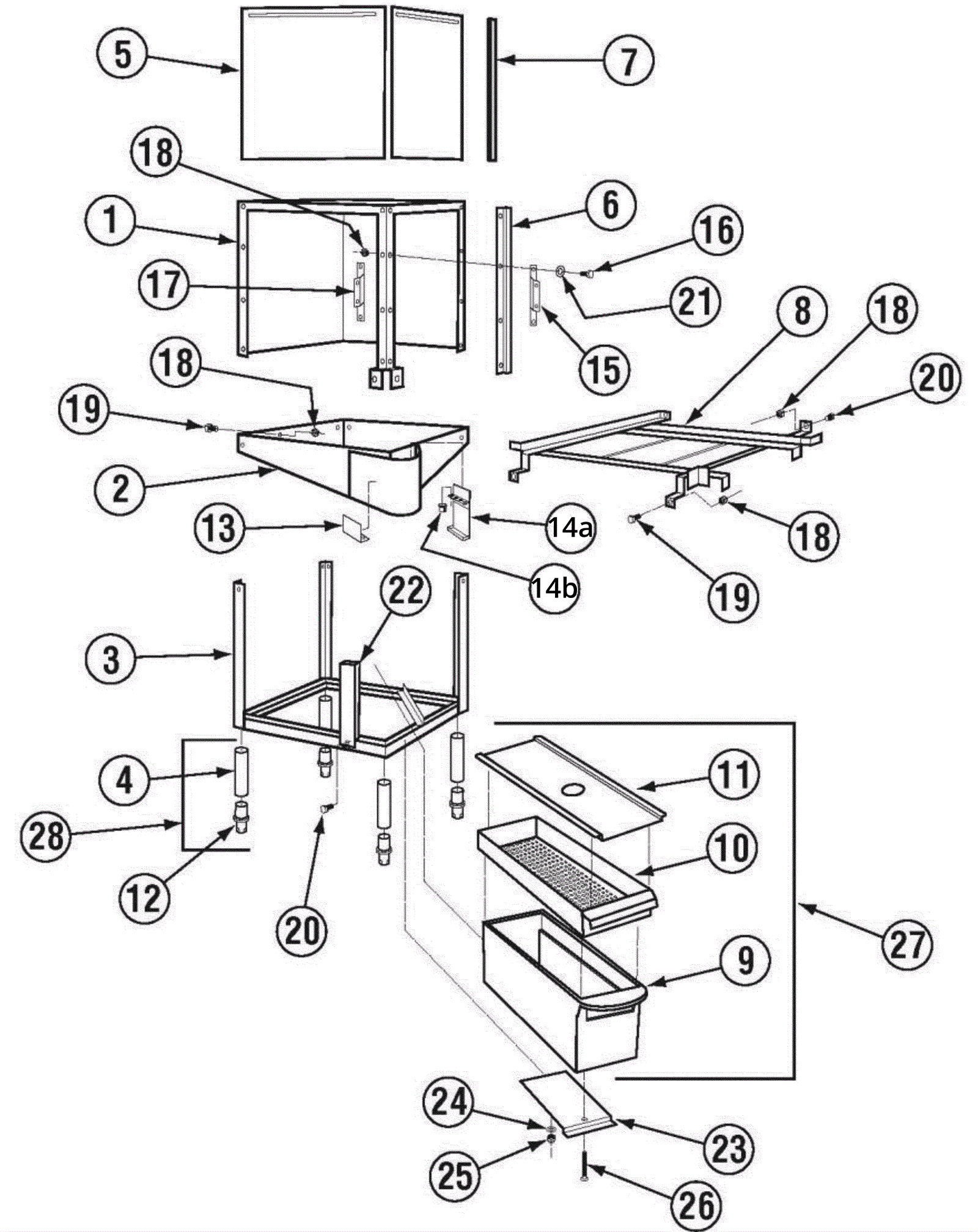

MODEL C Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1 350-0683 Wrapper Corner (C) $1,397.29 1 usually ships 3-16 days
2 350-0688 Pan (C) $1,135.57 1 usually ships 3-16 days
3 350-0769 Stand TM-C (w/o Legs) $607.04 1 usually ships 3-16 days
4 350-2149 Stainless steel leg (A, AH, C, B) $38.16 4 usually ships 3-16 days
5 350-0726 Door - Standard - CMA w/Dimple $347.30 2 usually ships 3-16 days
6 350-0790 EZ Glide Door Guide SS 21 1/8 $18.12 4 usually ships 3-16 days
7 350-0448 EZ Glide Door Guide Sq 21 7/8 inch $11.91 4 ships same day
8 350-0710 Tray Track (C) $249.91 1 usually ships 3-16 days
9 350-0806 Scrap Trap Body (Poly Pro) $138.35 1 usually ships 3-16 days
10 350-0807 Scrap Trap Drawer SS $97.52 1 ships same day
11 350-0808 Molded Scrap Trap Lid - SS $57.45 1 usually ships 3-16 days
12 350-0665 Adjustable Socket Foot $13.50 4 usually ships 3-16 days
13 350-0802 Drain Baffle $10.30 2 usually ships 3-16 days
14a 350-0796 Trough Style Chem Support Bracket $48.11 1 usually ships 3-16 days
14b 350-0796 Trough Style Chem Support Bracket $48.11 4 usually ships 3-16 days
15 350-0280 Snap Bushing 375-4 $0.90 1 usually ships 3-16 days
16 350-0561 1/4-20 x 1/2 Trusshead Bolt $0.90 16 usually ships 3-16 days
17 350-0004 Solenoid Bracket (C) LH $20.99 1 usually ships 1-5 days
18 350-0573 1/4-20 Nylon Lock Nut $0.90 34 ships same day
19 350-0576 1/4-20 x 5/8 Hexhead Bolt 304SS $0.90 12 usually ships 3-16 days
20 350-0562 1/4-20 x 1/2 Hexhead Bolt $0.90 12 usually ships 3-16 days
21 350-0589 1/4 SS Washer $0.90 68 ships same day
22 350-0801 Pan Support Bracket - C long $37.04 1 usually ships 3-16 days
23 350-0809 Molded Scrap Trap-Mount Bracket $22.44 1 usually ships 3-16 days
24 350-0589 1/4 SS Washer $0.90 1 ships same day
25 350-0573 1/4-20 Nylon Lock Nut $0.90 1 ships same day
26 350-0570 8-32 x 1/2 Panhead Screw $0.90 1 ships same day
27 350-0805 Scrap Trap Assy (Poly Pro & SS) $239.27 1 (incldues 9-11) usually ships 3-16 days
28 350-0637 Leg Assy 10 inch w\Adjustable Socket $38.16 1 (includes 4 and 12) usually ships 3-16 days
